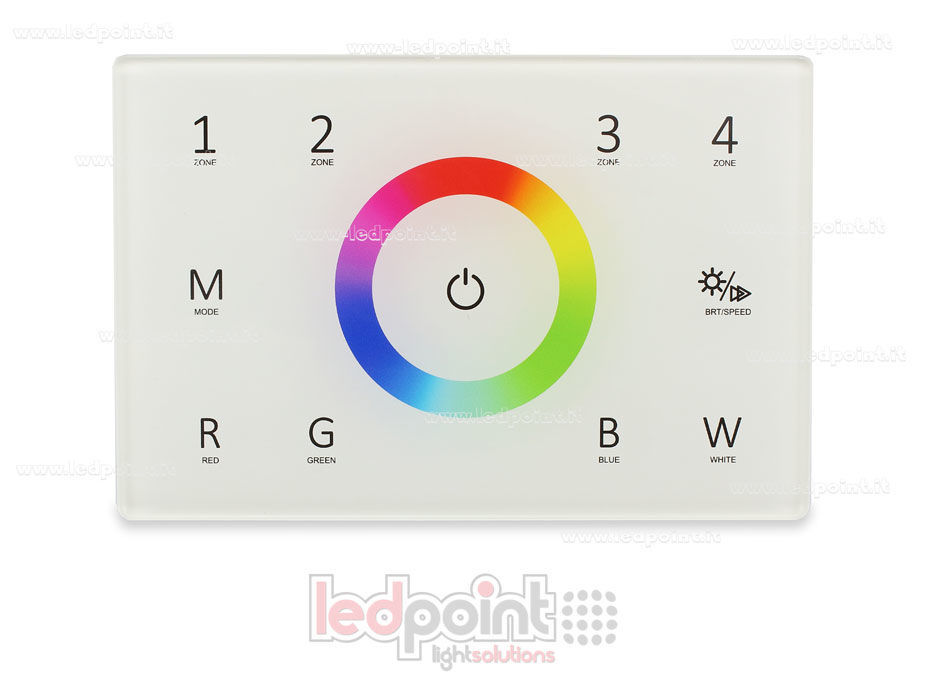

SKYDANCE SYSTEMS CATALOGUE FAQ White glass panel with 4 zones, 1-4 colors, master DMX512. It can be also used as RF 4 zones 1-4 colors remote control. If used as RF remote control, each zone can control more LED RF 2.4G receivers. Power source 110-240VAC.
For more information, please log in to the website and consult the manual, if available.
Technical parameters:
- Input signal: Touch key + RF 2.4GHz
- Output signal: DMX + RF 2.4GHz
- Input voltage: 86-265V
- Zones number: 4
- Scene number: 0
- Remote control's field of action: 30 m
- Working temperature: -30°C ~ +55°C
- Dimensions: 120x80x37 mm
- On and off are progressive, without flashing, so as not to disturb eyes
ATTENTION: Wi-Fi connection can cause interference with the controller and, as a consequence, significantly reduce its range.
The use of shielded cables is recommended when installed near to cables plugged into the mains. ATTENTION: in case of operation of the remote control with battery, the latter is not included. -W_1_LP.jpg "RGBW white 4 zones wall master remote control RF2.4G + DMX512 120*80 for box 503")
-W_2_LP.jpg "RGBW white 4 zones wall master remote control RF2.4G + DMX512 120*80 for box 503")
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
