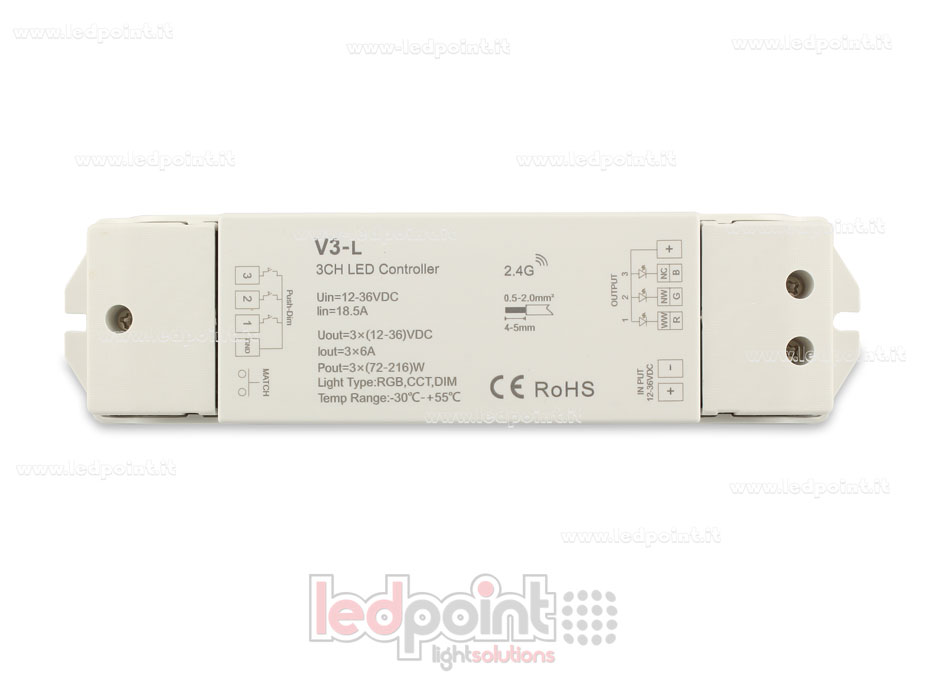

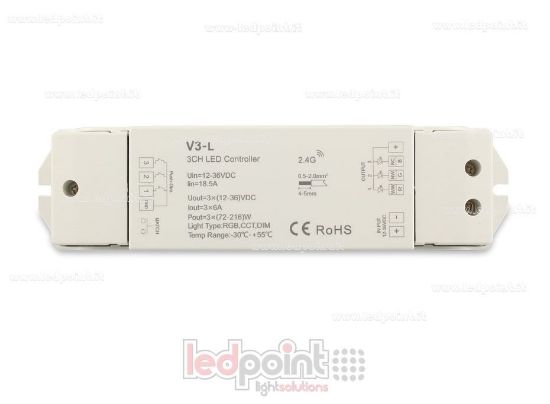

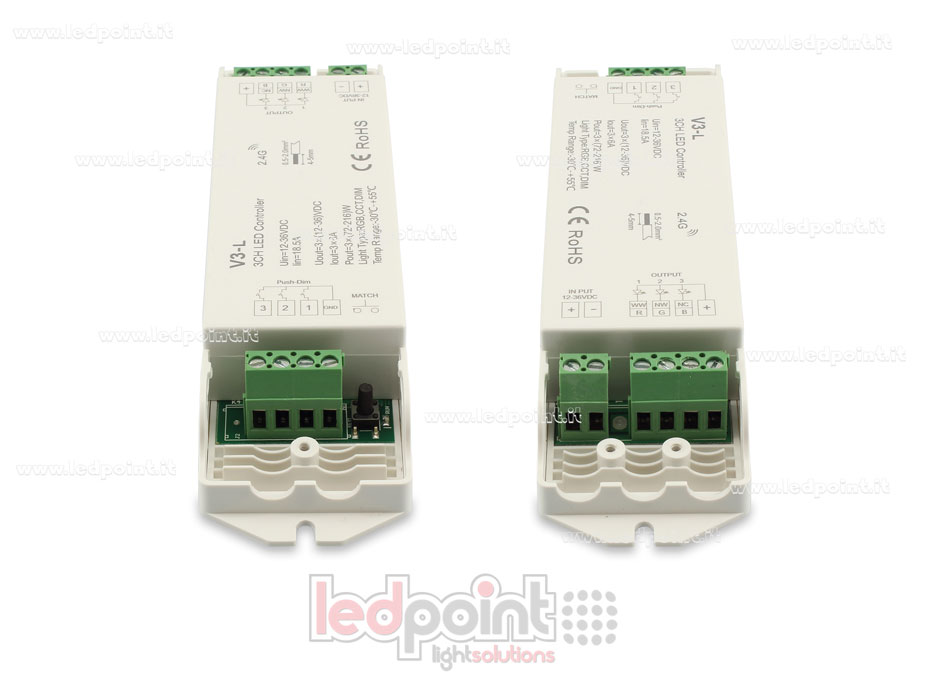

SKYDANCE SYSTEMS CATALOGUE FAQ RGB, CCT and single-colour 3 channels RF LED receiver. It can be matched to all RF single-colour, CCT and RGB remote controls (up to 10 remote controls). It is possible to connect 3 external push switches to turn on/off and dim each channel.
For more information, please log in to the website and consult the manual, if available.
Technical parameters:
- Input voltage: 12-36V
- Load current: 6A
- Channels: 3
- Max power: 216-648W
- Max total output: 18A
- Input signal: RF 2.4GHz + Push Dim
- Output signal: CV PWM
- Connector: terminal block
- Working temperature: -30°C ~ +55°C
- Dimensions: 175x45x27 mm
ATTENTION: Wi-Fi connection can cause interference with the controller and, as a consequence, significantly reduce its range.
The use of shielded cables is recommended when installed near to cables plugged into the mains.
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
