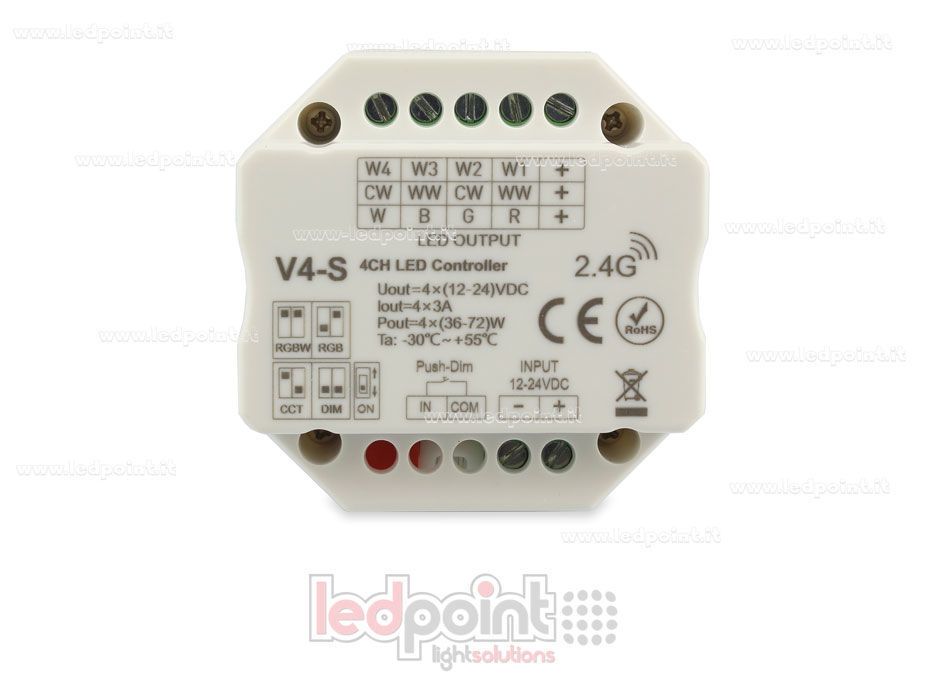

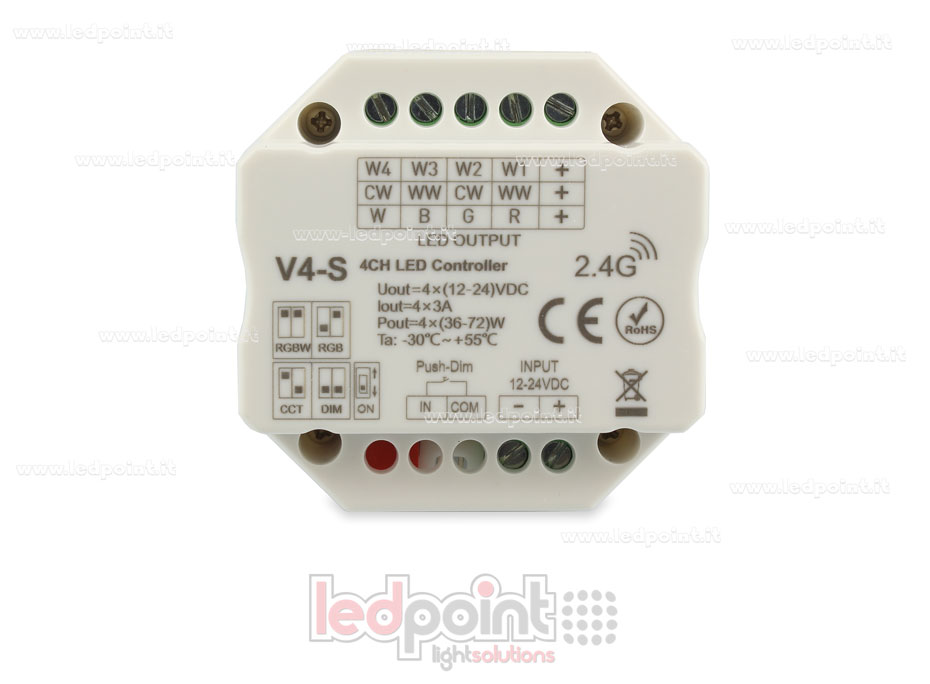

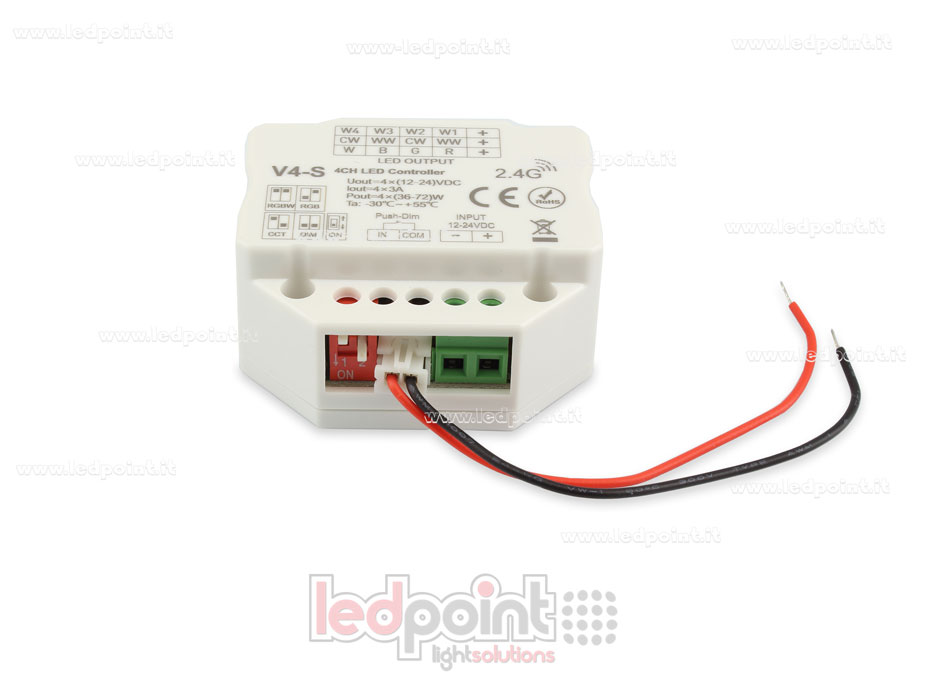

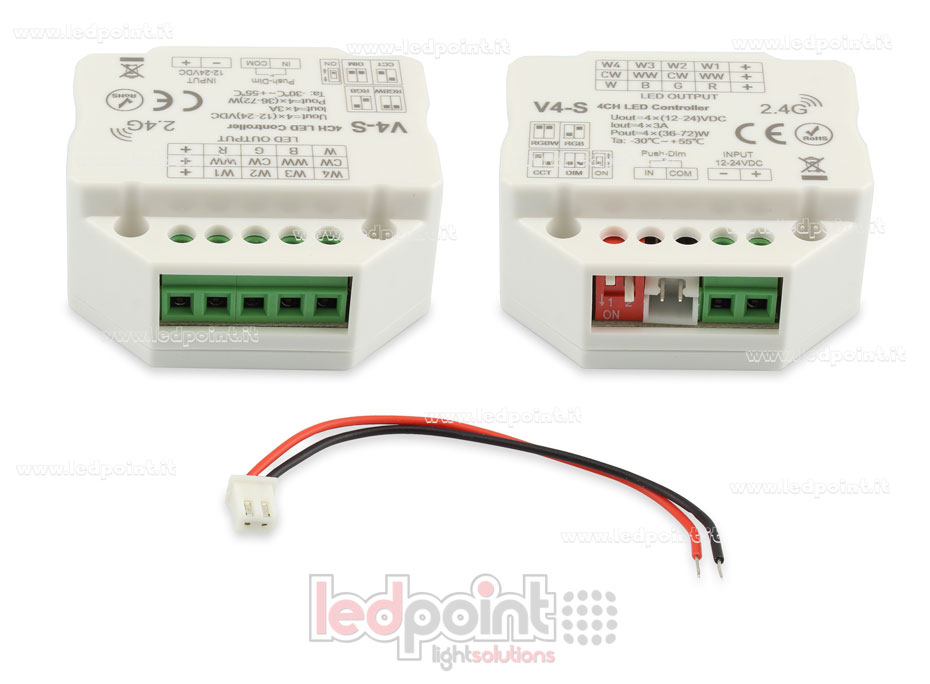

SKYDANCE SYSTEMS CATALOGUE FAQ RF controller + push switch, 4 channels constant voltage output. It can be set as single-colour, double-colour, RGB or RGBW thanks to its DIP keys. It can be matched to all RF single-colour, CCT, RGB and RGBW remote controls (up to 10 remote controls). It is possible to connect an external push switch to turn on/off and dim the light. Easy to install in a standard wall junction box behind a push switch.
For more information, please log in to the website and consult the manual, if available.
Technical parameters:
- Input voltage: 12-24V
- Load current: 3A
- Channels: 4
- Max power: 144-288W
- Max total output: 12A
- Input signal: RF 2.4GHz + Push Dim
- Output signal: CV PWM
- Connector: terminal block
- Working temperature: -30°C ~ +55°C
- Dimensions: 52x52x26 mm
ATTENTION: Wi-Fi connection can cause interference with the controller and, as a consequence, significantly reduce its range.
The use of shielded cables is recommended when installed near to cables plugged into the mains.
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
Documentation/Compliance
WEEE Information (Legislative Decree 49/2014) – professional use (Art. 26)
End-of-life disposal (WEEE – B2B).
This product is Electrical and Electronic Equipment intended for professional users and must not be disposed of with municipal waste. The crossed-out wheeled bin symbol indicates the obligation of separate collection. Improper handling (abandonment or unauthorized dismantling) may pose risks to the environment and human health.
For the collection of professional WEEE, please contact the WEEE Producer in Italy or the Consortium indicated below. Users are required to facilitate reuse, recycling, and recovery by delivering the product through the indicated channels.
WEEE Producer in Italy:
Ledpoint s.r.l. – Via Ettore Majorana, 15 – 48018 Faenza (RA) – Italy
WEEE Register No. IT16030000009247 – Consortium ECOLIGHT, Via Giotto 36 – 20145 Milan (MI)
