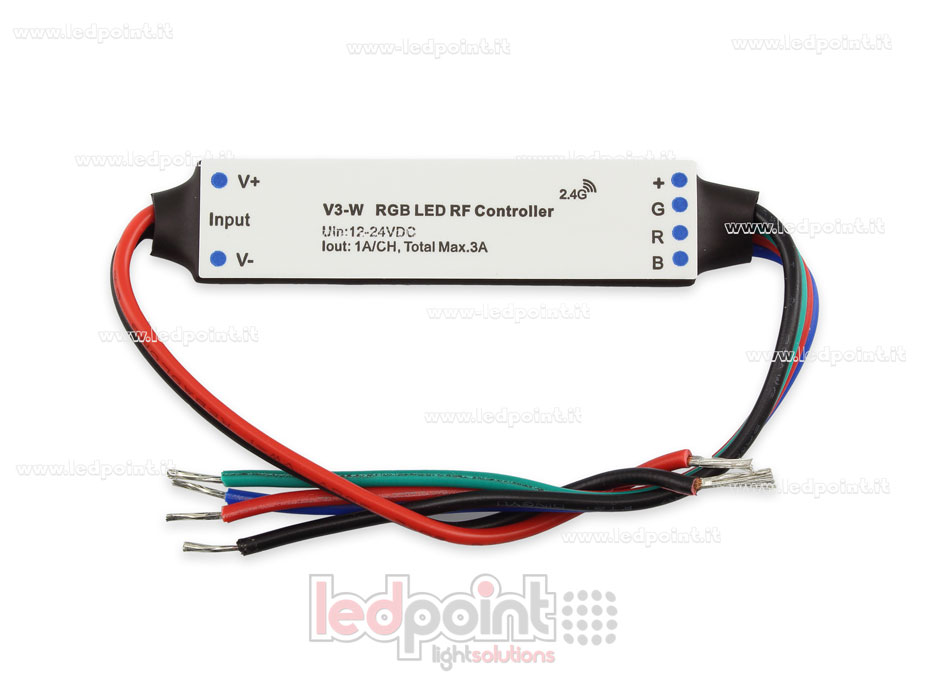

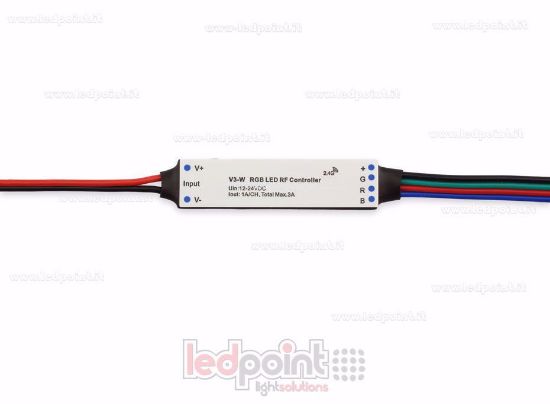

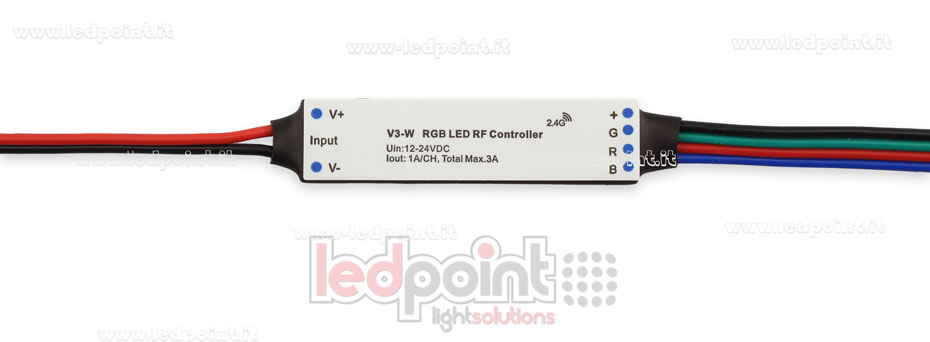

SKYDANCE SYSTEMS CATALOGUE FAQ 12/24V, 3ch 1A/CH, RF 2.4G RGB mini dimmer receiver for installation inside aluminium profile. Mini RF constant voltage RGB LED controller with 3 channels. 1A for each channel, max. output power 75W. It can be matched to all 2.4G single zone or multi zone RGB remote controls (up to 10 remote controls). Suitable for installation in aluminium profiles.
For more information, please log in to the website and consult the manual, if available.
Technical parameters:
- Input voltage: 12-24V
- Channels: 3
- Max power: 36-72W
- Input signal: RF 2.4GHz
- Output signal: CV PWM
- Working temperature: -30°C ~ +55°C
- Dimensions: 60x14x4 mm
ATTENTION: Wi-Fi connection can cause interference with the controller and, as a consequence, significantly reduce its range.
The use of shielded cables is recommended when installed near to cables plugged into the mains.
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
Documentation/Compliance
WEEE Information (Legislative Decree 49/2014) – professional use (Art. 26)
End-of-life disposal (WEEE – B2B).
This product is Electrical and Electronic Equipment intended for professional users and must not be disposed of with municipal waste. The crossed-out wheeled bin symbol indicates the obligation of separate collection. Improper handling (abandonment or unauthorized dismantling) may pose risks to the environment and human health.
For the collection of professional WEEE, please contact the WEEE Producer in Italy or the Consortium indicated below. Users are required to facilitate reuse, recycling, and recovery by delivering the product through the indicated channels.
WEEE Producer in Italy:
Ledpoint s.r.l. – Via Ettore Majorana, 15 – 48018 Faenza (RA) – Italy
WEEE Register No. IT16030000009247 – Consortium ECOLIGHT, Via Giotto 36 – 20145 Milan (MI)
