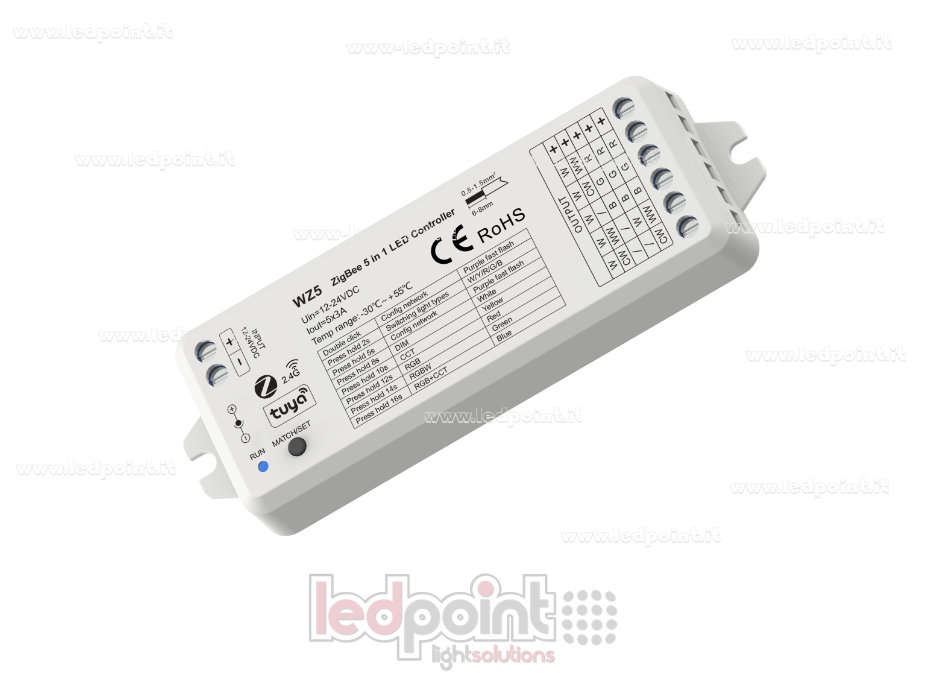

SKYDANCE SYSTEMS CATALOGUE FAQ 5-in-1 receiver/controller compatible with RGB+CCT, RGBW, RGB, CCT, and monochrome LED strips that can also work without a Wi-Fi network: you can control it directly with 2.4G RF remote controls or via a ZigBee hub, which allows stable local control even without the internet. When connected to Wi-Fi, it can be managed from the Tuya app (Alexa and Google Home) and can also function as a WiFi-RF bridge, allowing you to control other RF receivers via the app. Perfect for mixed RF/ZigBee systems and installations that need to work offline. For more information, visit the website and consult the user manual, if available.
For more information, please log in to the website and consult the manual, if available.
Technical parameters:
- Input voltage: 12-24V
- Load current: 3A
- Channels: 5
- Max power: 180-360W
- Max total output: 15A
- Input signal: ZigBee + RF 2.4GHz
- Output signal: CV PWM
- Connector: terminal block
- Working temperature: -30°C ~ +55°C
- Dimensions: 114x38x20 mm
ATTENTION: Wi-Fi connection can cause interference with the controller and, as a consequence, significantly reduce its range.
The use of shielded cables is recommended when installed near to cables plugged into the mains.
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
