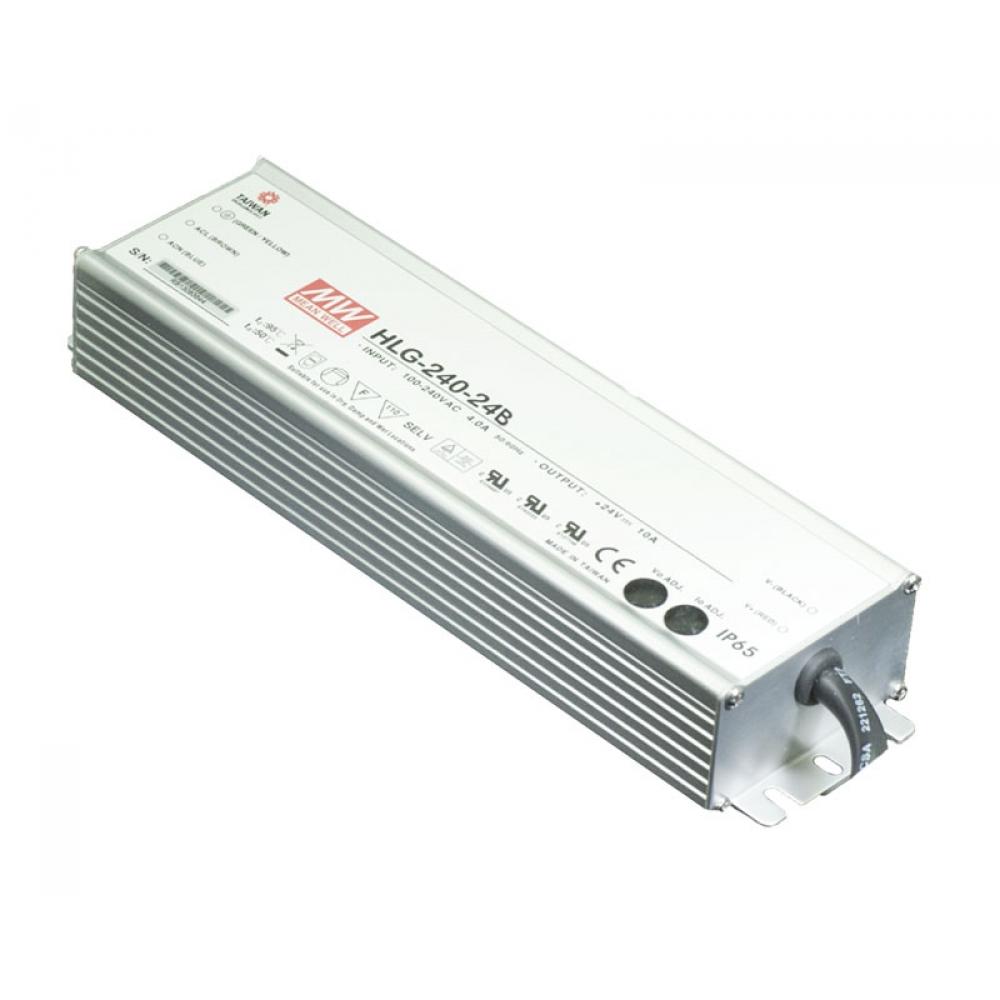

Mean Well power supply, 24V, 240W, dimming function (1~10Vdc, PWM or resistance), IP67

Flexible LED strip with double sided tape for a fast installation even on curved surfaces. Thanks to the coating that covers the LEDs, the COB strip allows to create a dot free light with a wide beam angle.

Tech specs:

• Lumens: 980 lm/m
• Efficiency: 100 lm/W
• Strip LED colour temperature: 4000K
• Power consumption 11 W/m (55W), 24V (+0%, -15%)
• Dimmable LED strip with 2000 chips (400 chips/m)
• Led strip cuttable every 8 chips (every 2cm). Length 5 m, width 5 mm, height 2 mm
• PCB colour: White
• Double sided adhesive tape type: 3M 9495LE
• 15 cm power input cables on both sides of the strip
• Working temperature: -10°C ~ +45°C

Flexible LED strip with double sided tape for a fast installation even on curved surfaces. Thanks to the coating that covers the LEDs, the COB strip allows to create a dot free light with a wide beam angle.

Tech specs:

• Lumens: 1130 lm/m
• Efficiency: 115 lm/W
• Strip LED colour temperature: 4000K
• Power consumption 11 W/m (55W), 24V (+0%, -15%)
• Dimmable LED strip with 2400 chips (480 chips/m)
• Led strip cuttable every 24 chips (every 5cm). Length 5 m, width 8 mm, height 2 mm
• PCB colour: White
• Double sided adhesive tape type: 3M 9495LE
• 15 cm power input cables on both sides of the strip
• Working temperature: -10°C ~ +45°C

Flexible LED strip with double sided tape for a fast installation even on curved surfaces. Thanks to the coating that covers the LEDs, the COB strip allows to create a dot free light with a wide beam angle.

Tech specs:

• Lumens: 870 lm/m
• Efficiency: 95 lm/W
• Strip LED colour temperature: 6000K
• Power consumption 10 W/m (50W), 24V (+0%, -15%)
• Dimmable LED strip with 2000 chips (400 chips/m)
• Led strip cuttable every 8 chips (every 2cm). Length 5 m, width 5 mm, height 2 mm
• PCB colour: White
• Double sided adhesive tape type: 3M 9495LE
• 15 cm power input cables on both sides of the strip
• Working temperature: -10°C ~ +45°C

The led strip F52-390-060DF2 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.

Tech specs:

• 2835 LED
• Lumens: 520 lm/m
• Efficiency: 120 lm/W
• Strip LED colour temperature: 3900-4200K
• Power consumption 4,8 W/m (24W), 24V (+0%, -15%)
• Dimmable LED strip with 300 leds (60 leds/m)
• Led strip cuttable every 6 leds (every 10cm). Length 5 m, width 8 mm, height 2 mm
• PCB colour: White
• Double sided adhesive tape type: 3M 9495LE
• 10 cm power input cables on both sides of the strip
• Working temperature: -10°C ~ +45°C

The led strip F52-30s-120DZ2-S1 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.

Tech specs:

• 2835 LED
• Lumens: 1050 lm/m
• Efficiency: 105 lm/W
• Strip LED colour temperature: 3000K 3step
• Power consumption 11 W/m (55W), 24V (+0%, -15%)
• Dimmable LED strip with 600 leds (120 leds/m)
• Led strip cuttable every 6 leds (every 5cm). Length 5 m, width 8 mm, height 2 mm
• PCB colour: White
• Double sided adhesive tape type: 3M 9495LE
• 10 cm power input cables on both sides of the strip
• Working temperature: -10°C ~ +45°C

The led strip F52-40s-120DZ2-S1 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.

Tech specs:

• 2835 LED
• Lumens: 1090 lm/m
• Efficiency: 110 lm/W
• Strip LED colour temperature: 4000K 3step
• Power consumption 11 W/m (55W), 24V (+0%, -15%)
• Dimmable LED strip with 600 leds (120 leds/m)
• Led strip cuttable every 6 leds (every 5cm). Length 5 m, width 8 mm, height 2 mm
• PCB colour: White
• Double sided adhesive tape type: 3M 9495LE
• 10 cm power input cables on both sides of the strip
• Working temperature: -10°C ~ +45°C

The led strip F52-40s-0608H2 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.

Tech specs:

• 2835 LED
• Lumens: 1270 lm/m
• Efficiency: 90 lm/W
• Strip LED colour temperature: 4000K 3step
• Power consumption 14,4 W/m (72W), 24V (+0%, -15%)
• Dimmable LED strip with 300 leds (60 leds/m)
• Led strip cuttable every 6 leds (every 10cm). Length 5 m, width 10 mm, height 1,5 mm
• PCB colour: White
• Double sided adhesive tape type: 3M 9495LE
• 10 cm power input cables on both sides of the strip
• Working temperature: -10°C ~ +45°C

Flexible LED strip with double sided tape for a fast installation even on curved surfaces. Thanks to the coating that covers the LEDs, the COB strip allows to create a dot free light with a wide beam angle.

Tech specs:

• Lumens: 790 lm/m
• Efficiency: 80 lm/W
• Strip LED colour temperature: 3000K
• Power consumption 11 W/m (55W), 24V (+0%, -15%)
• Dimmable LED strip with 2000 chips (400 chips/m)
• Led strip cuttable every 8 chips (every 2cm). Length 5 m, width 7 mm, height 3 mm
• PCB colour: White
• Double sided adhesive tape type: 3M 9495LE
• 15 cm power input cables on both sides of the strip
• Working temperature: -10°C ~ +45°C

The led strip F52-27s-1208F2/14.4 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.

Tech specs:

• 2835 LED
• Lumens: 1500 lm/m
• Efficiency: 115 lm/W
• Strip LED colour temperature: 2700K 3step
• Power consumption 14,4 W/m (72W), 24V (+0%, -15%)
• Dimmable LED strip with 600 leds (120 leds/m)
• Led strip cuttable every 6 leds (every 5cm). Length 5 m, width 10 mm, height 1,5 mm
• PCB colour: White
• Double sided adhesive tape type: 3M 9495LE
• 10 cm power input cables on both sides of the strip
• Working temperature: -10°C ~ +45°C

The led strip F52-35s-1208F2/14.4 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.

Tech specs:

• 2835 LED
• Lumens: 1600 lm/m
• Efficiency: 125 lm/W
• Strip LED colour temperature: 3500K 3step
• Power consumption 14,4 W/m (72W), 24V (+0%, -15%)
• Dimmable LED strip with 600 leds (120 leds/m)
• Led strip cuttable every 6 leds (every 5cm). Length 5 m, width 10 mm, height 1,5 mm
• PCB colour: White
• Double sided adhesive tape type: 3M 9495LE
• 10 cm power input cables on both sides of the strip
• Working temperature: -10°C ~ +45°C

The led strip F52-30s-1608Z2-S1 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.

Tech specs:

• 2835 LED
• Lumens: 2130 lm/m
• Efficiency: 145 lm/W
• Strip LED colour temperature: 3000K 3step
• Power consumption 15,5 W/m (77,5W), 24V (+0%, -15%)
• Dimmable LED strip with 800 leds (160 leds/m)
• Led strip cuttable every 8 leds (every 5cm). Length 5 m, width 10 mm, height 2 mm
• PCB colour: White
• Double sided adhesive tape type: 3M 9495LE
• 10 cm power input cables on both sides of the strip
• Working temperature: -10°C ~ +45°C

The led strip F52-40s-1608Z2-S1 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.

Tech specs:

• 2835 LED
• Lumens: 2220 lm/m
• Efficiency: 155 lm/W
• Strip LED colour temperature: 4000K 3step
• Power consumption 15,5 W/m (77,5W), 24V (+0%, -15%)
• Dimmable LED strip with 800 leds (160 leds/m)
• Led strip cuttable every 8 leds (every 5cm). Length 5 m, width 10 mm, height 2 mm
• PCB colour: White
• Double sided adhesive tape type: 3M 9495LE
• 10 cm power input cables on both sides of the strip
• Working temperature: -10°C ~ +45°C

Led strip was built with Honglitronic leds, version HL-A-2835H421W-S1-08-HR5. The 3step LED allows to install or replace LED strips having the same colour temperature without seeing different shades of colour even for different product batches. For further information please consult LED datasheet.

The led strip F52-40s-120822-C90 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.

Tech specs:

• 2835 LED
• Lumens: 2150 lm/m
• Efficiency: 100 lm/W
• Strip LED colour temperature: 4000K 3step
• Power consumption 24 W/m (120W), 24V (+0%, -15%)
• Dimmable LED strip with 600 leds (120 leds/m)
• Led strip cuttable every 6 leds (every 5cm). Length 5 m, width 10 mm, height 1,5 mm
• PCB colour: White
• Double sided adhesive tape type: 3M 9495LE
• 10 cm power input cables on both sides of the strip
• Working temperature: -10°C ~ +50°C
• IEC/TR 62778:2014 photobiological risk certificate: risk Group 1 when used as light source.

The led strip F52-30s-240DZ2-S1 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.

Tech specs:

• 2835 LED
• Lumens: 2255 lm/m
• Efficiency: 110 lm/W
• Strip LED colour temperature: 3000K 3step
• Power consumption 22 W/m (110W), 24V (+0%, -15%)
• Dimmable LED strip with 1200 leds (240 leds/m)
• Led strip cuttable every 6 leds (every 2,5cm). Length 5 m, width 10 mm, height 1,5 mm
• PCB colour: White
• Double sided adhesive tape type: 3M 9495LE
• 10 cm power input cables on both sides of the strip
• Working temperature: -10°C ~ +45°C

The led strip F52-40s-240DZ2-S1 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.

Tech specs:

• 2835 LED
• Lumens: 2340 lm/m
• Efficiency: 115 lm/W
• Strip LED colour temperature: 4000K 3step
• Power consumption 22 W/m (110W), 24V (+0%, -15%)
• Dimmable LED strip with 1200 leds (240 leds/m)
• Led strip cuttable every 6 leds (every 2,5cm). Length 5 m, width 10 mm, height 1,5 mm
• PCB colour: White
• Double sided adhesive tape type: 3M 9495LE
• 10 cm power input cables on both sides of the strip
• Working temperature: -10°C ~ +45°C

The led strip F52-40s-238DY2 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.

Tech specs:

• 2835 LED
• Lumens: 2780 lm/m
• Efficiency: 140 lm/W
• Strip LED colour temperature: 4000K 3step
• Power consumption 22 W/m (110W), 24V (+0%, -15%)
• Dimmable LED strip with 1190 leds (238 leds/m)
• Led strip cuttable every 7 leds (every 2,94cm). Length 5 m, width 10 mm, height 1,5 mm
• PCB colour: White
• Double sided adhesive tape type: 3M 9495LE
• 10 cm power input cables on both sides of the strip
• Working temperature: -10°C ~ +45°C

The led strip F52-40s-238DY2-Ca9 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.

Tech specs:

• 2835 LED
• Lumens: 2450 lm/m
• Efficiency: 120 lm/W
• Strip LED colour temperature: 4000K 3step
• Power consumption 22 W/m (110W), 24V (+0%, -15%)
• Dimmable LED strip with 1190 leds (238 leds/m)
• Led strip cuttable every 7 leds (every 2,94cm). Length 5 m, width 10 mm, height 1,5 mm
• PCB colour: White
• Double sided adhesive tape type: 3M 9495LE
• 10 cm power input cables on both sides of the strip
• Working temperature: -10°C ~ +45°C

The led strip F52-30s-238DY2 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.

Tech specs:

• 2835 LED
• Lumens: 2345 lm/m
• Efficiency: 135 lm/W
• Strip LED colour temperature: 3000K 3step
• Power consumption 19,2 W/m (96W), 24V (+0%, -15%)
• Dimmable LED strip with 1190 leds (238 leds/m)
• Led strip cuttable every 7 leds (every 2,94cm). Length 5 m, width 10 mm, height 1,5 mm
• PCB colour: White
• Double sided adhesive tape type: 3M 9495LE
• 10 cm power input cables on both sides of the strip
• Working temperature: -10°C ~ +45°C

The led strip F52-30s-238DY2-Ca9 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.

Tech specs:

• 2835 LED
• Lumens: 1970 lm/m
• Efficiency: 110 lm/W
• Strip LED colour temperature: 3000K 3step
• Power consumption 19,2 W/m (96W), 24V (+0%, -15%)
• Dimmable LED strip with 1190 leds (238 leds/m)
• Led strip cuttable every 7 leds (every 2,94cm). Length 5 m, width 10 mm, height 1,5 mm
• PCB colour: White
• Double sided adhesive tape type: 3M 9495LE
• 10 cm power input cables on both sides of the strip
• Working temperature: -10°C ~ +45°C

Flexible LED strip with double sided tape for a fast installation even on curved surfaces. Thanks to the coating that covers the LEDs, the COB strip allows to create a dot free light with a wide beam angle.

Tech specs:

• Lumens: 1990 lm/m
• Efficiency: 85 lm/W
• Strip LED colour temperature: 3000K
• Power consumption 26 W/m (130W), 24V (+0%, -15%)
• Dimmable LED strip with 3000 chips (600 chips/m)
• Led strip cuttable every 12 chips (every 2cm). Length 5 m, width 12 mm, height 2 mm
• PCB colour: White
• Double sided adhesive tape type: 3M 9495LE
• 15 cm power input cables on both sides of the strip
• Working temperature: -10°C ~ +45°C

Flexible LED strip with double sided tape for a fast installation even on curved surfaces. Thanks to the coating that covers the LEDs, the COB strip allows to create a dot free light with a wide beam angle.

Tech specs:

• Lumens: 2045 lm/m
• Efficiency: 90 lm/W
• Strip LED colour temperature: 4000K
• Power consumption 26 W/m (130W), 24V (+0%, -15%)
• Dimmable LED strip with 3000 chips (600 chips/m)
• Led strip cuttable every 12 chips (every 2cm). Length 5 m, width 12 mm, height 2 mm
• PCB colour: White
• Double sided adhesive tape type: 3M 9495LE
• 15 cm power input cables on both sides of the strip
• Working temperature: -10°C ~ +45°C
