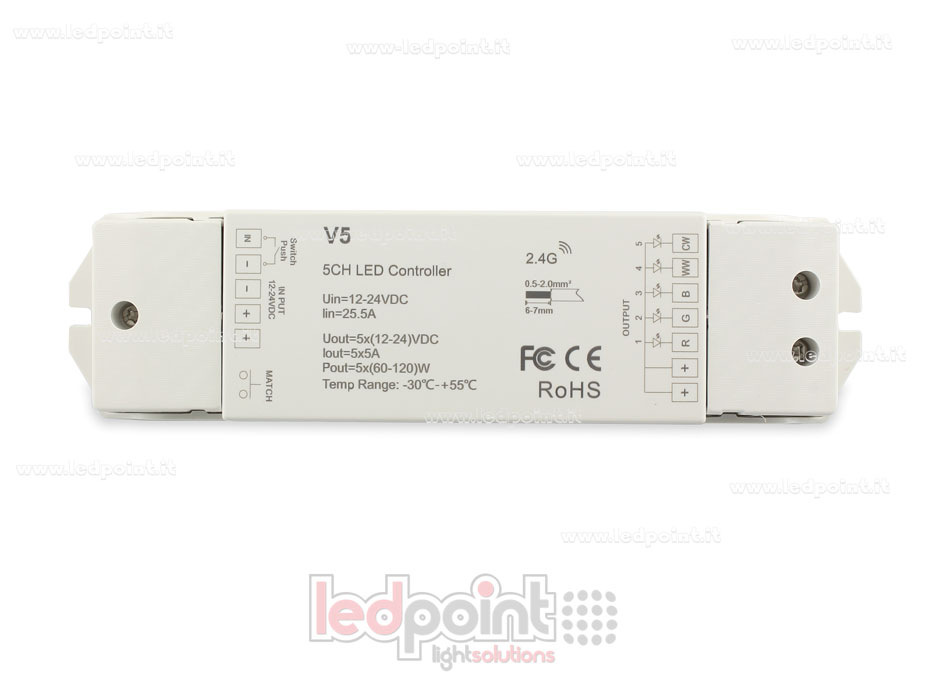

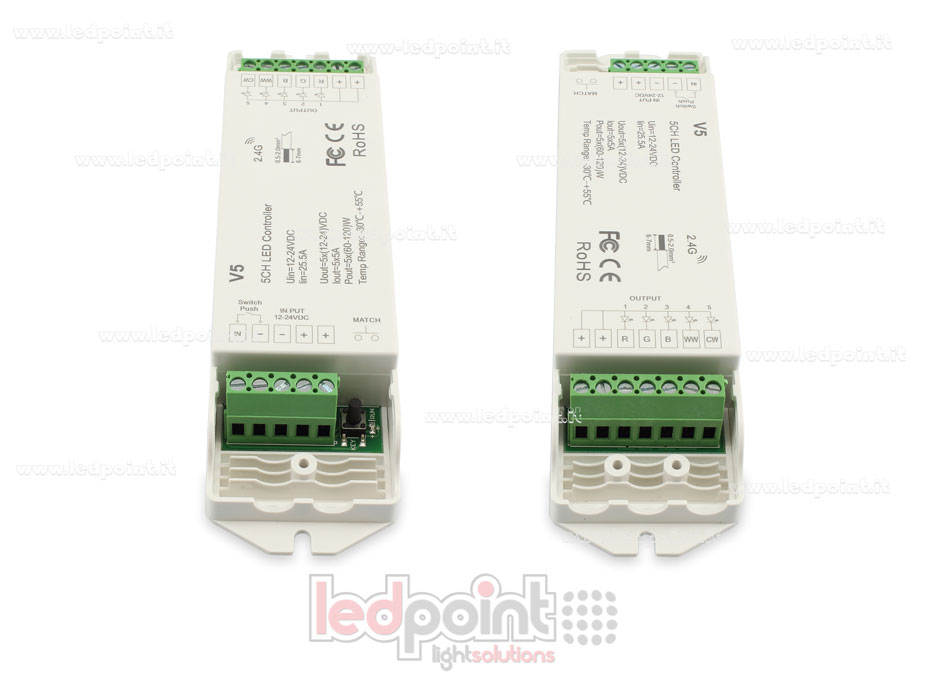

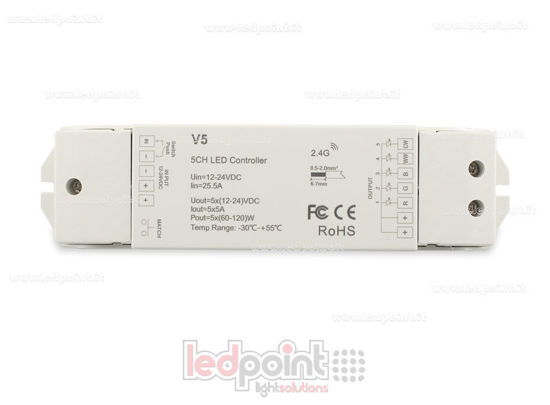

SKYDANCE SYSTEMS CATALOGUE FAQ 5 channels RF RGB + CCT LED receiver. It can be matched to all RF RGB + CCT remote controls (up to 10 remote controls). It is possible to connect an external push switch to turn on/off and dim the light.
For more information, please log in to the website and consult the manual, if available.
Technical parameters:
- Input voltage: 5-24V
- Load current: 4A
- Channels: 5
- Max power: 100-480W
- Max total output: 20A
- Input signal: RF 2.4GHz
- Output signal: CV PWM
- Connector: terminal block
- Working temperature: -30°C ~ +55°C
- Dimensions: 170x50x23 mm
Synchronization:
- Press briefly the match key on the receiver: within 5 seconds press any key on the remote control or press the key of the desired zone in case of multizone remote control
- Keep pressing the match key (5s): in this way every matching with the remote control will be deleted and the light will keep its current state
- Keep pressing the match key (10s): the default parameters will be restored.
ATTENTION: Wi-Fi connection can cause interference with the controller and, as a consequence, significantly reduce its range.
The use of shielded cables is recommended when installed near to cables plugged into the mains.
