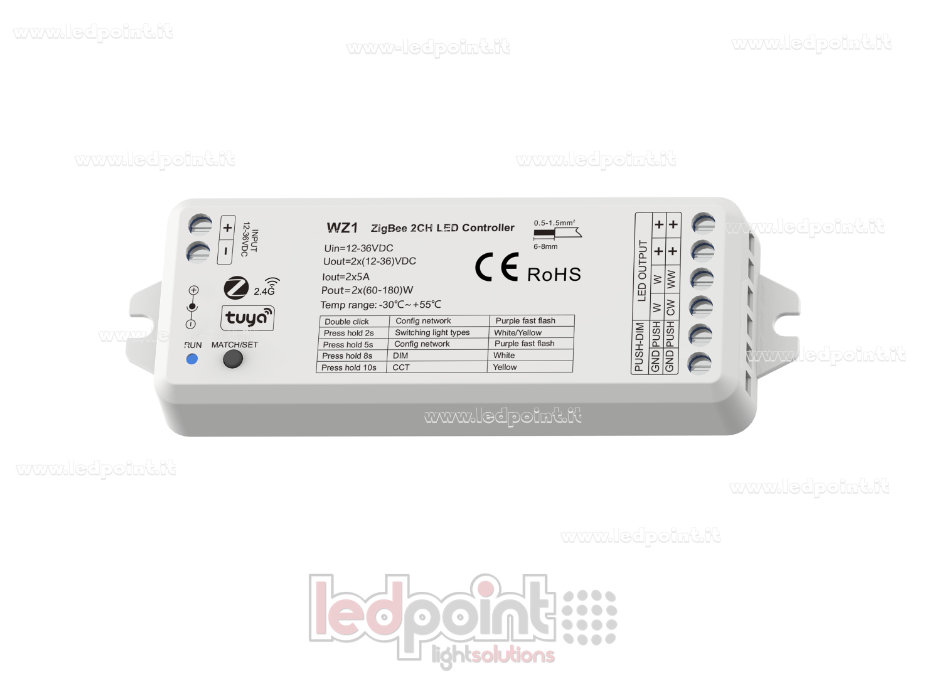

SKYDANCE SYSTEMS CATALOGUE FAQ 2-channel ZigBee + RF 2.4G dimmer/controller for CCT and monochrome LED strips, with Push-Dim input for control via a traditional button. SK-WZ1 can also operate without a Wi-Fi network: it can be controlled directly via RF 2.4G remote controls or via a ZigBee hub, which guarantees stable local control even offline. By connecting it to Wi-Fi via a ZigBee hub, it can be managed from the Tuya app (compatible with Alexa and Google Home) and can also operate as a WiFi-RF bridge, allowing you to control other RF receivers via the app. Great for mixed RF/ZigBee systems or installations that need to continue functioning even without an internet connection. For more information, visit the website and consult the user manual, if available.
For more information, please log in to the website and consult the manual, if available.
Technical parameters:
- Input voltage: 12-36V
- Load current: 5A
- Channels: 2
- Max power: 120-360W
- Max total output: 10A
- Input signal: ZigBee + RF 2.4GHz + Push Dim
- Output signal: CV PWM
- Connector: terminal block
- Working temperature: -30°C ~ +55°C
- Dimensions: 114x38x20 mm
ATTENTION: Wi-Fi connection can cause interference with the controller and, as a consequence, significantly reduce its range.
The use of shielded cables is recommended when installed near to cables plugged into the mains.
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
