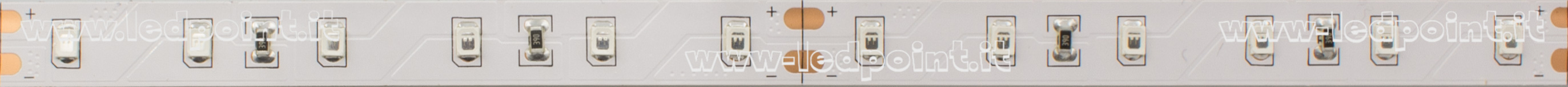

The led strip F52-UV380-060812 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.
Tech specs:
- Radiant flux: 750 mW/m
- Wavelength 380nm
- Power consumption 13,3 W/m (66,5W), 24V (+0%, -15%)
- Dimmable LED strip with 300 leds (60 leds/m)
- Led strip cuttable every 6 leds (every 10cm). Length 5 m, width 10 mm, height 1,5 mm
- PCB colour: White
- Double sided adhesive tape type: 3M 9495LE
- 10 cm power input cables on both sides of the strip
- Working temperature: -10°C ~ +45°C
ATTENTION: UV strips light can be harmful to the eyes. It is not recommended to look at them when they are turned on. Please carefully consider the light spectrum for the intended application before proceeding with the purchase.
Ultraviolet LED strip, suitable for different kinds of lighting installations.

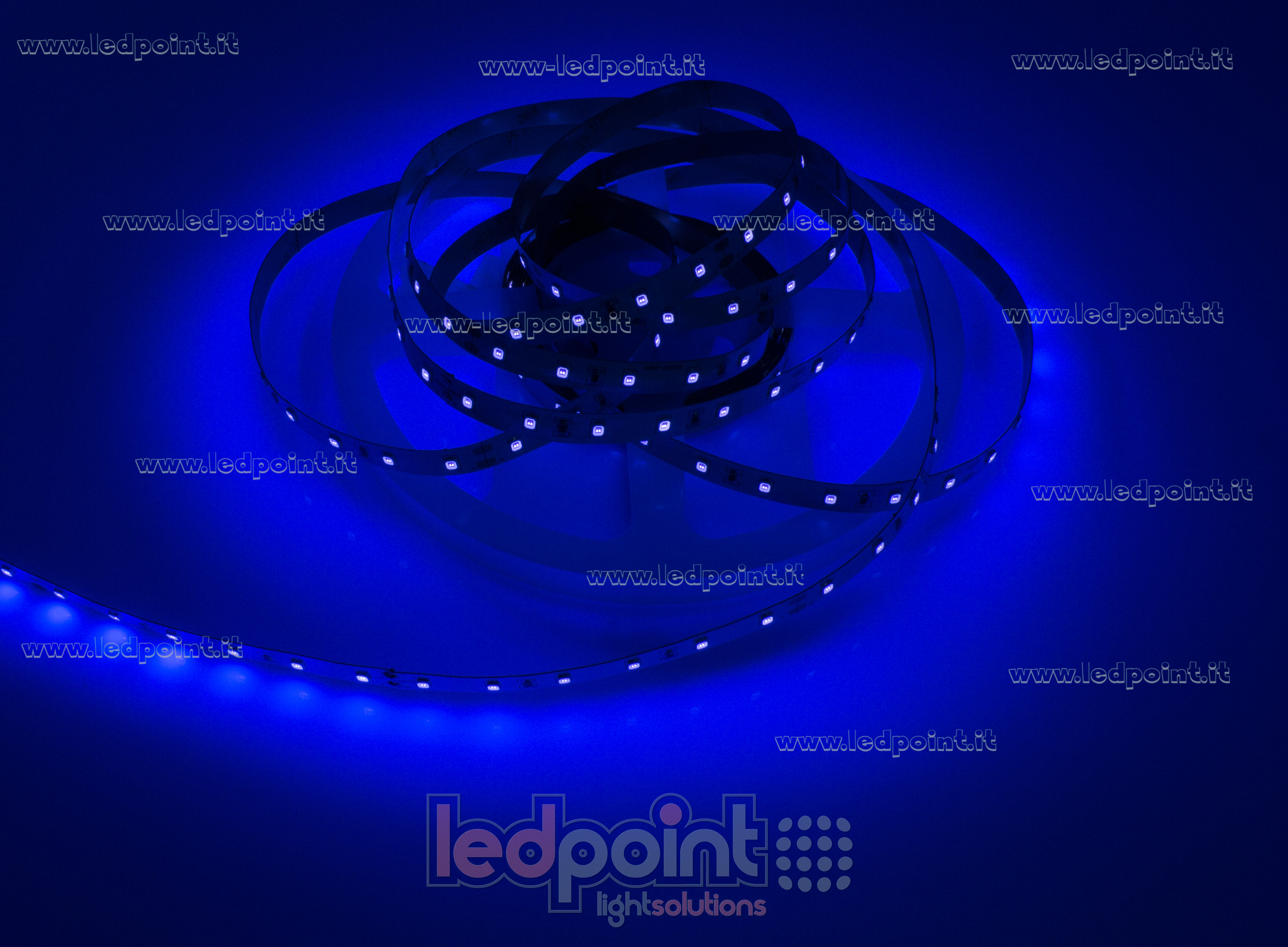

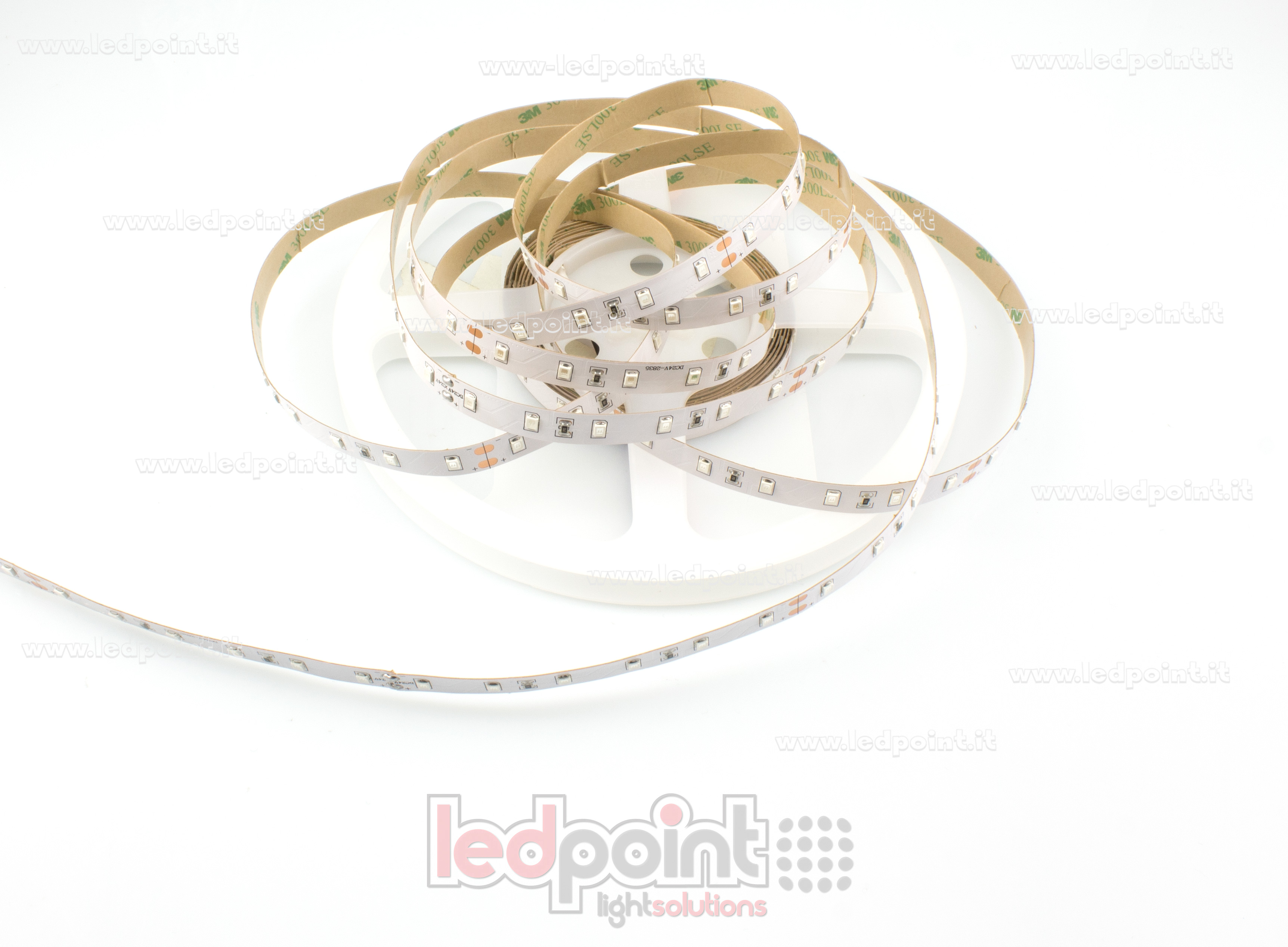

LED STRIP TURNED OFF'S ZOOM LED STRIP TURNED ON'S ZOOM
Led strip power consumption depends on how it is powered. For example, if we connect a 5 meter strip powered only on one side, its power consumption decreases by about 15%. The quantity of light generated by strips may slightly vary depending on the power supply tension, how they are powered and the temperature.
ATTENTION: it is highly recommended to use LED strips with metal heatsinks in order to dissipate the amount of heat generated. It would be much better to use anodized aluminium heatsinks. Do not use electrically conductive heatsinks to avoid short circuits that can damage the LED strip.
Purely indicative image to show the wiring of F52-UV380-060812 strips.
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
