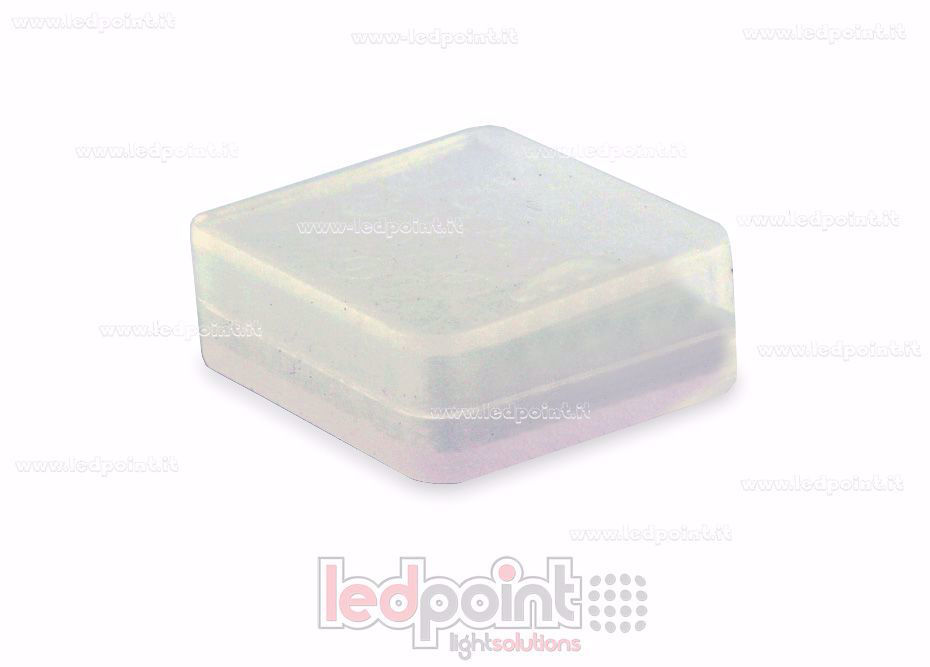

Transparent 14mm silicone end cap for LED strip with IP64 and IP67 protection

The K52-R30s-140H12 led strip produced with two different leds: a white 2835 led for a good lighting and a RGB led for colour changing effects. In this way, you can use two different functions by installing only one led strip.

The led strip K52-R30s-140H12 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.

Tech specs:

• Strip LED colour temperature: 3000K 3step + RGB
• Lumens white 3000K: 1660 lm/m
• Efficiency white 3000K: 125 lm/W
• Dimmable LED strip with 70+70 leds/m.
• Power consumption RGB led + monochrome led 14,4 W/m + 14,4 W/m (144W), 24V (+0%, -15%),
• Led strip cutting points every 14 leds (every 10cm). Length 5000 m, width 14 mm, height 5,5 mm
• PCB colour: White
• Double sided adhesive tape type: 3M 5604A VHB
• 10 cm power input cables on both sides of the strip
• Working temperature: -10°C ~ +50°C

For a perfect adhesion of the double-sided tape the temperature both of the LED strip and the surface where it is installed should be between 21 and 38°C. The LED strip will be totally fixed after 72 hours approximately. The double-sided adhesive does not guarantee a seal on painted surfaces.

The K52-R40s-140H12 led strip produced with two different leds: a white 2835 led for a good lighting and a RGB led for colour changing effects. In this way, you can use two different functions by installing only one led strip.

The led strip K52-R40s-140H12 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.

Tech specs:

• Strip LED colour temperature: 4000K 3step + RGB
• Lumens white 4000K: 1875 lm/m
• Efficiency white 4000K: 140 lm/W
• Dimmable LED strip with 70+70 leds/m.
• Power consumption RGB led + monochrome led 14,4 W/m + 14,4 W/m (144W), 24V (+0%, -15%),
• Led strip cutting points every 14 leds (every 16,5cm). Length 5000 m, width 14 mm, height 5,5 mm
• PCB colour: White
• Double sided adhesive tape type: 3M 5604A VHB
• 10 cm power input cables on both sides of the strip
• Working temperature: -10°C ~ +50°C

For a perfect adhesion of the double-sided tape the temperature both of the LED strip and the surface where it is installed should be between 21 and 38°C. The LED strip will be totally fixed after 72 hours approximately. The double-sided adhesive does not guarantee a seal on painted surfaces.

The led strip K52-RGBCCT-210H12 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.

Tech specs:

• 3838+2835+2835 LED
• Lumens warm white 2700K: 1400 lm/m
• Lumens cool white 6600K: 1525 lm/m
• Efficiency warm white 2700K: 105 lm/W
• Efficiency cool white 6600K: 115 lm/W
• Strip LED colour temperature: RGBCCT
• Power consumption 14,4 W/m + 14,4 W/m + 14,4 W/m (216W), 24V (+0%, -15%)
• Dimmable LED strip with 1050 leds (70+70+70 leds/m)
• Led strip cuttable every 21 leds (every 10cm). Length 5 m, width 14 mm, height 5 mm
• PCB colour: White
• Double sided adhesive tape type: 3M 9495LE
• 10 cm power input cables on both sides of the strip
• Working temperature: -10°C ~ +50°C

The L52-R300T-140H12 led strip produced with two different leds: a white 2835 led for a good lighting and a RGB led for colour changing effects. In this way, you can use two different functions by installing only one led strip.

The led strip L52-R300T-140H12 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.

Tech specs:

• Strip LED colour temperature: 3000K + RGB
• Lumens white 3000K: 1660 lm/m
• Efficiency white 3000K: 125 lm/W
• Dimmable LED strip with 70+70 leds/m.
• Power consumption RGB led + monochrome led 14,4 W/m + 14,4 W/m (144W), 24V (+0%, -15%),
• Led strip cutting points every 14 leds (every 10cm). Length 5000 m, width 14 mm, height 5,5 mm
• PCB colour: White
• Double sided adhesive tape type: 3M 9495LE
• 10 cm power input cables on both sides of the strip
• Working temperature: -10°C ~ +50°C

For a perfect adhesion of the double-sided tape the temperature both of the LED strip and the surface where it is installed should be between 21 and 38°C. The LED strip will be totally fixed after 72 hours approximately. The double-sided adhesive does not guarantee a seal on painted surfaces.

The L52-R400T-140H12 led strip produced with two different leds: a white 2835 led for a good lighting and a RGB led for colour changing effects. In this way, you can use two different functions by installing only one led strip.

The led strip L52-R400T-140H12 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.

Tech specs:

• Strip LED colour temperature: 4000K + RGB
• Lumens white 4000K: 1875 lm/m
• Efficiency white 4000K: 140 lm/W
• Dimmable LED strip with 70+70 leds/m.
• Power consumption RGB led + monochrome led 14,4 W/m + 14,4 W/m (144W), 24V (+0%, -15%),
• Led strip cutting points every 14 leds (every 10cm). Length 5000 m, width 14 mm, height 5,5 mm
• PCB colour: White
• Double sided adhesive tape type: 3M 9495LE
• 10 cm power input cables on both sides of the strip
• Working temperature: -10°C ~ +50°C

For a perfect adhesion of the double-sided tape the temperature both of the LED strip and the surface where it is installed should be between 21 and 38°C. The LED strip will be totally fixed after 72 hours approximately. The double-sided adhesive does not guarantee a seal on painted surfaces.
