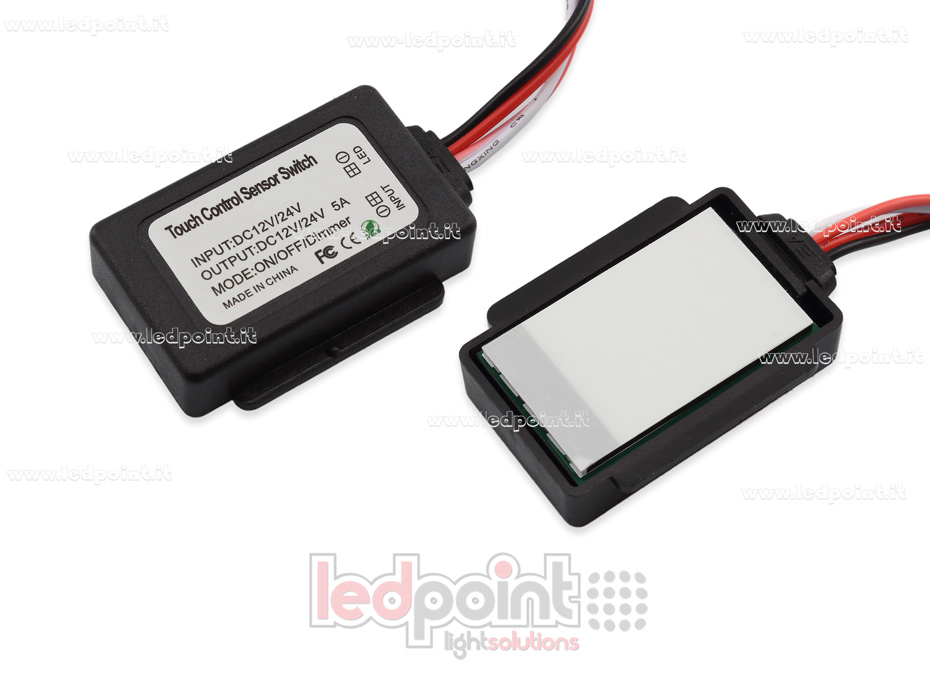

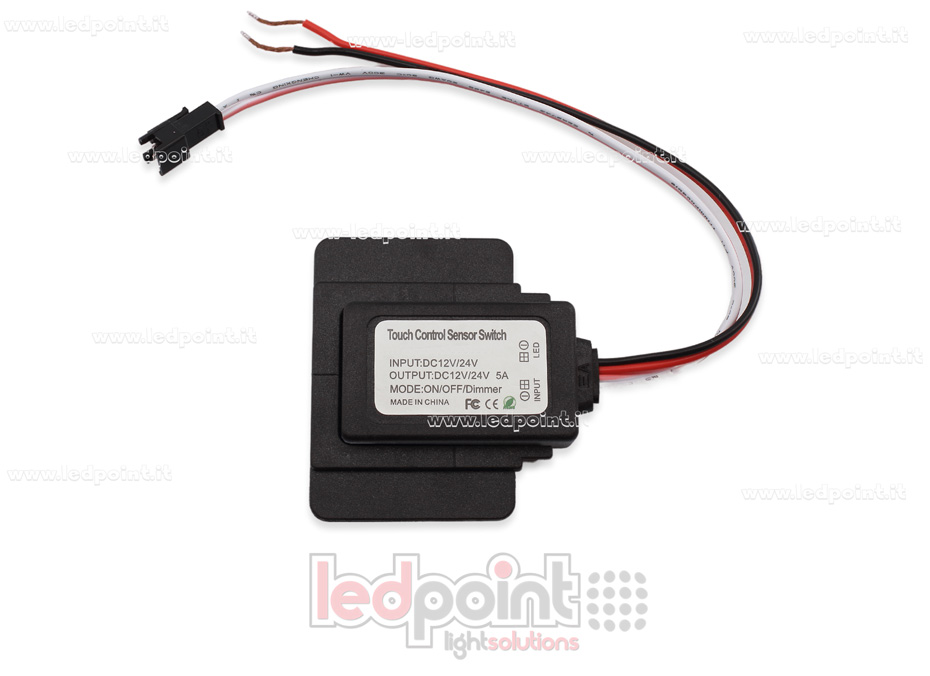

FAQ Switch touch single-colour white/blue for mirror, 5A 12-24V

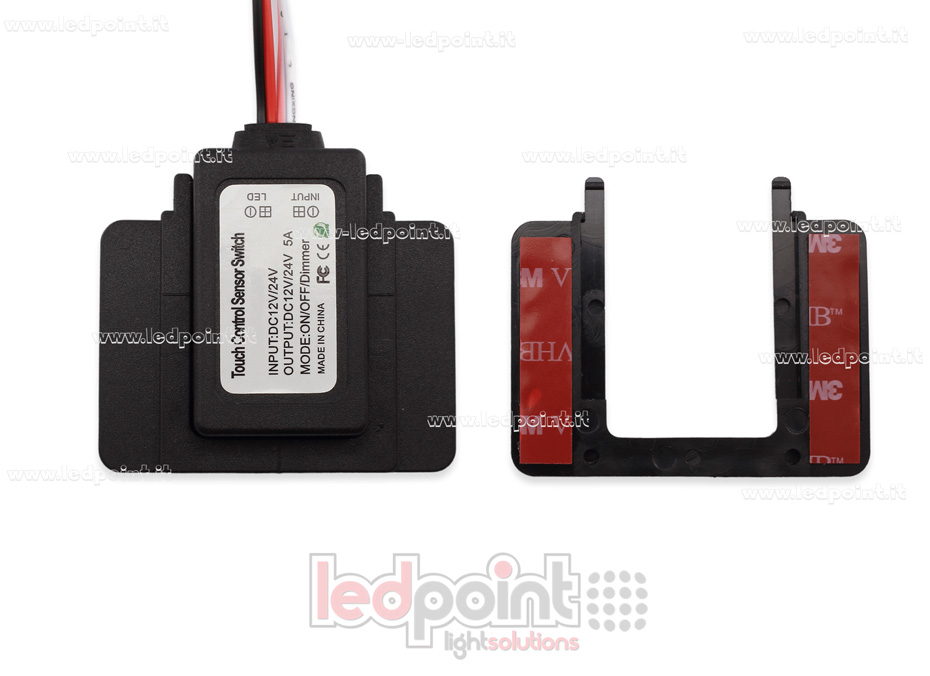

The switch touch, once installed on the back of smooth-built surfaces like glass, acrylic, plastic, ceramic etc. (thickness approx. 5mm), makes it easier to control the led strip thanks to a single touch of the surface. It features double-colored backlighting (dimmer/cct mode color white, "on-off" mode color blue with the last setting saved) and an autoadhesive clip for a faster and more accurate installation of the dimmer. IP20 version.
√ WORKS on:
- transparent glass
- frosted / sandblasted glass
- plexiglass
- plastic
- ceramic
× DOES NOT work on:
- normal mirror (silvered)
- glass with metallic coating
- conductive surfaces
The capacitive sensor does not work on silvered surfaces: it is necessary to locally remove the film (sandblasting or laser engraving) to enable touch detection and LED visibility.
Technical parameters:
- Max. power supply voltage: 12-24V
- Output current: 5A
- Max. Load at 12V: 60W
- Max. Load at 24V: 120W
- Receiver sizes: 63x57x12 mm
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
