PCB TYPE IP GRADE DOUBLE SIDED TAPE SHADES OF WHITE TECHNICAL DETAILS CATALOGUE SMD FAQ
U52-YELY-1208C2-W8 is a flexible waterproof led strip with 3M self-adhesive on its back side for quick installation even on curve surfaces.
Tech specs:
- Strip LED colour temperature: 465-470nm
- Power consumption 9,6 W/m (48W), 24V (+0%, -15%)
- Dimmable LED strip with 600 leds (120 leds/m)
- Led strip cuttable every 6 leds (every 5cm). Length 5 m, width 12 mm, height 17 mm
- Silicon colour: Yellow
- Double sided adhesive tape type: 3M 5604A VHB
- Working temperature: -10°C ~ +45°C
For a perfect adhesion of the double-sided tape the temperature both of the LED strip and the surface where it is installed should be between 21 and 38°C. The LED strip will be totally fixed after 72 hours approximately. The double-sided adhesive does not guarantee a seal on painted surfaces.

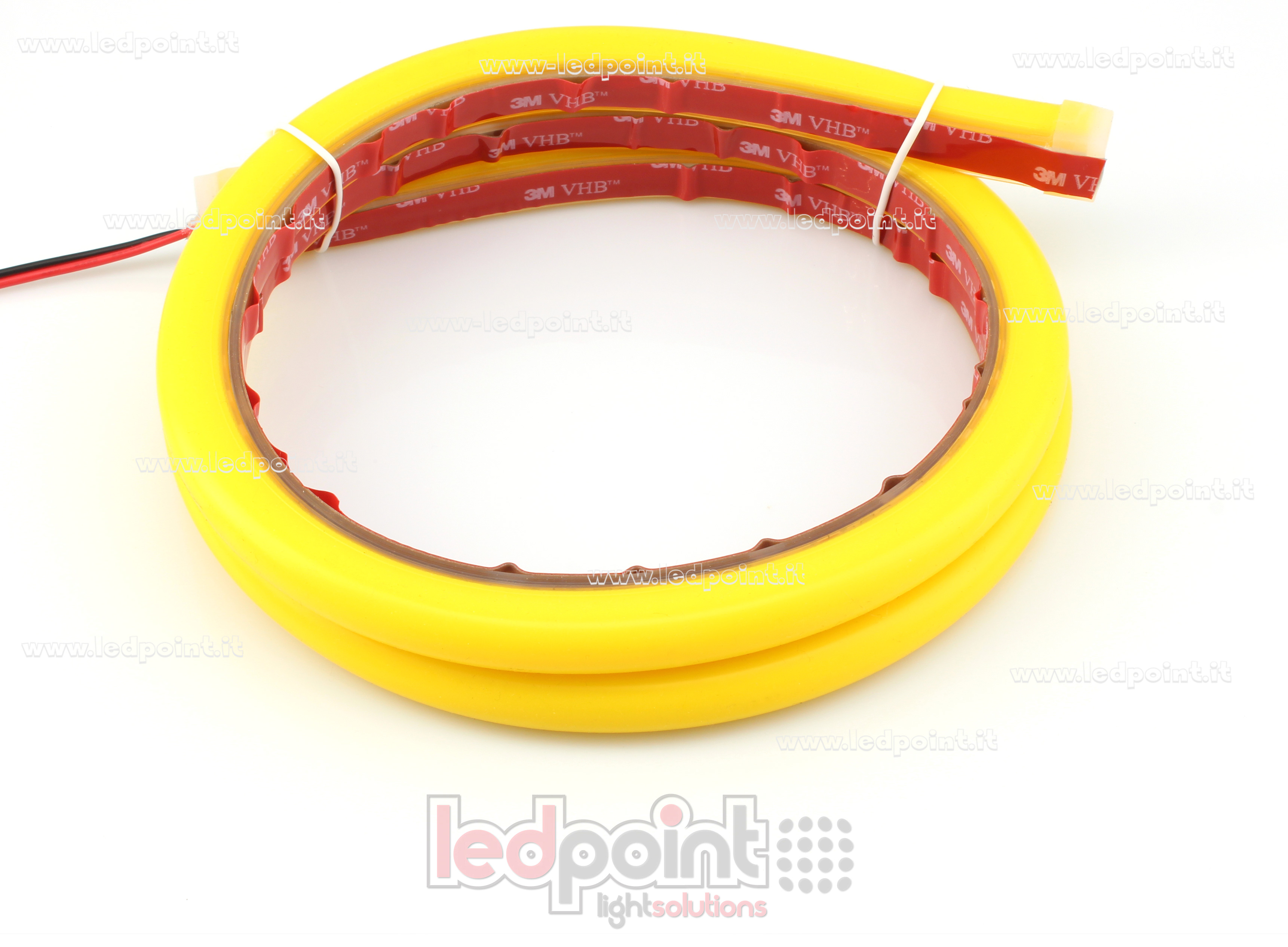

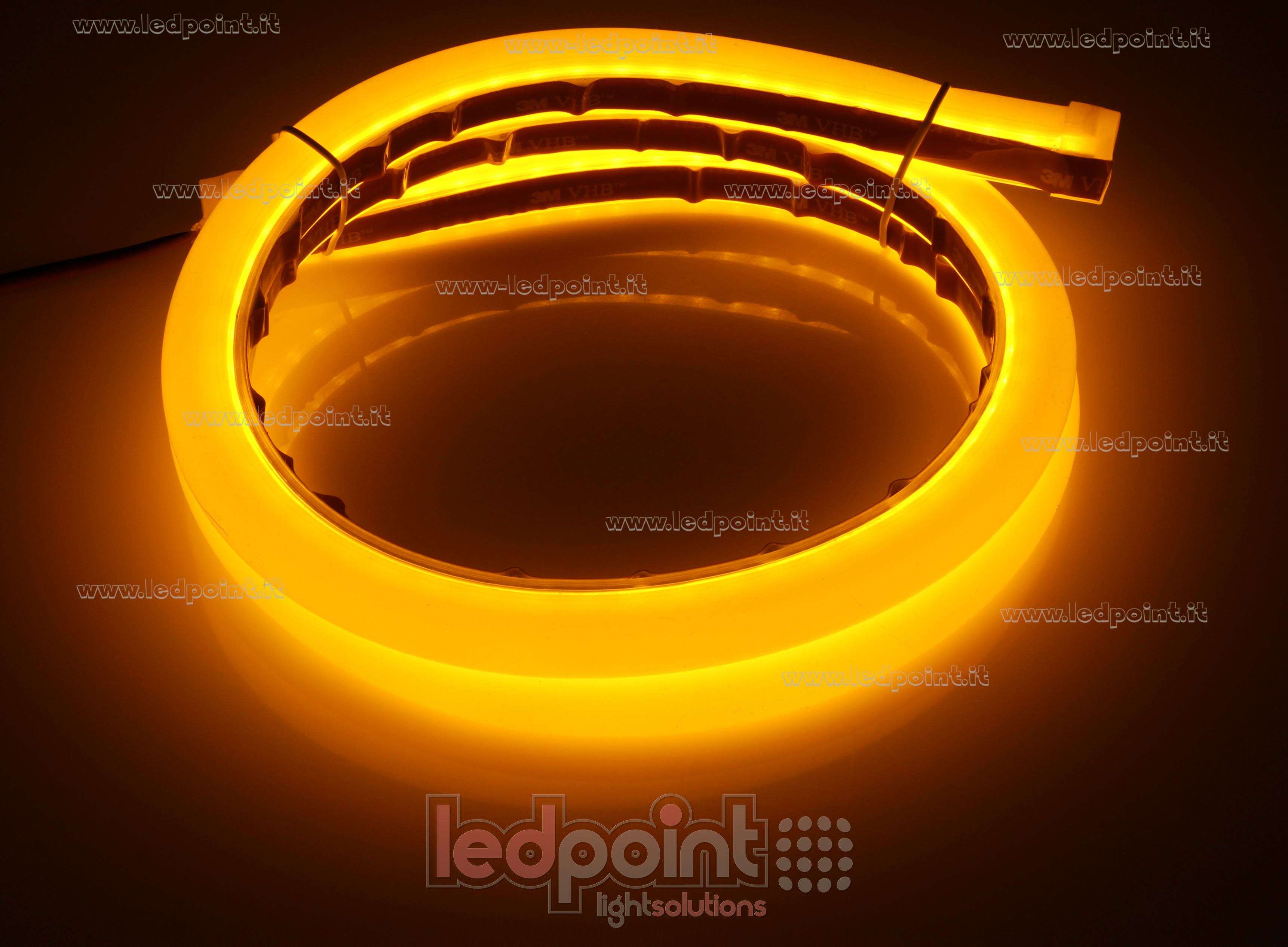

LED STRIP TURNED OFF'S ZOOM LED STRIP TURNED ON'S ZOOM

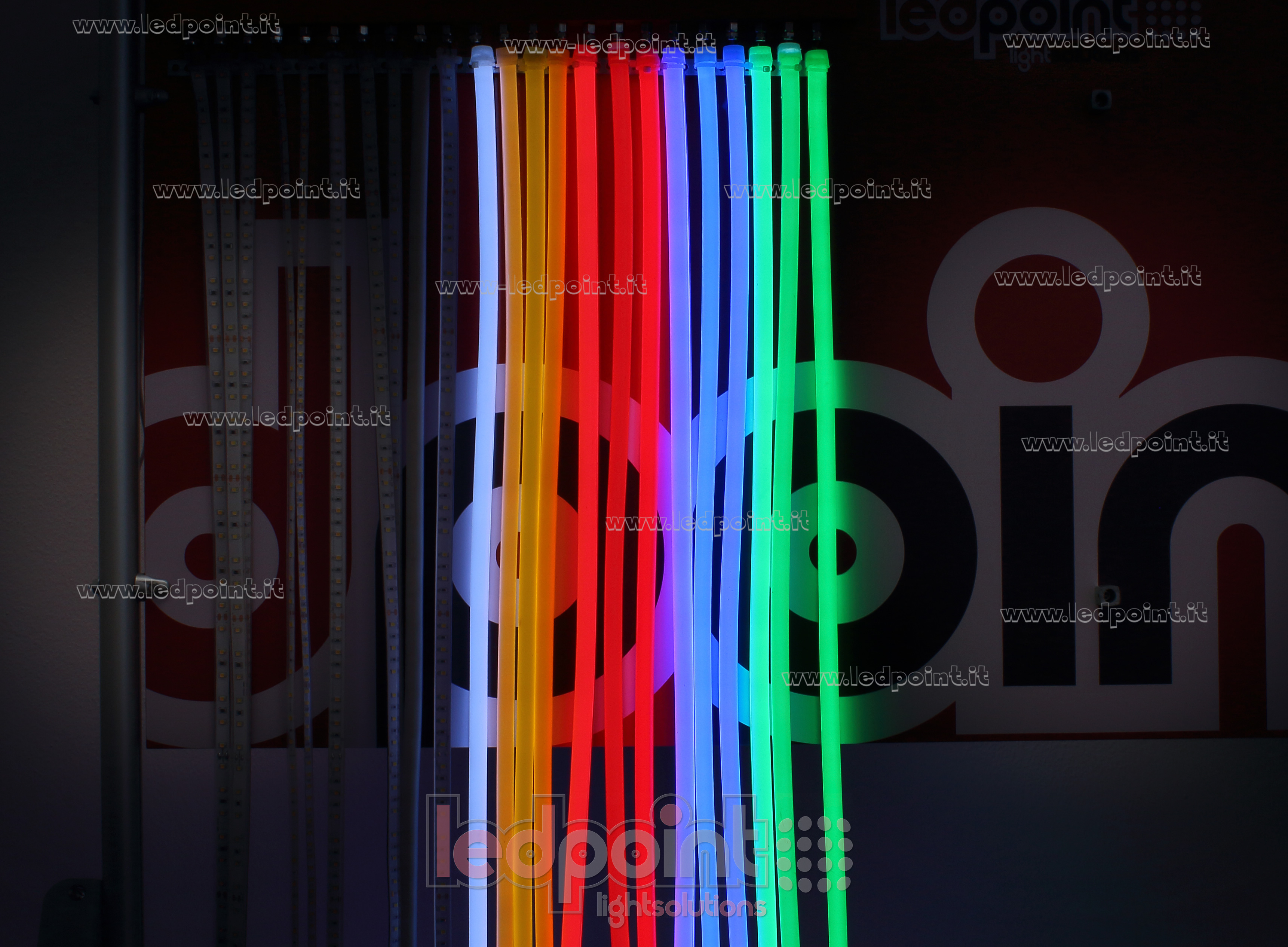

Complete range of neon silicone tubes IP67 (in sequence from left to right): U52-600W-1208C2-W8, U52-YELW-1208C2-W8, U52-600Y-1208C2-W8, U52-YELY-1208C2-W8, U52-REDW-1208C2-W8, U52-600R-1208C2-W8, U52-REDR-1208C2-W8, U52-BLUW-1208C2-W8, U52-600B-1208C2-W8, U52-BLUB-1208C2-W8, U52-GREW-1208C2-W8, U52-600G-1208C2-W8, U52-GREG-1208C2-W.
Led strip power consumption depends on how it is powered. For example, if we connect a 5 meter strip powered only on one side, its power consumption decreases by about 15%. The quantity of light generated by strips may slightly vary depending on the power supply tension, how they are powered and the temperature.
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
