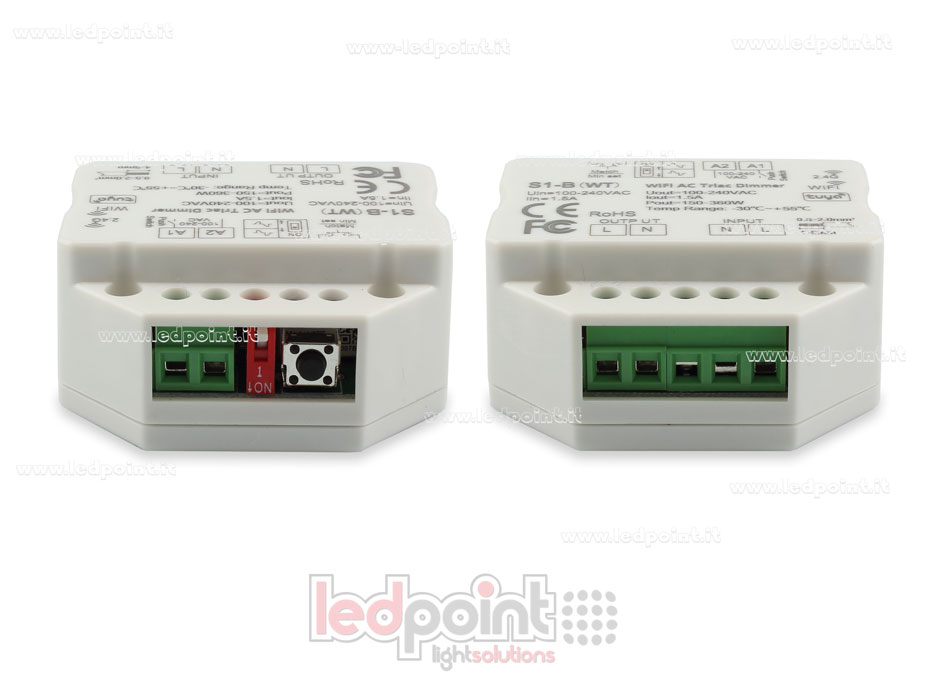

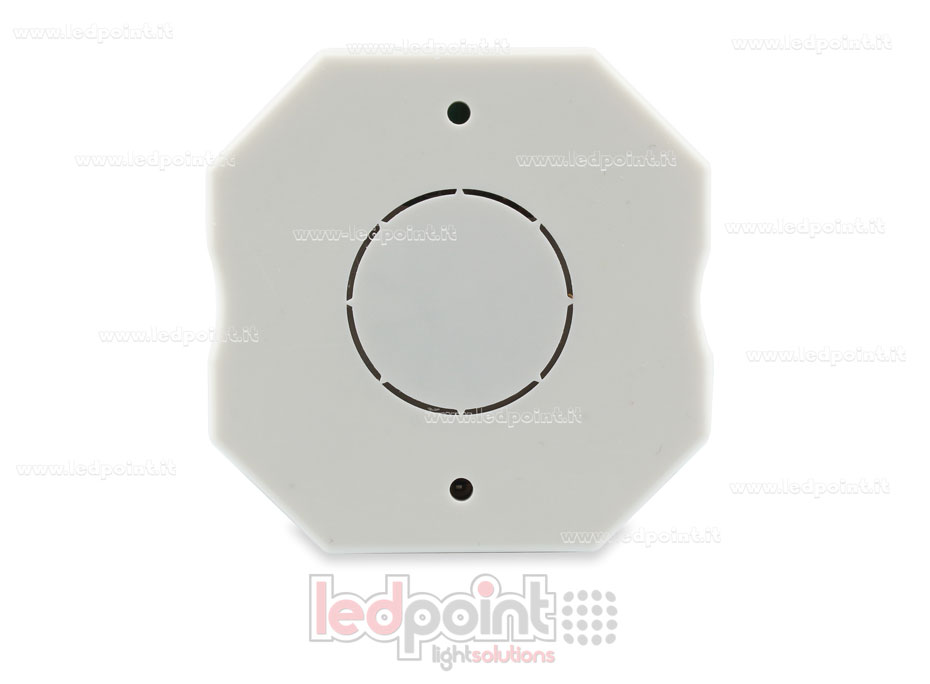

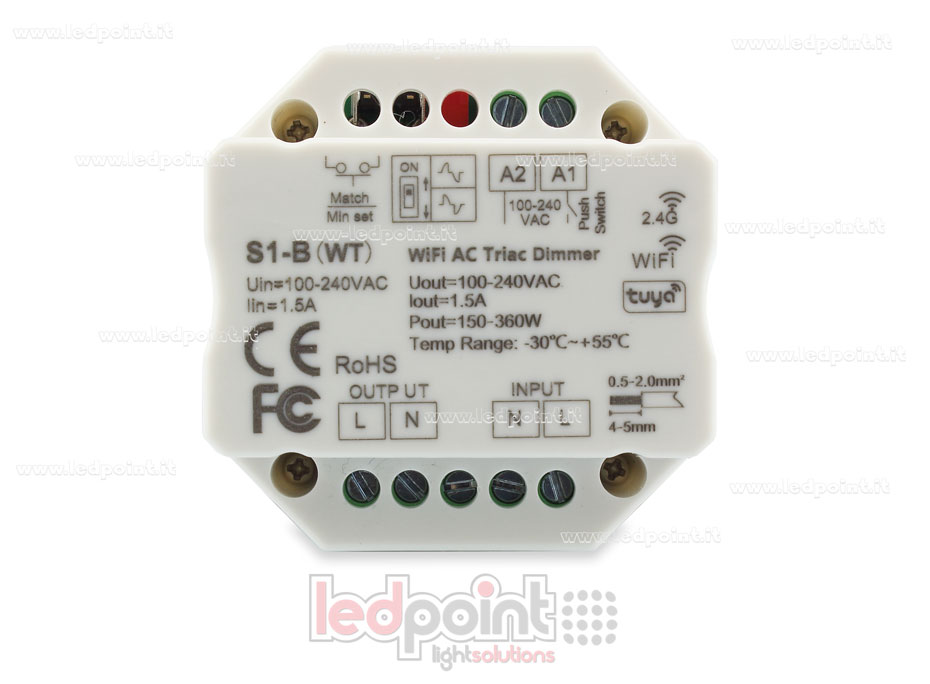

SKYDANCE SYSTEMS CATALOGUE FAQ RF dimmer + AC phase-cut push, max 1,5A 1 output channel. Suitable for turn on/of or control triac dimmable LED drivers, traditional incandescent and halogen lights. Compatible with all single or multizone single-colour remote controls. It is possible to connect an external push switch to turn on/off and dim the light. Easy to install in a standard wall junction box behind a push switch. Tuya APP cloud control, support on/off, brightness adjust, delay turn on/off light, timer run, scene and music play function.
For more information, please log in to the website and consult the manual, if available.
Technical parameters:
- Input voltage: 110-240V
- Load current: 1,5A
- Channels: 1
- Max power: 150-360W
- Max total output: 1,5A
- Input signal: WiFi + RF 2.4GHz + Push Dim
- Output signal: AC Triac
- Connector: terminal block
- Working temperature: -30°C ~ +55°C
- Dimensions: 52x52x26 mm
ATTENTION: Wi-Fi connection can cause interference with the controller and, as a consequence, significantly reduce its range.
The use of shielded cables is recommended when installed near to cables plugged into the mains.
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
