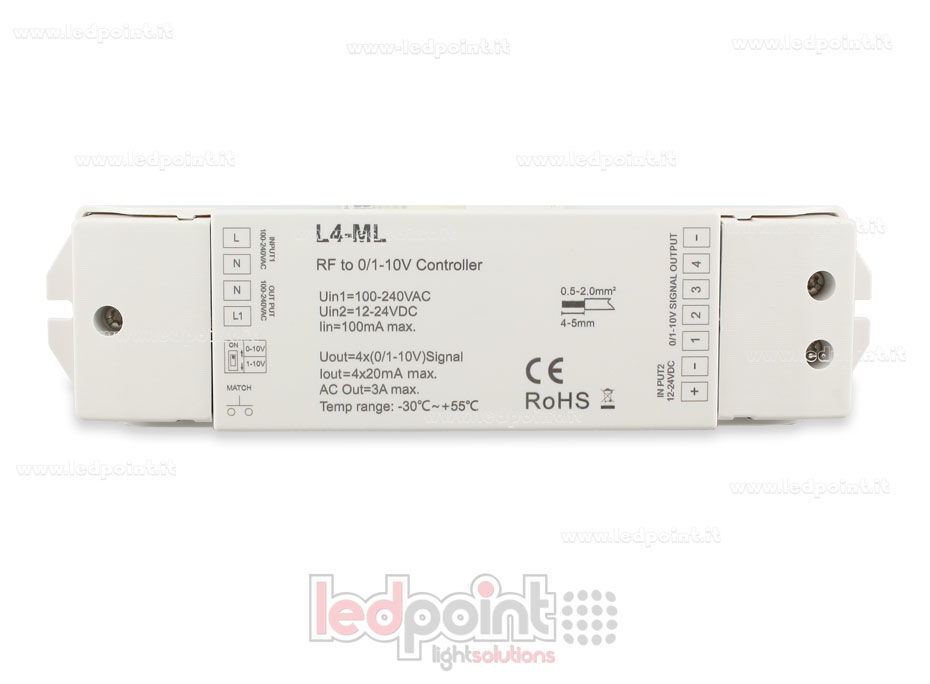

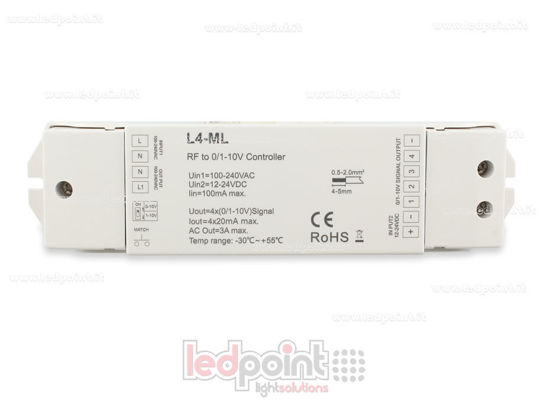

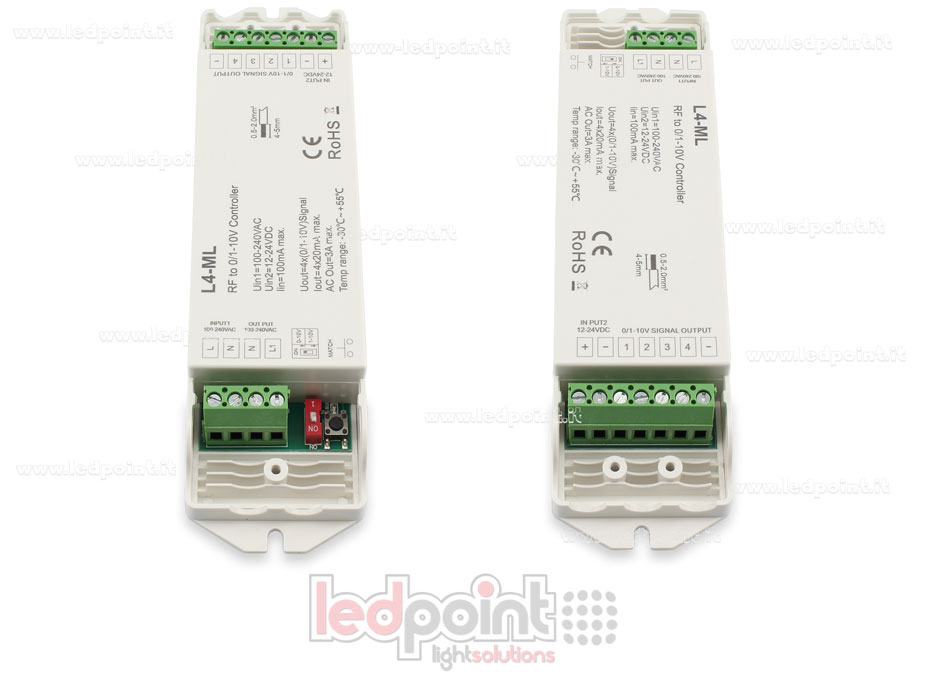

SKYDANCE SYSTEMS CATALOGUE FAQ Dimmer converter from RF to 0-10V with 4 channels, powered through CA or CC input. 4 channels 0-10V output signal to control 0/1-10V dimmable driver LED. High voltage AC input, high voltage AC relay output. 0-10 V or 1-10 V output selectable by DIP switch. It can be matched with all RF single-color, CCT, RGB and RGBW remote controls (up to 10 remote controls).
NOTE: the dimmer does not completely turn the LED strip off.
Technical parameters:
- Input voltage: 12-24 VDC / 230 VACV
- Channels: 4
- Output signal: 0/1-10V
- Frequency: RF 2.4GHz
- Receiver sizes: 175x45x27 mm
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
Documentation/Compliance
WEEE Information (Legislative Decree 49/2014) – professional use (Art. 26)
End-of-life disposal (WEEE – B2B).
This product is Electrical and Electronic Equipment intended for professional users and must not be disposed of with municipal waste. The crossed-out wheeled bin symbol indicates the obligation of separate collection. Improper handling (abandonment or unauthorized dismantling) may pose risks to the environment and human health.
For the collection of professional WEEE, please contact the WEEE Producer in Italy or the Consortium indicated below. Users are required to facilitate reuse, recycling, and recovery by delivering the product through the indicated channels.
WEEE Producer in Italy:
Ledpoint s.r.l. – Via Ettore Majorana, 15 – 48018 Faenza (RA) – Italy
WEEE Register No. IT16030000009247 – Consortium ECOLIGHT, Via Giotto 36 – 20145 Milan (MI)
