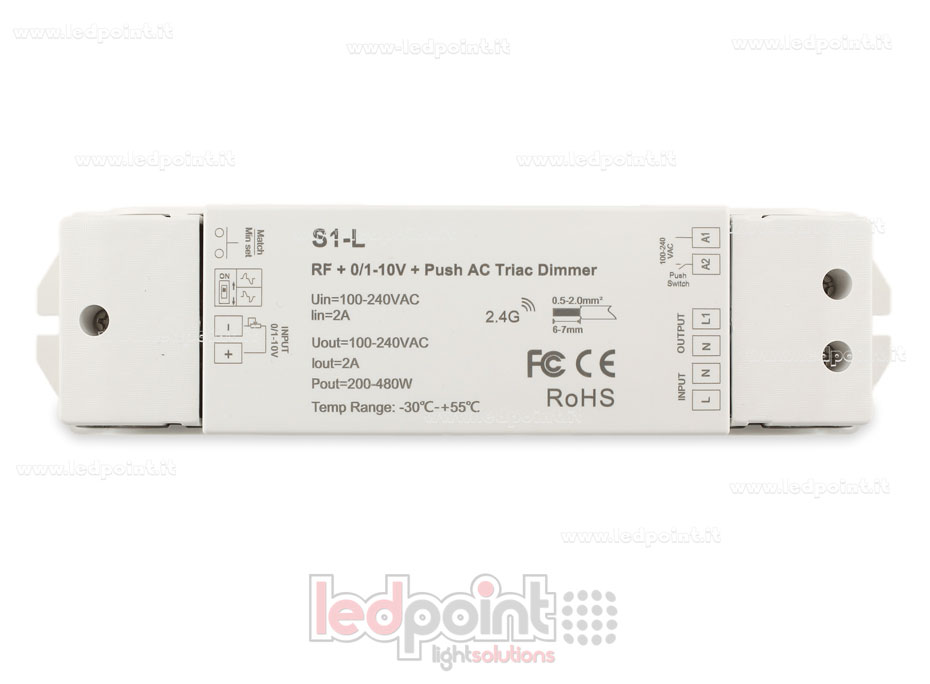

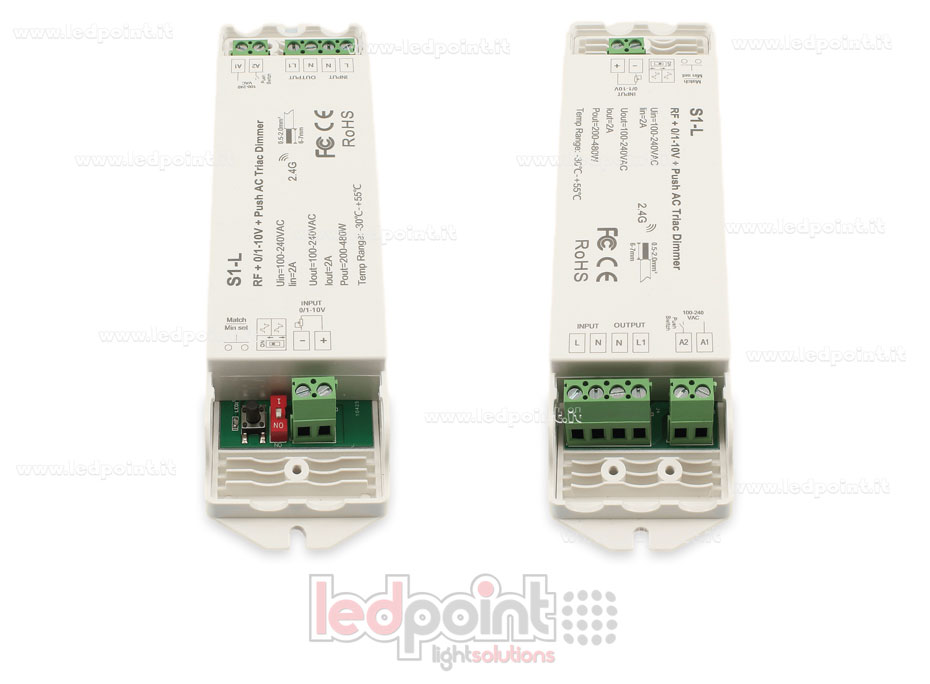

SKYDANCE SYSTEMS CATALOGUE FAQ RF, +0/1-10V, Push AC, phase cut dimmer with 1 x 2A output. Ideal for switching on/off or dimming triac LED drivers, 230V LED strips, conventional incandescent lamps and halogen lamps. Can be combined with all single or multi-zone monochromatic remote controls. An external switch or an active or passive 0-10V dimmer can be connected for on/off and dimming.
For more information, please log in to the website and consult the manual, if available.
Technical parameters:
- Input voltage: 110-240V
- Load current: 2A
- Channels: 1
- Max power: 200-480W
- Max total output: 2A
- Input signal: RF 2.4GHz + 0/1-10V + AC Push
- Output signal: AC Triac
- Connector: terminal block
- Working temperature: -30°C ~ +55°C
- Dimensions: 175x45x27 mm
ATTENTION: Wi-Fi connection can cause interference with the controller and, as a consequence, significantly reduce its range.
The use of shielded cables is recommended when installed near to cables plugged into the mains.
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
