Led strip was built with Honglitronic leds, version HL-AM-2835H421W-S1-08-HR3-3SDCM. The 3step LED allows to install or replace LED strips having the same colour temperature without seeing different shades of colour even for different product batches. For further information please consult LED datasheet.

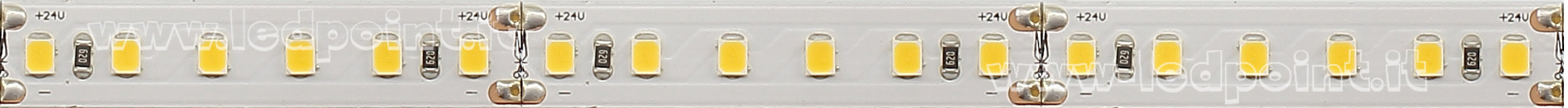

B52-30s-120822/14.4 is a flexible waterproof led strip with 3M self-adhesive on its back side for quick installation even on curve surfaces. It is covered by water-resistant Parylene protective film (10um on IP65 version and 25um on IP67 version). ATTENTION: the parylene strips cannot be exposed to direct sunlight. The ultraviolet rays rapidly damage the protection.
Tech specs:
- 2835 LED
- Lumens: 1560 lm/m
- Efficiency: 120 lm/W
- Strip LED colour temperature: 3000K 3step
- Power consumption 14,4 W/m (72W), 24V (+0%, -15%)
- Dimmable LED strip with 600 leds (120 leds/m)
- Led strip cuttable every 6 leds (every 5cm). Length 5 m, width 10 mm, height 1,5 mm
- Water protection: IP65
- PCB colour: White
- Double sided adhesive tape type: 3M 9495LE
- 10 cm power input cables on both sides of the strip
- Working temperature: -10°C ~ +50°C
- IEC/TR 62778:2014 photobiological risk certificate: risk Group 1 when used as light source.

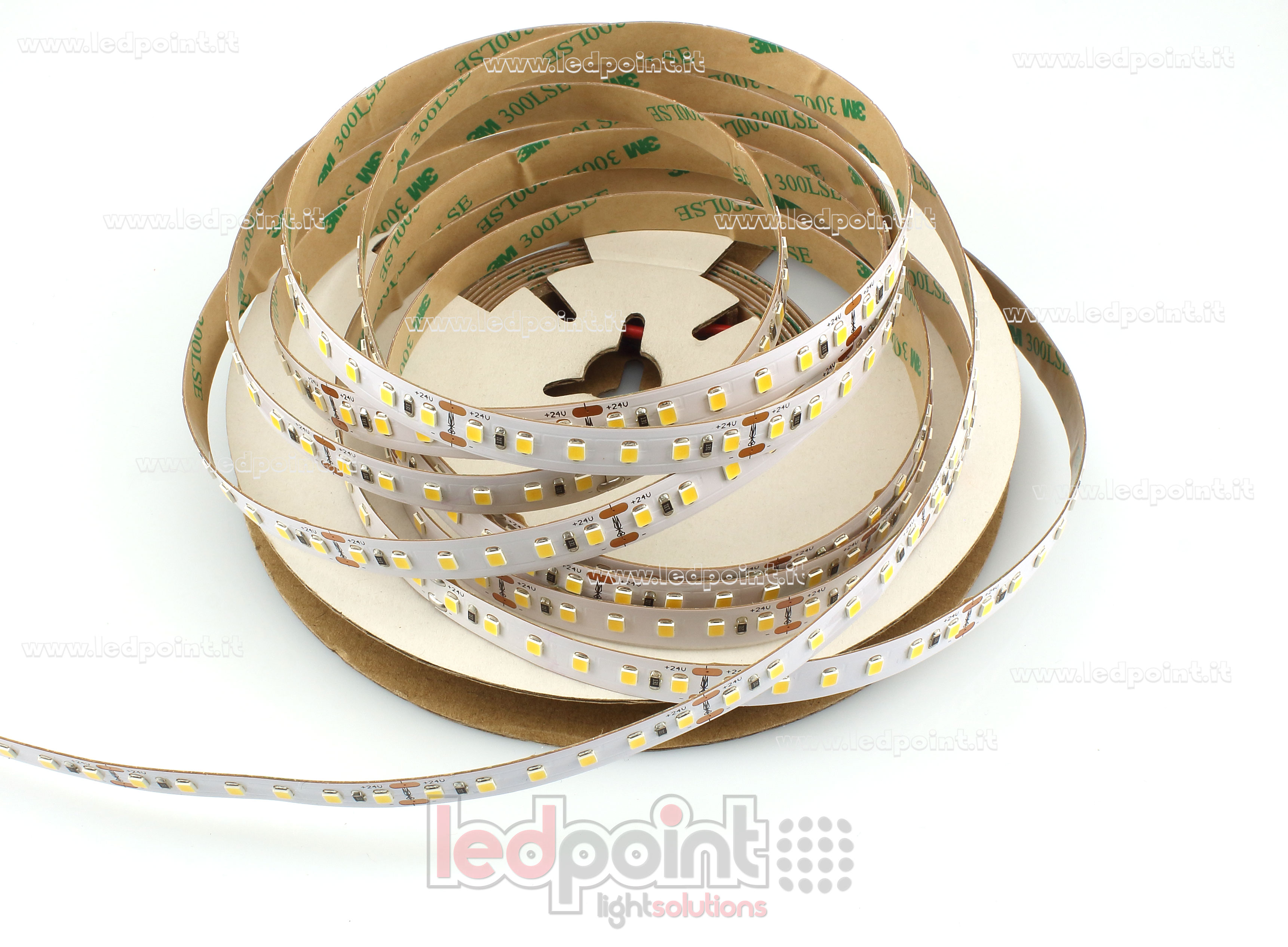

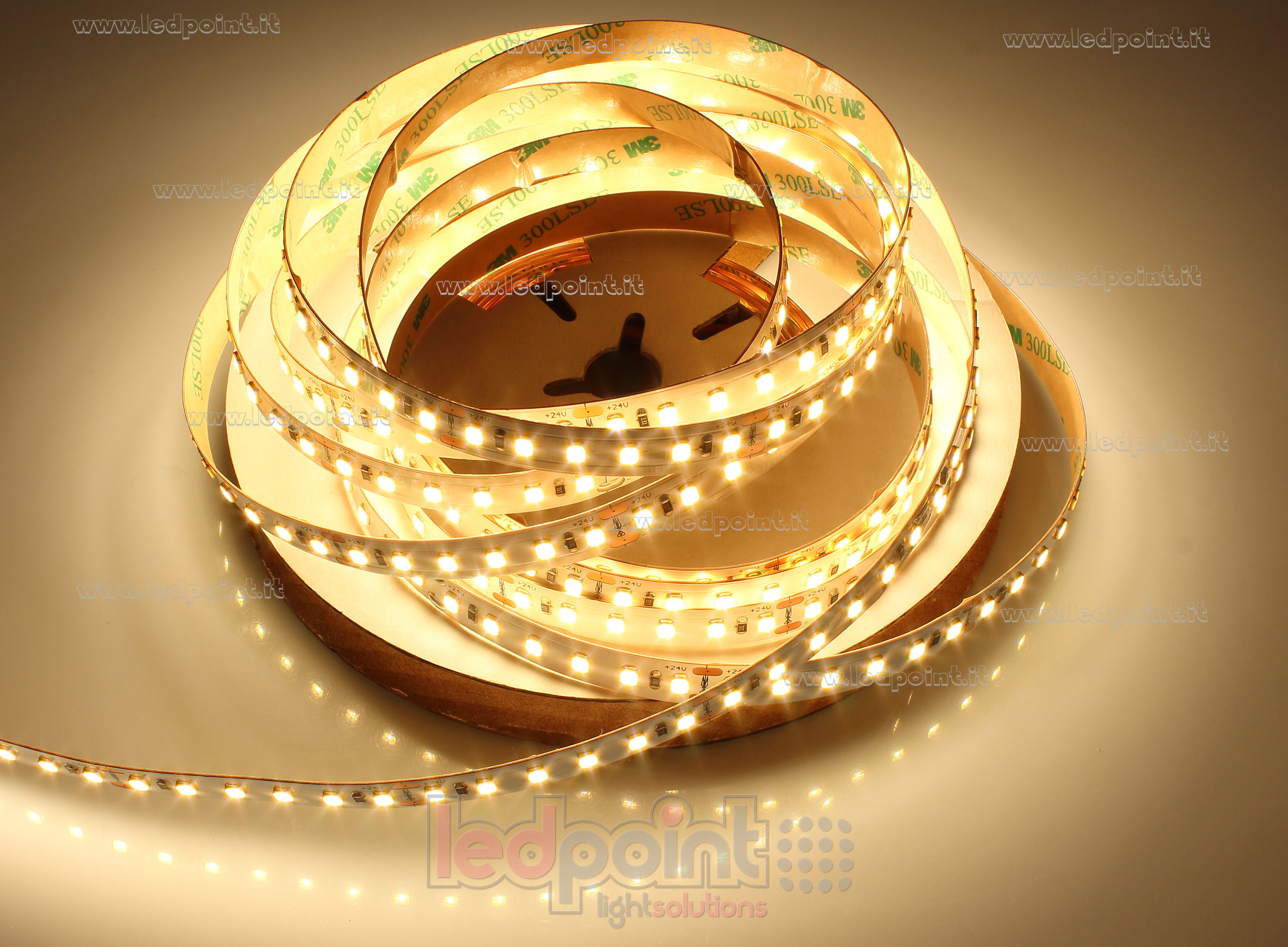

LED STRIP TURNED OFF'S ZOOM LED STRIP TURNED ON'S ZOOM
Led strip power consumption depends on how it is powered. For example, if we connect a 5 meter strip powered only on one side, its power consumption decreases by about 15%. The quantity of light generated by strips may slightly vary depending on the power supply tension, how they are powered and the temperature.
ATTENTION: it is highly recommended to use LED strips with metal heatsinks in order to dissipate the amount of heat generated. It would be much better to use anodized aluminium heatsinks. Do not use electrically conductive heatsinks to avoid short circuits that can damage the LED strip.
Purely indicative image to show the wiring of B52-30s-120822/14.4 strips.
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
