LED Strip made of COB LED chips that incorporate a controller WS2811 inside. These strips can be used only with the specific controllers.
LED control strips (also known as RGBIC) are controllable on a pixel-by-pixel basis using dedicated controllers. A pixel corresponds to the single cut of the strip.
The led strip F52-CoRGB-720OR2 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.
Tech specs:
- COB LED
- Control chip: WS2811
- Pixels per meter: 20
- Strip LED colour temperature: RGB
- Power consumption 19 W/m (95W), 24V (+0%, -15%)
- Dimmable LED strip with 3600 chips (720 chips/m)
- Led strip cuttable every 36 chips (every 5cm). Length 5 m, width 10 mm, height 2 mm
- PCB colour: White
- Double sided adhesive tape type: 3M 9495LE
- 10 cm power input cables on both sides of the strip
- Working temperature: -10°C ~ +45°C

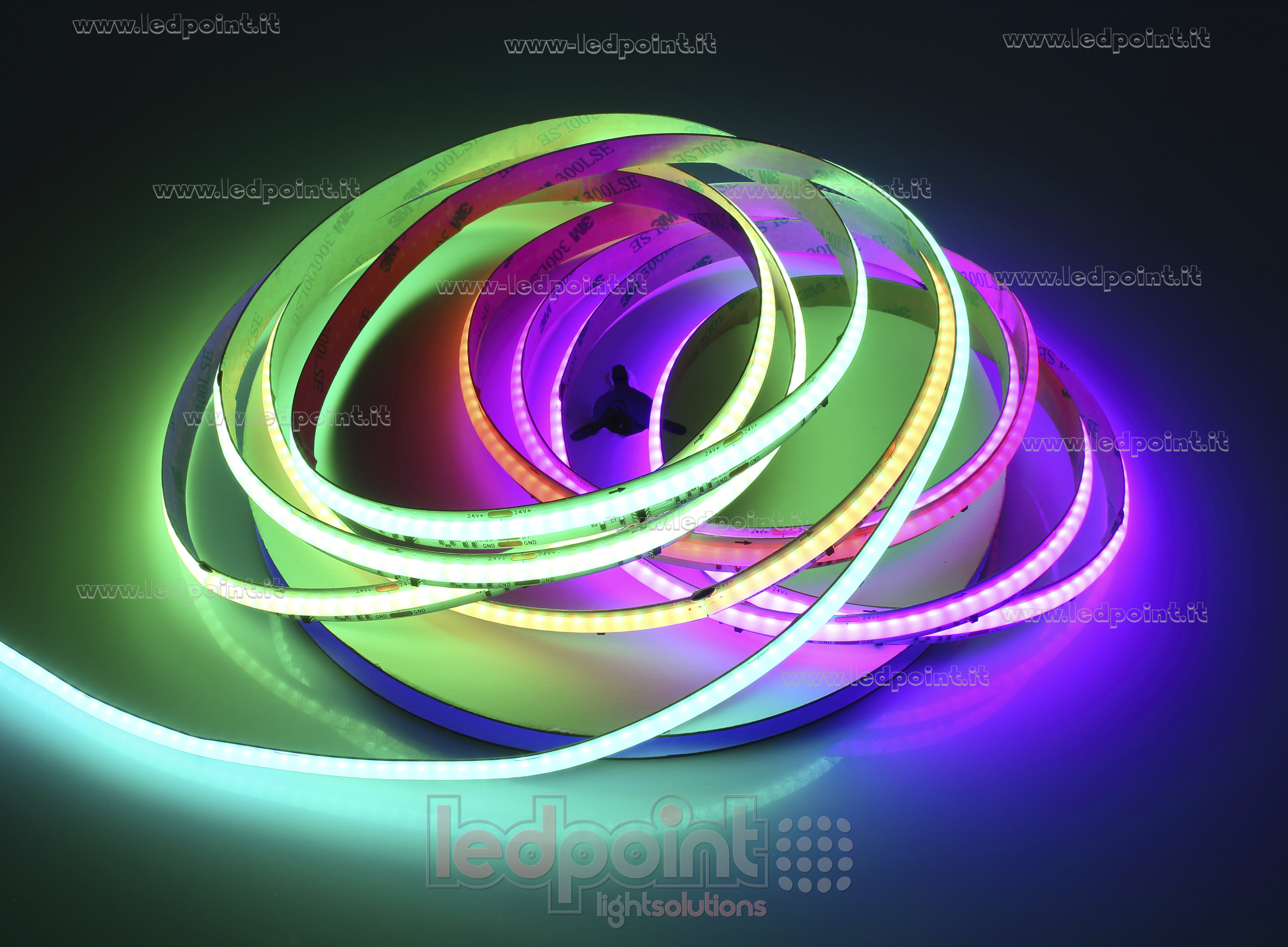

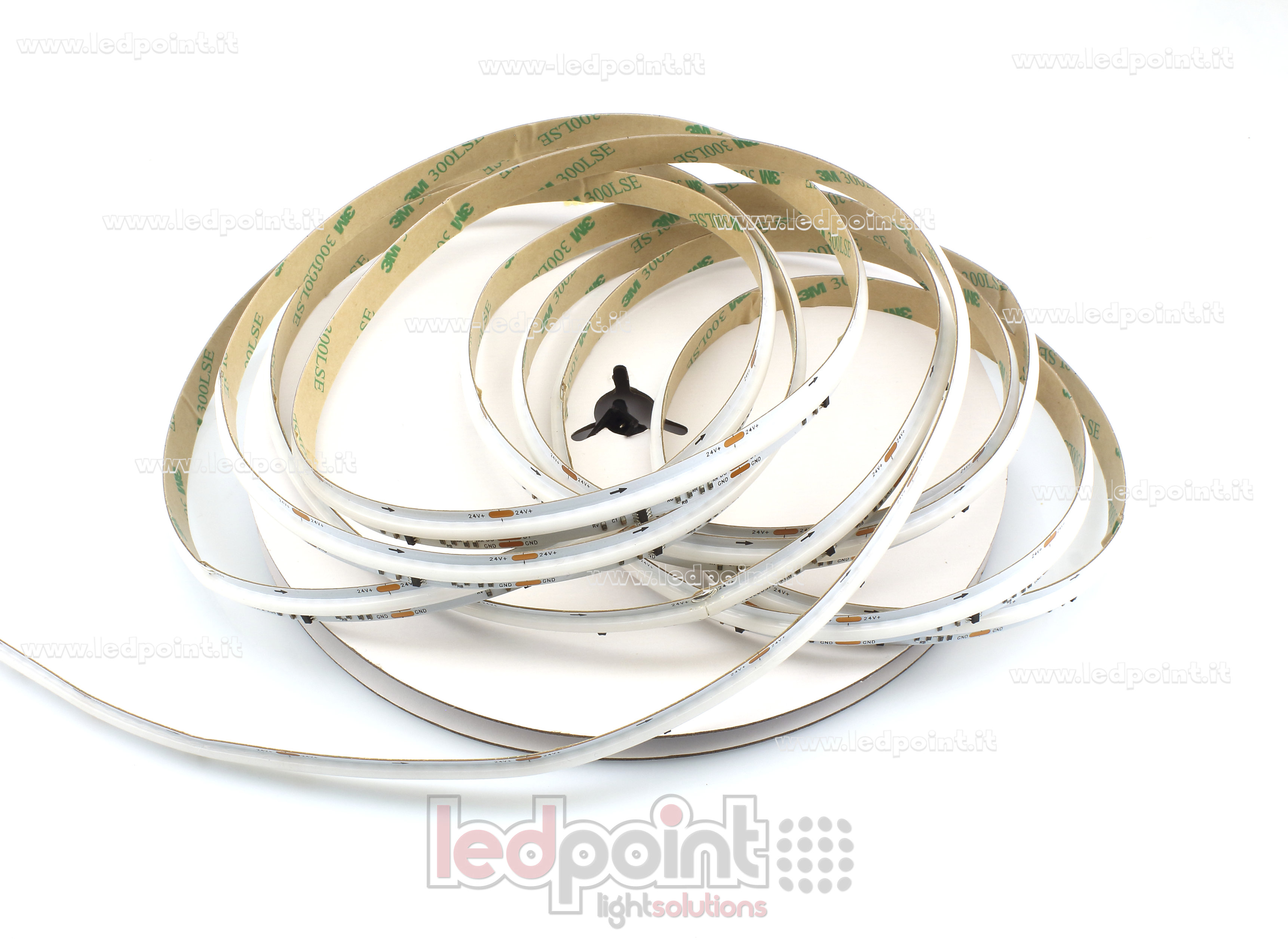

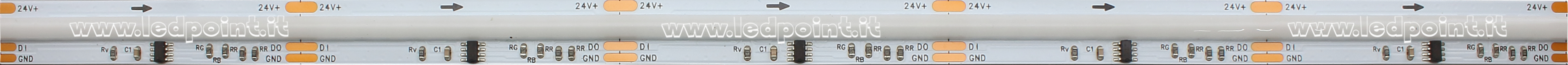

LED STRIP TURNED OFF'S ZOOM LED STRIP TURNED ON'S ZOOM
Led strip power consumption depends on how it is powered. For example, if we connect a 5 meter strip powered only on one side, its power consumption decreases by about 15%. The quantity of light generated by strips may slightly vary depending on the power supply tension, how they are powered and the temperature.
ATTENTION: it is highly recommended to use LED strips with metal heatsinks in order to dissipate the amount of heat generated. It would be much better to use anodized aluminium heatsinks. Do not use electrically conductive heatsinks to avoid short circuits that can damage the LED strip.
Purely indicative image to show the wiring of F52-CoRGB-720OR2 strips.
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
