The strip F52-R300-060512 is equipped with a 5050 4-in-1 led: its compact design allows RGB+3000K coloring to be enclosed in a single led. In this way, you can use two different functions by installing only one led strip. The colour temperature of white led has a very narrow range.
The led strip F52-R300-060512 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.
Tech specs:
- Strip LED colour temperature: 3000K + RGB
- Lumens white 3000K: 330 lm/m
- Efficiency white 3000K: 90 lm/W
- Dimmable LED strip with 60 leds/m.
- Power consumption RGB led + monochrome led 10,8 W/m + 3,6 W/m (72W), 24V (+0%, -15%),
- Led strip cuttable every 6 leds (every 10cm). Length 5 m, width 12 mm, height 2,5 mm
- PCB colour: White
- Double sided adhesive tape type: 3M 9495LE
- 10 cm power input cables on both sides of the strip
- Working temperature: -10°C ~ +45°C
Led strip power consumption depends on how it is powered. For example, if we connect a 5 meter strip powered only on one side, its power consumption decreases by about 15%. The quantity of light generated by strips may slightly vary depending on the power supply tension, how they are powered and the temperature.
ATTENTION: it is highly recommended to use LED strips with metal heatsinks in order to dissipate the amount of heat generated. It would be much better to use anodized aluminium heatsinks. Do not use electrically conductive heatsinks to avoid short circuits that can damage the LED strip.

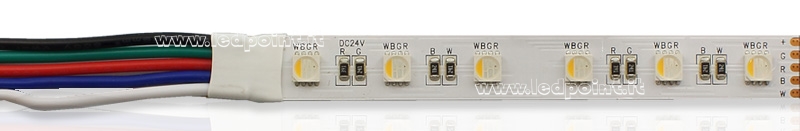

Purely indicative image to show the wiring of F52-R300-060512 strips.
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
