The led strip Lx2-600T-60822/4-2.8 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.
Tech specs:
- 2835 LED
- Lumens: 650 lm/m (estimated value)
- Efficiency: 90 lm/W
- Strip LED colour temperature: 6000K
- Power consumption 4,8 W/m (13,44W), 24V (+0%, -15%)
- Dimmable LED strip with 168 leds (60 leds/m)
- Led strip cuttable every 6 leds (every 10cm). Length 2,8 m, width 12 mm, height 4,5 mm
- Water protection: IP67
- Silicon colour: Transparent
- Double sided adhesive tape type: 3M 5604A VHB
- Working temperature: -10°C ~ +50°C
For a perfect adhesion of the double-sided tape the temperature both of the LED strip and the surface where it is installed should be between 21 and 38°C. The LED strip will be totally fixed after 72 hours approximately. The double-sided adhesive does not guarantee a seal on painted surfaces.

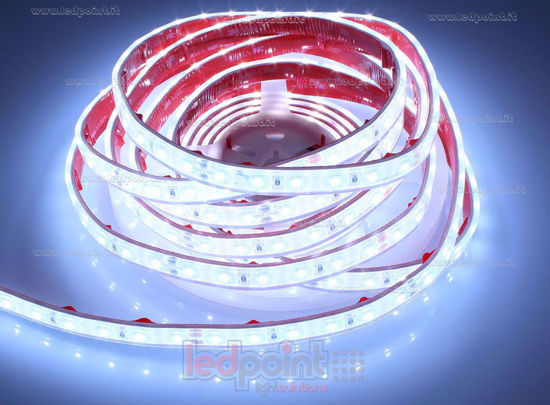

LED STRIP TURNED OFF'S ZOOM LED STRIP TURNED ON'S ZOOM
Led strip power consumption depends on how it is powered. For example, if we connect a 5 meter strip powered only on one side, its power consumption decreases by about 15%. The quantity of light generated by strips may slightly vary depending on the power supply tension, how they are powered and the temperature.
Purely indicative image to show the wiring of Lx2-600T-60822/4-2.8 strips.
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
