LA2-870W-264N12 is a flexible waterproof led strip with 3M self-adhesive on its back side for quick installation even on curve surfaces.
Tech specs:
- Lumens: 1230 lm/m
- Efficiency: 110 lm/W
- Strip LED colour temperature: 8700K
- Power consumption 12 W/m (120W), 24V (+0%, -15%)
- Dimmable LED strip with 2640 leds (264 leds/m)
- Led strip cuttable every 8 leds (every 3,03cm). Length 10 m, width 10 mm, height 5 mm
- Silicon colour: White
- Double sided adhesive tape type: Nano Double-Sided Tape
- Working temperature: -10°C ~ +50°C
For a perfect adhesion of the double-sided tape the temperature both of the LED strip and the surface where it is installed should be between 21 and 38°C. The LED strip will be totally fixed after 72 hours approximately. The double-sided adhesive does not guarantee a seal on painted surfaces.

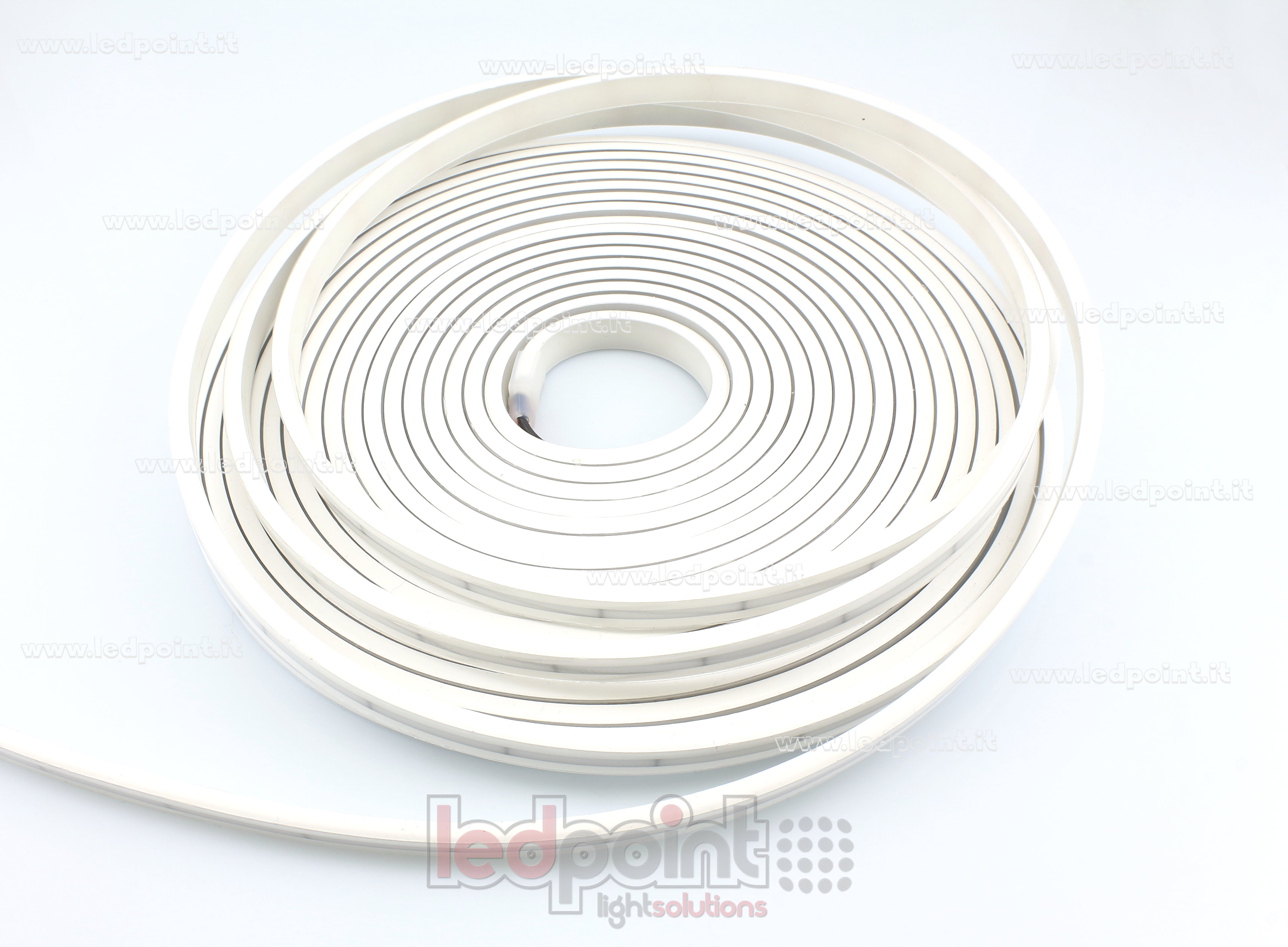

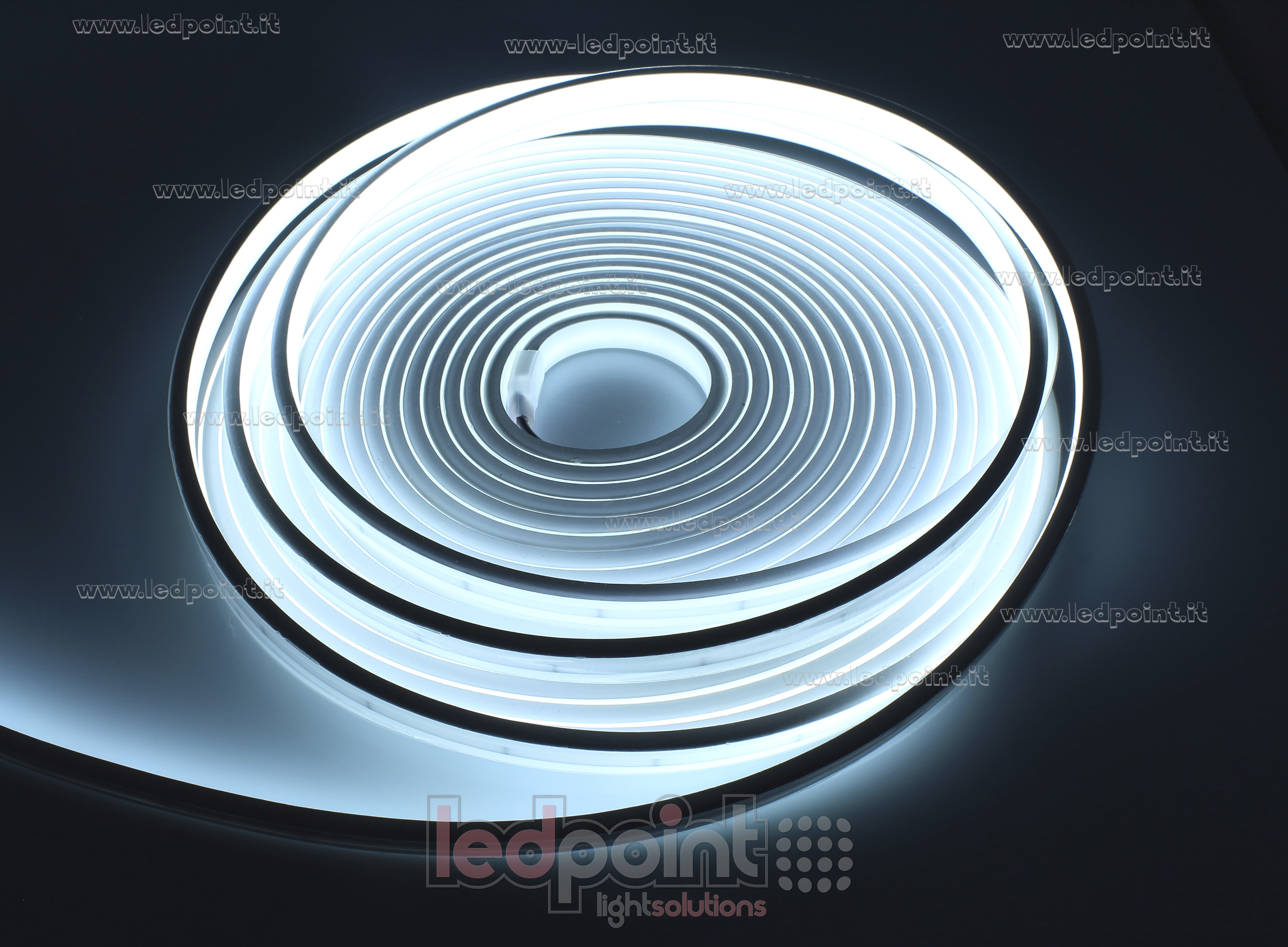

LED STRIP TURNED OFF'S ZOOM LED STRIP TURNED ON'S ZOOM
Led strip power consumption depends on how it is powered. For example, if we connect a 5 meter strip powered only on one side, its power consumption decreases by about 15%. The quantity of light generated by strips may slightly vary depending on the power supply tension, how they are powered and the temperature.
Purely indicative image to show the wiring of LA2-870W-264N12 strips.
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
