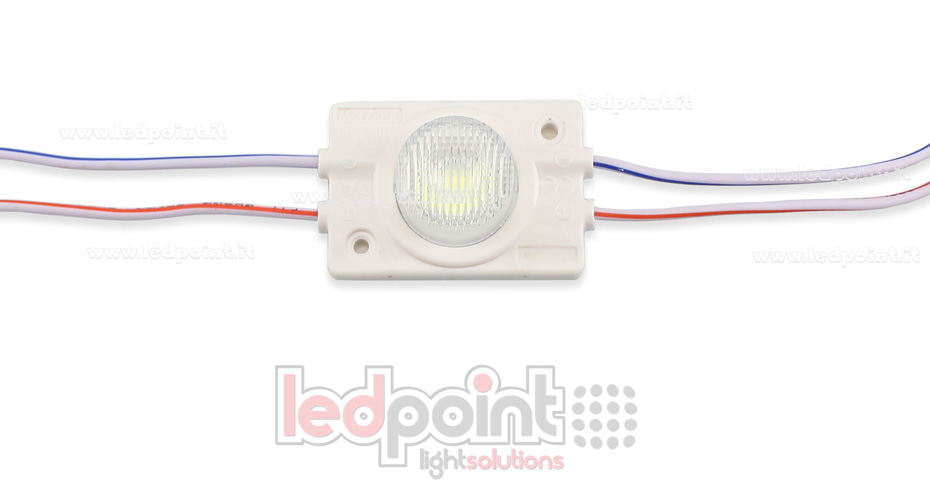

FAQ LED module 3030, 1,2W 12V, cold white 7000-8000K, IP65 with 13°*42° lens
- Led 3030
- Lumens: 110 lm (estimated value)
- Led colour temperature: Pure white
- LED module with 1 led/mod
- Input voltage 12 volt (+0%, -15%), power consumption 1,2 W/mod
- LED module cuttable every 1 module(s)
- Sizes: 41x27x11 mm
- Modules' interaxle distance: 150 mm
- Beam angle: 13x42°
- Available in units of: 20

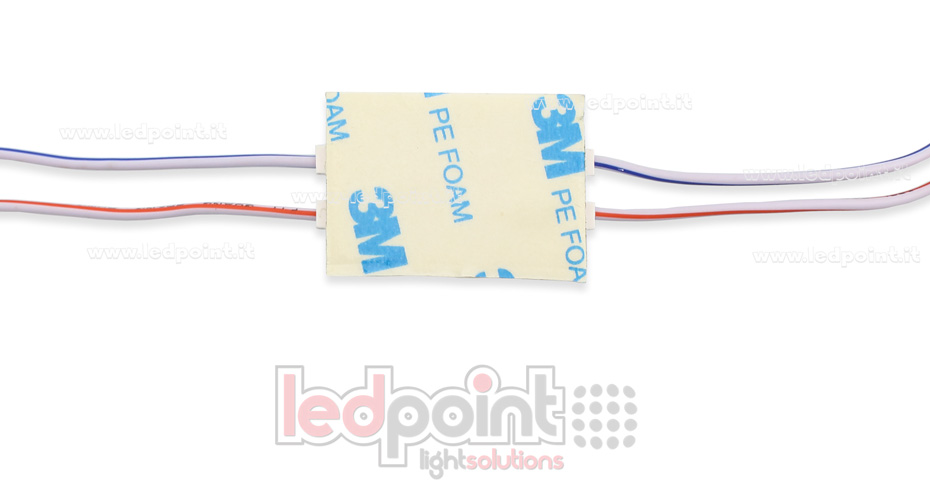

- LED modules feature double-sided tape for an easy installation

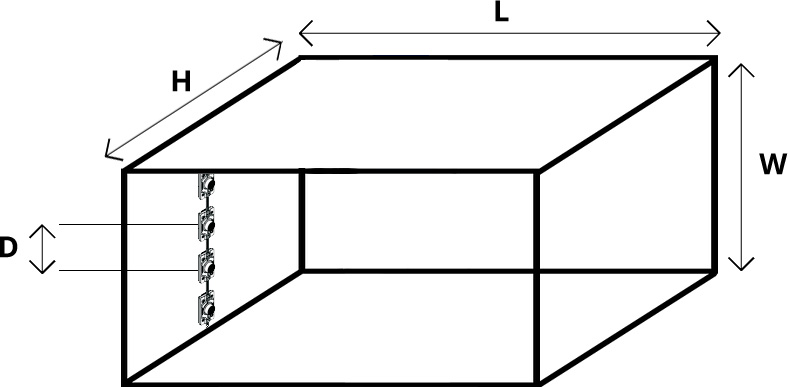

| Depth (mm) | Dimension (mm) | Arrangement Distance (mm) | Module Qty (pcs/) | Lux/m2 |
| H=120 | 600*500 | 65 | 8 | 1000-1200 |
| H=80 | 1200*300 | 65 | 18 | 1000-1150 |
| H=100 | 1000*300 | 70 | 14 | 900-1100 |
| H=120 | 1500*800 | 70 | 44 | 1000-1200 |
LED modules ModD-700-01E1/1.2 are sold in unit of 20 pieces.
