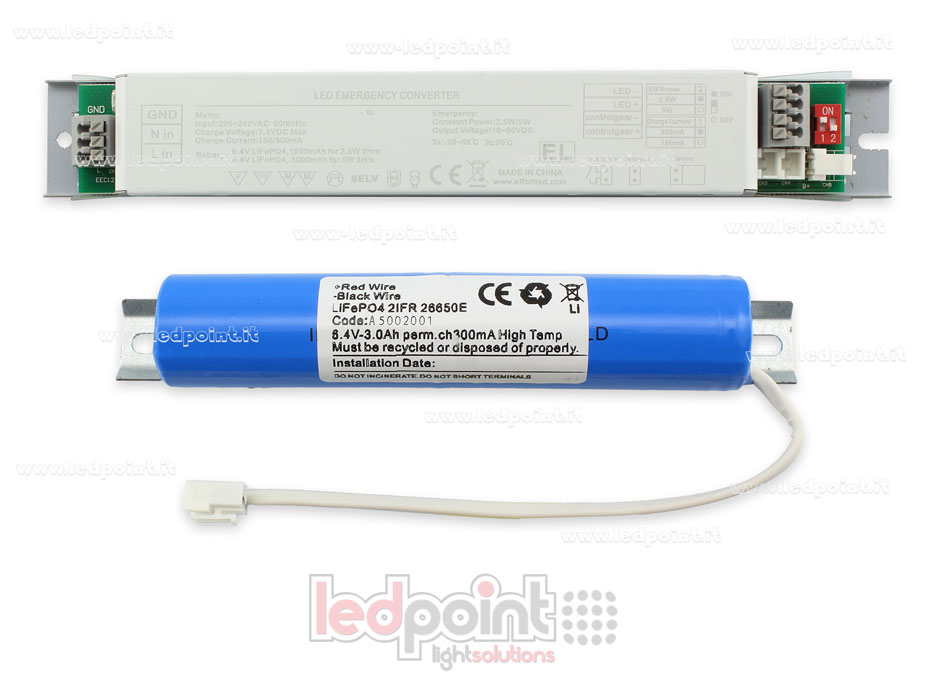

Emergency kit 3h working time battery 3A LiFePO4, 5W 300mA 10-60V 230V

• Power supply type: CC
• Max power: 5W
• Input voltage: 230V
• Output voltage: 10~60V
• Protection grade: IP20
• Converter dimensions:220x30x21 mm
• Battery dimensions: 160x25x30 (hole 5x10 mm)
• Battery cable length: 15 cm

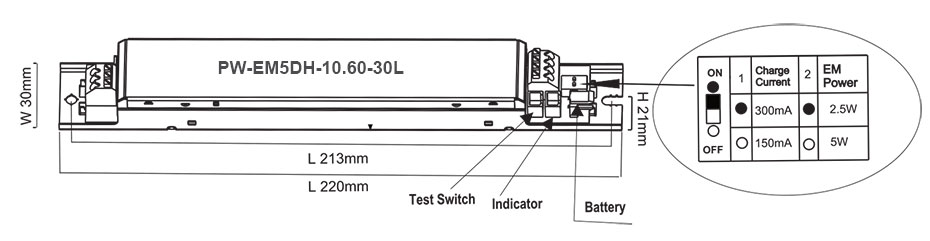

Mechanical Outline

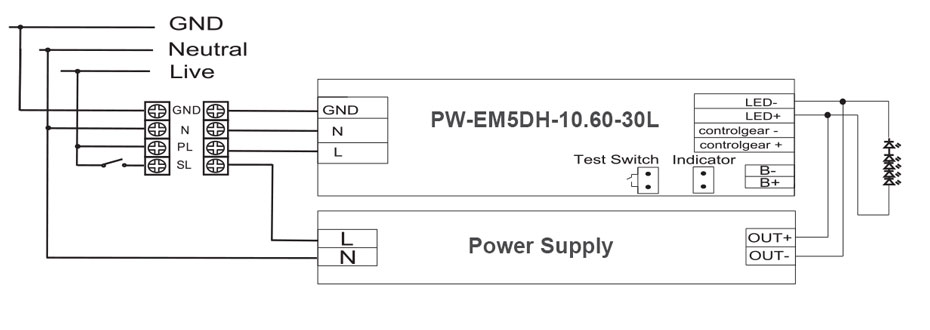

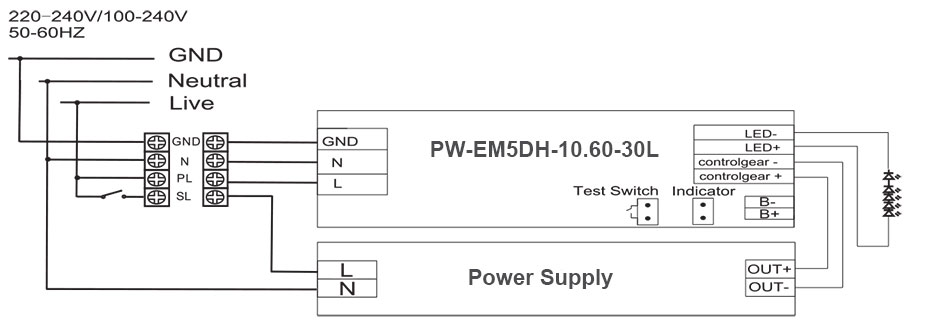

Wiring Diagram

1. The output current of LED driver is under 3A.

2. The output current of LED driver is over 3A.

Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
