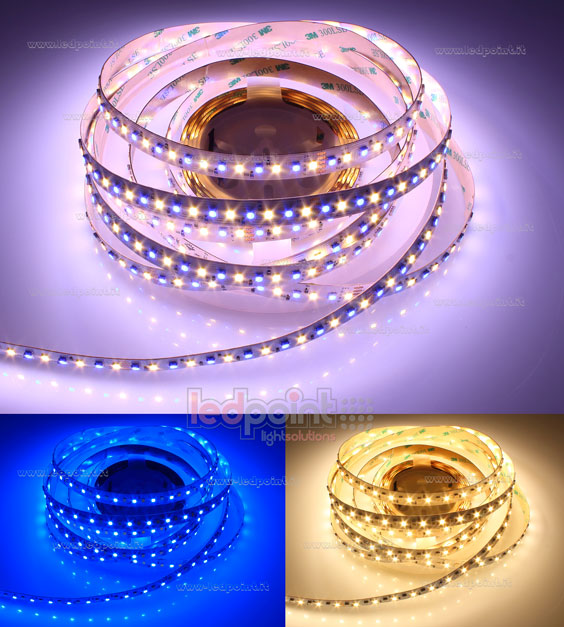

PCB TYPE IP GRADE DOUBLE SIDED TAPE SHADES OF WHITE TECHNICAL DETAILS CATALOGUE SMD FAQ The F52-R30s-140H12 led strip produced with two different leds: a white 2835 led for a good lighting and a RGB led for colour changing effects. In this way, you can use two different functions by installing only one led strip. The colour temperature of white led has a very narrow range.
The led strip F52-R30s-140H12 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.
Tech specs:
- Strip LED colour temperature: 3000K 3step + RGB
- Lumens white 3000K: 1660 lm/m
- Efficiency white 3000K: 125 lm/W
- Dimmable LED strip with 70+70 leds/m.
- Power consumption RGB led + monochrome led 14,4 W/m + 14,4 W/m (144W), 24V (+0%, -15%),
- Led strip cutting points every 14 leds (every 10cm). Length 5000 m, width 12 mm, height 2 mm
- PCB colour: White
- Double sided adhesive tape type: 3M 9495LE
- 10 cm power input cables on both sides of the strip
- Working temperature: -10°C ~ +50°C
ATTENTION: Due to its complex structure it is recommended to handle the strip with care to avoid damage.
Led strip power consumption depends on how it is powered. For example, if we connect a 5 meter strip powered only on one side, its power consumption decreases by about 15%. The quantity of light generated by strips may slightly vary depending on the power supply tension, how they are powered and the temperature.
ATTENTION: it is highly recommended to use LED strips with metal heatsinks in order to dissipate the amount of heat generated. It would be much better to use anodized aluminium heatsinks. Do not use electrically conductive heatsinks to avoid short circuits that can damage the LED strip.

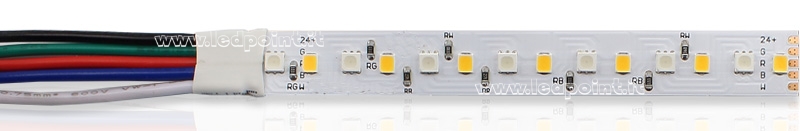

Purely indicative image to show the wiring of F52-R30s-140H12 strips.
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
