Led strip was built with Honglitronic leds, version HL-A-2835H421W-S1-08-HR3. A very narrow range of colour temperature 4000-4250K ensures colour stability even for different lots. For further information please consult LED datasheet.
The led strip F52-400-60822 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.
Tech specs:
- 2835 LED
- Lumens: 1430 lm/m
- Efficiency: 110 lm/W
- Strip LED colour temperature: 4000-4250K
- Power consumption 14,4 W/m (72W), 24V (+0%, -15%)
- Dimmable LED strip with 300 leds (60 leds/m)
- Led strip cuttable every 6 leds (every 10cm). Length 5 m, width 10 mm, height 1,5 mm
- PCB colour: White
- Double sided adhesive tape type: 3M 9495LE
- 10 cm power input cables on both sides of the strip
- Working temperature: -10°C ~ +50°C
- IEC/TR 62778:2014 photobiological risk certificate: risk Group 1 when used as light source.

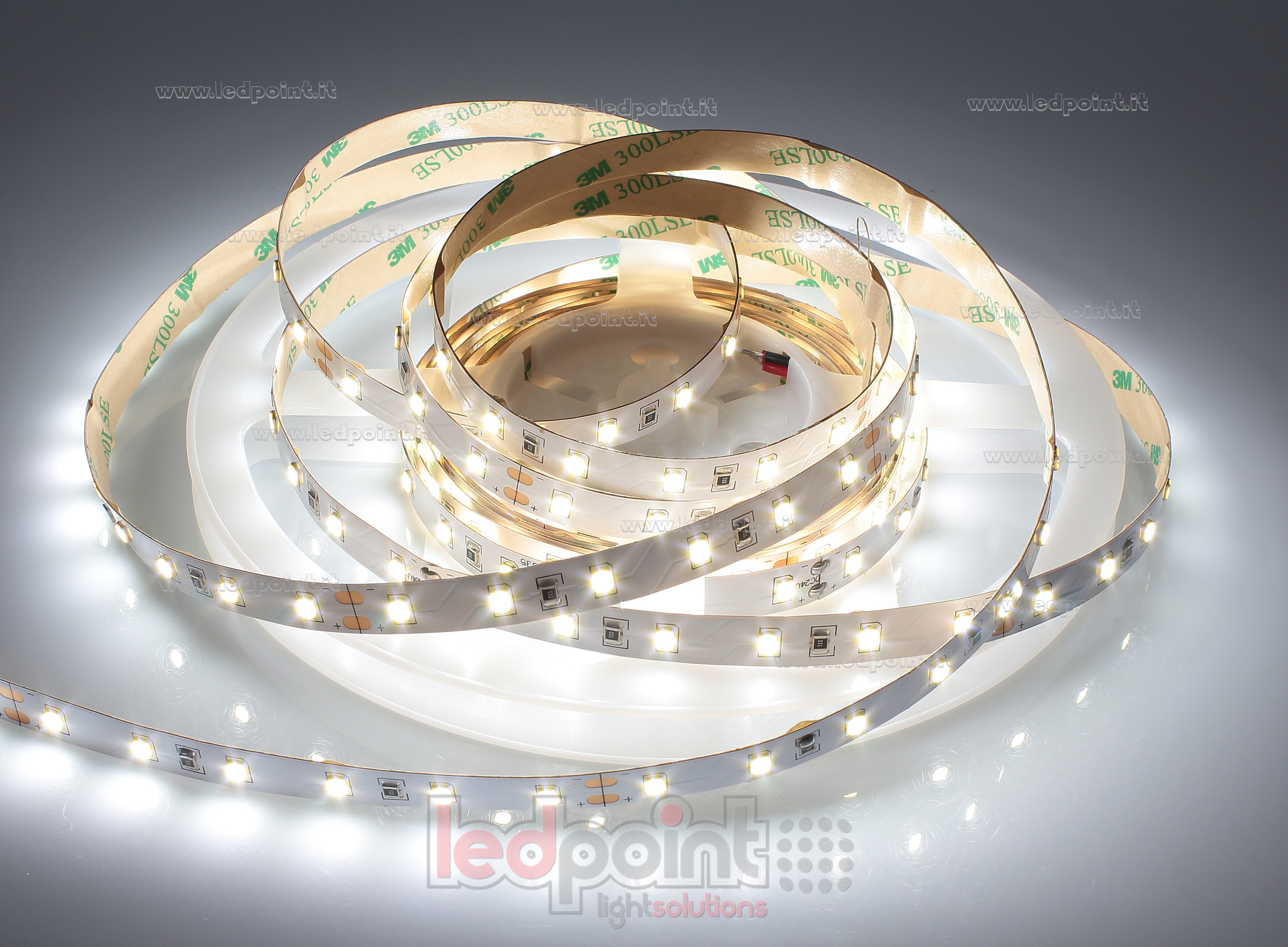

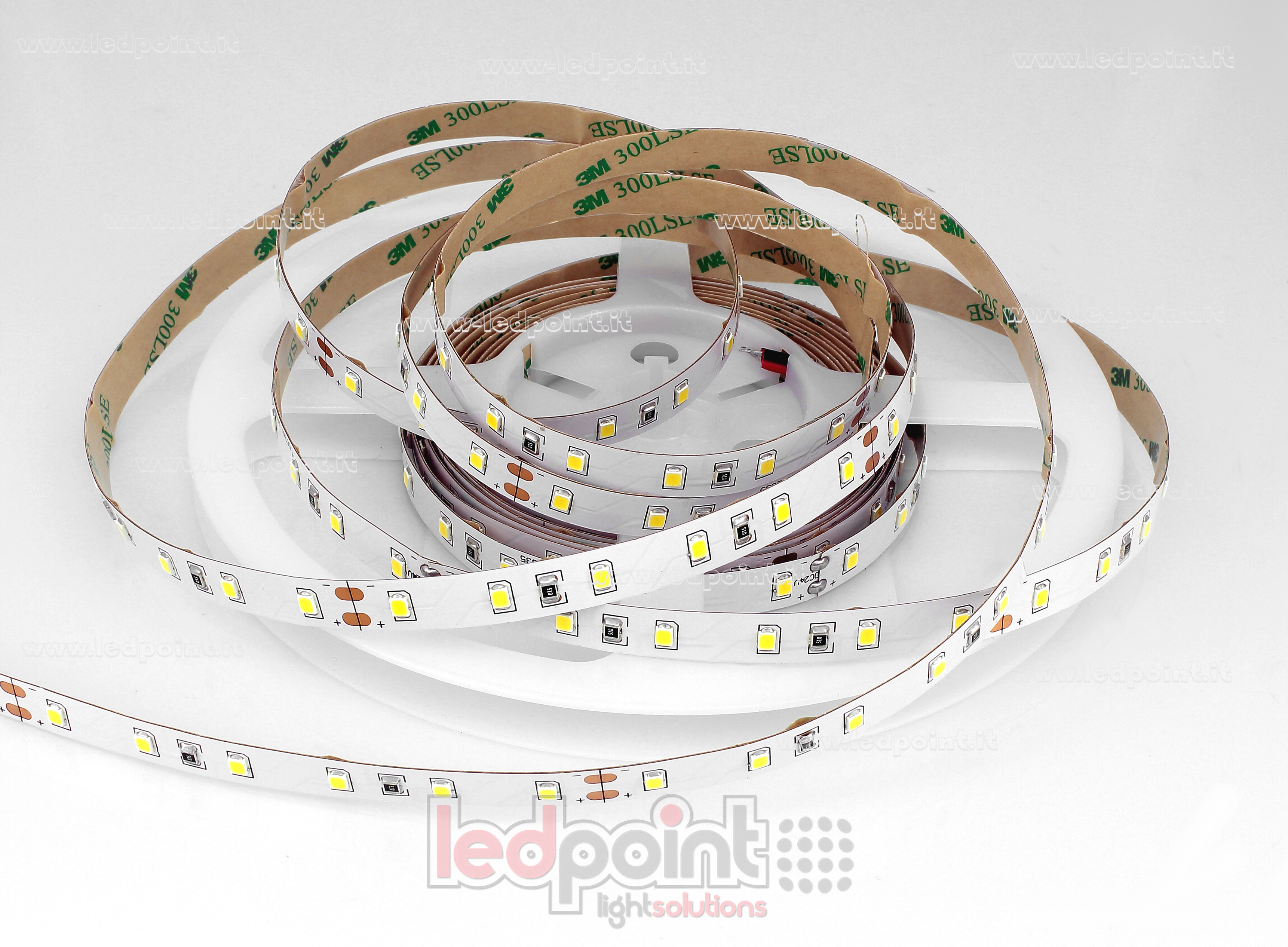

LED STRIP TURNED OFF'S ZOOM LED STRIP TURNED ON'S ZOOM
Led strip power consumption depends on how it is powered. For example, if we connect a 5 meter strip powered only on one side, its power consumption decreases by about 15%. The quantity of light generated by strips may slightly vary depending on the power supply tension, how they are powered and the temperature.
ATTENTION: it is highly recommended to use LED strips with metal heatsinks in order to dissipate the amount of heat generated. It would be much better to use anodized aluminium heatsinks. Do not use electrically conductive heatsinks to avoid short circuits that can damage the LED strip.
The image is just an example and has the aim to show cables of LED strips F52-400-60822.
