Led strip was built with Honglitronic leds, version HL-A-2835H421W-S1-08-HR3. A very narrow range of colour temperature 6000-6500K ensures colour stability even for different lots. For further information please consult LED datasheet. The silicone strips do not have adhesive on the back side.
- 2835 LED
- Lumens per meter: 1230 lm
- Strip LED colour temperature: 6000-6500K
- Led colour temperature: 4000-4250K
- Dimmable LED strip with 300 led (60 led/m)
- Input voltage 24V (+0%, -15%), power consumption 72W (14,4 W/m)
- Led strip cuttable every 6 leds (every 10cm). Length 5 m, width 12 mm, height 4,5 mm
- PCB colour: White
- Double sided adhesive tape type: %BIADESIVO%
- Power input cables on both sides of the strip
Product code: S52-400-060822

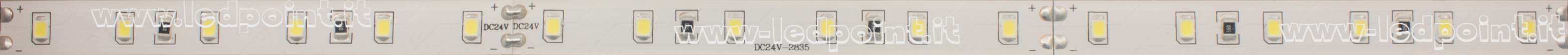

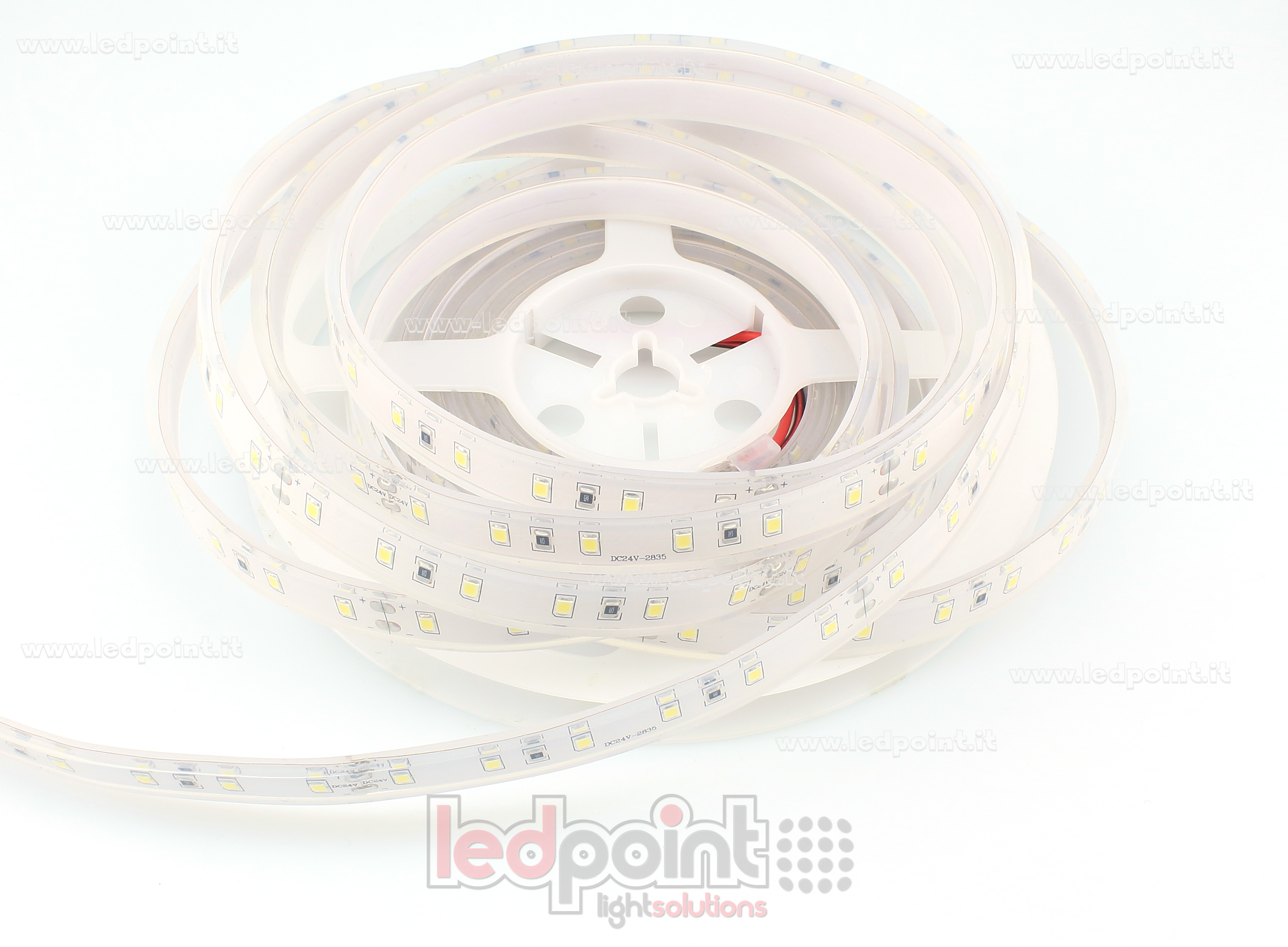

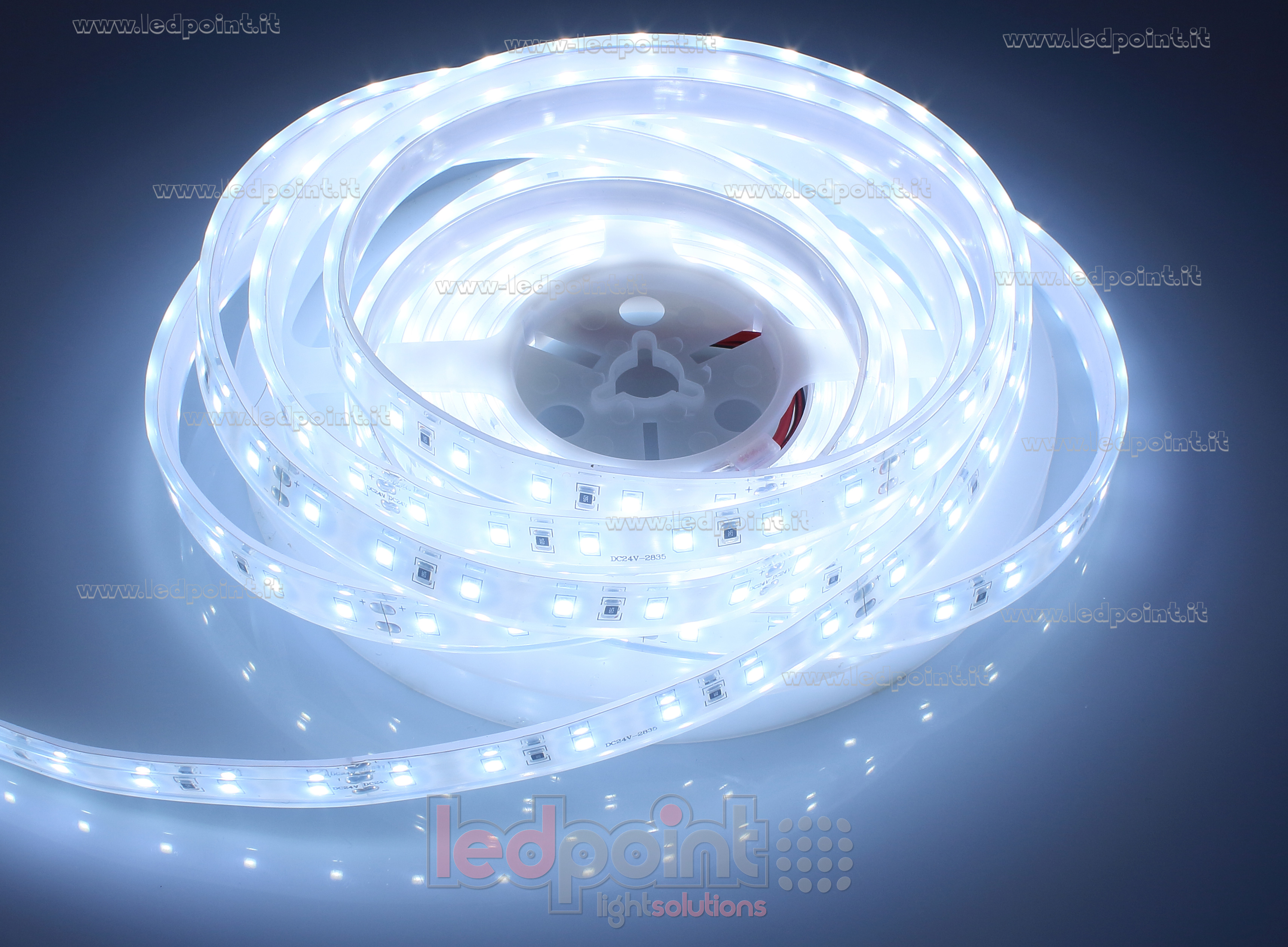

LED STRIP TURNED OFF'S ZOOM LED STRIP TURNED ON'S ZOOM
Led strip power consumption depends on how it is powered. For example, if we connect a 5 meter strip powered only on one side, its power consumption decreases by about 15%. The quantity of light generated by strips may slightly vary depending on the power supply tension, how they are powered and the temperature.
The image is just an example and has the aim to show cables of LED strips S52-400-060822.
