The F52-R400-140212 led strip produced with two different leds: a white 2835 led for a good lighting and a RGB led for colour changing effects. In this way, you can use two different functions by installing only one led strip. The colour temperature of white led has a very narrow range.

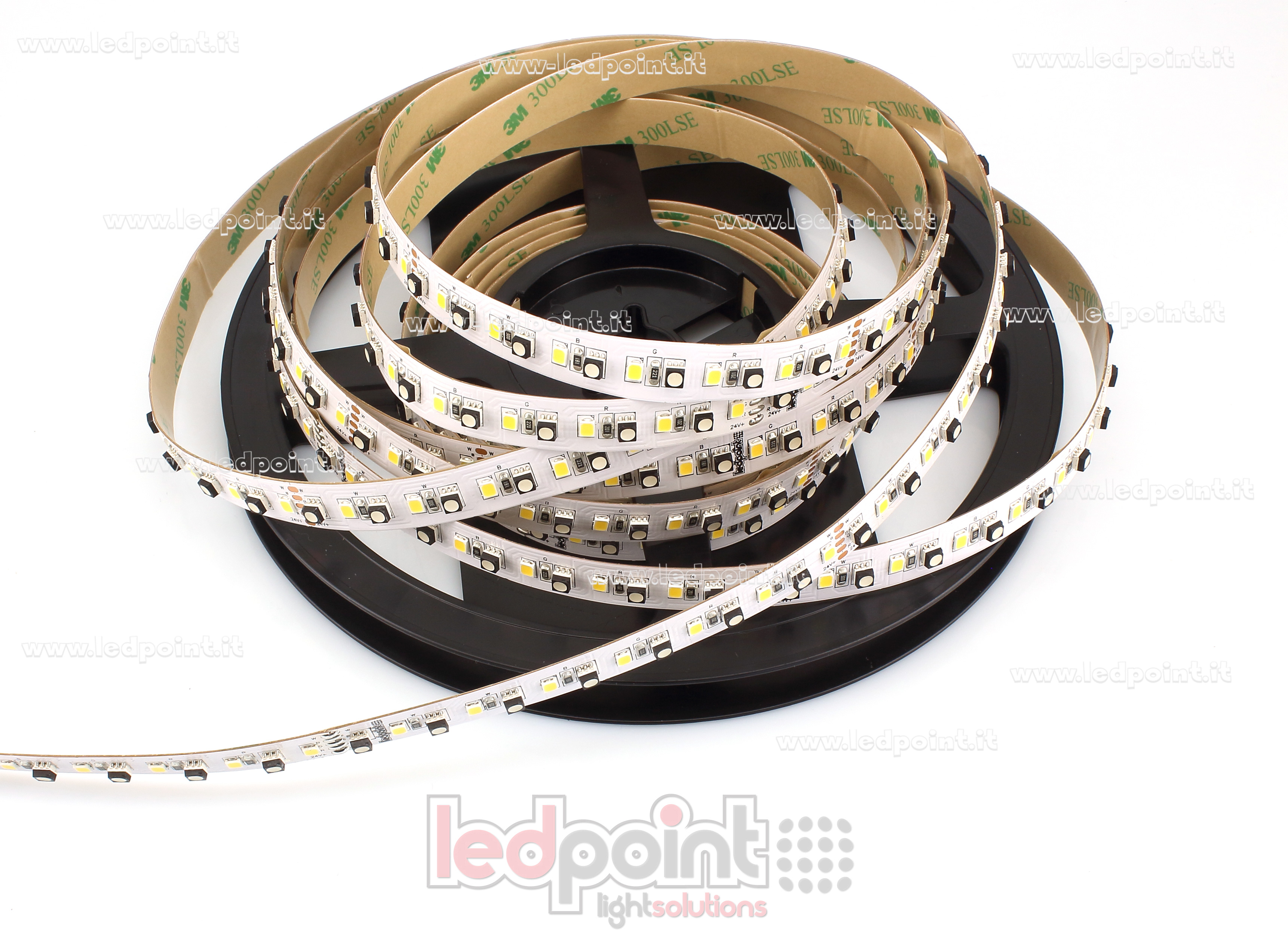

The led strip F52-R400-140212 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.
Tech specs:
- Strip LED colour temperature: 4000-4300K + RGB
- Lumens white %COLTEMP4%K: %LUMENCOL4% lm/m
- Efficiency white %COLTEMP4%K: %LUMENWATTWW% lm/W
- Dimmable LED strip with 140 leds/m.
- Power consumption RGB led + monochrome led %WATTM2% W/m + 28,8 W/m (144W), 24V (+0%, -15%),

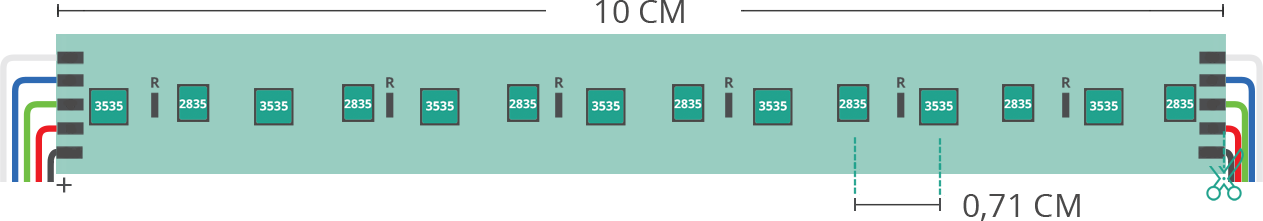

- Led strip cutting points every 14 leds (every 10cm). Length 5 m, width 12 mm, height 3,5 mm
- PCB colour: White
- Double sided adhesive tape type: %BIADESIVO%
- 10 cm power input cables on both sides of the strip
- Working temperature: -10°C ~ +45°C
ATTENTION: Due to its complex structure it is recommended to handle the strip with care to avoid damage.
Led strip power consumption depends on how it is powered. For example, if we connect a 5 meter strip powered only on one side, its power consumption decreases by about 15%. The quantity of light generated by strips may slightly vary depending on the power supply tension, how they are powered and the temperature.
ATTENTION: it is highly recommended to use LED strips with metal heatsinks in order to dissipate the amount of heat generated. It would be much better to use anodized aluminium heatsinks. Do not use electrically conductive heatsinks to avoid short circuits that can damage the LED strip.
The image is just an example and has the aim to show cables of LED strips F52-R400-140212.
