Eyes and Lighting: Consequences, Regulations, and Solutions

Poor-quality artificial lighting does not cause blindness, but it causes visual fatigue, headaches, dry eyes, and a drop in productivity. The four parameters that determine eye comfort are illuminance (lux), absence of flicker, glare control (UGR ≤ 19), and color rendering (CRI ≥ 90). Correcting them eliminates most visual discomfort in indoor environments.

We spend between 85% and 90% of our lives indoors. This means that the eyes of a European adult receive, over the course of a year, much more artificial light than sunlight: we are talking about roughly 5,000 hours in front of sources designed by someone else, often choosing the cheapest product on the shelf. Yet the human visual system evolved over two million years under a continuous solar spectrum, with gradual transitions in intensity and color temperature, and with a flicker strictly equal to zero.

The result of this misalignment is not an acute pathology, and that is exactly what makes it insidious. It is a daily tax paid in burning eyes at five in the afternoon, in frontal headaches attributed to stress, in reading errors, in sleep that doesn't come. Study after study shows that between 50% and 90% of those who work in front of a screen report at least one symptom of digital visual fatigue, and that a significant portion of these symptoms does not depend on the screen but on the light around the screen.

This guide is written to understand the mechanism and be able to solve it. In the first half, you will find physiology, epidemiological data, regulatory parameters, and units of measure explained without shortcuts. In the second half, there is the design method, the technical criteria for choosing components, room-by-room solutions, the most frequent errors, Ledpoint's internal laboratory tests, and an operational checklist. At the end of the article, you will be able to read a technical data sheet and understand, in thirty seconds, whether that light source will work for or against the well-being of your eyes.

In this article...

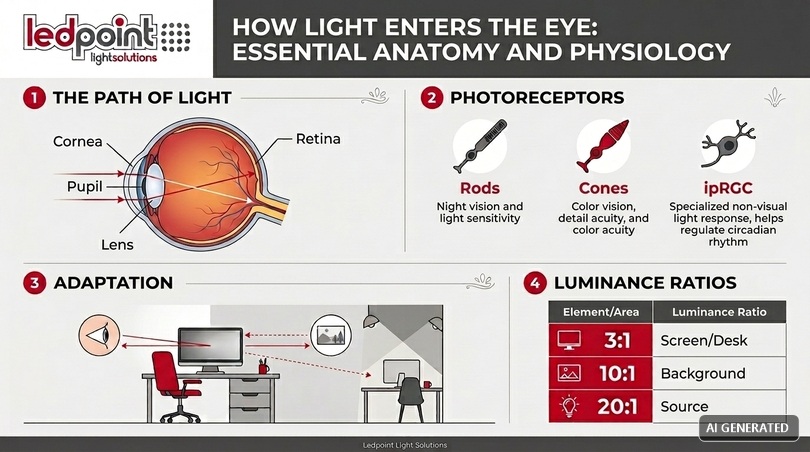

1. How light enters the eye: essential anatomy and physiology

To understand why a three-dollar lightbulb can give you a headache and a well-designed LED profile doesn't, we need to start with the hardware. The human eye is not a passive camera: it is an active optical system that continuously regulates aperture, focus, and sensitivity, and every regulation has a metabolic cost. When the lighting environment is unstable, non-uniform, or spectrally poor, that cost accumulates.

In this section, we reconstruct the path of light from the cornea to the visual cortex, identifying exactly the points where poor lighting introduces fatigue. You don't need a degree in optometry: you need five concepts, and we will look at them one by one.

The path of light: cornea, pupil, lens, retina

Light passes sequentially through four structures before becoming a nervous signal. Each of these structures is a potential point of fatigue if the ambient lighting is wrong.

The cornea is the first lens: it provides about two-thirds of the eye's total refractive power (roughly 40 of the overall 60 diopters). It is avascular and is largely nourished by the tear film. Here the first environmental effect comes into play: when we stare at a screen or a demanding visual task, the blink rate drops from about 15-20 blinks per minute to 5-7. The tear film evaporates, the corneal surface dries in patches, and optical quality worsens. The sensation of "burning eyes" at the end of the day is in most cases a tear film problem, not a retina problem.

The pupil is the diaphragm. Its diameter varies between about 2 mm in bright light and 8 mm in the dark, an area ratio of about 1:16. The pupillary reflex is rapid (fractions of a second) but not free: it is governed by two antagonist muscles of the iris, the sphincter and the dilator. An environment with strong luminous non-uniformities forces the pupil to oscillate continuously, a phenomenon called "pupillary instability" which is one of the documented mechanical causes of the sensation of eye strain.

The lens is the variable focus lens. It changes shape thanks to the ciliary muscle to focus on nearby objects: it is the process of accommodation. Looking at a screen at 50 cm requires about 2 diopters of sustained accommodation; maintaining it for eight hours is the visual equivalent of holding a weight with an outstretched arm. When lighting is poor, the visual system loses depth of field and accommodation must work with greater precision, further increasing the load.

The retina converts photons into electrical impulses. This is where the type of light, and not just the quantity, really starts to matter.

Rods, cones, and intrinsically photosensitive ganglion cells

The human retina contains three families of photoreceptors, and the third was only discovered in the late 1990s. Understanding who does what explains why the same amount of lux can be comfortable at 10 in the morning and harmful at 11 PM.

Rods: scotopic vision

There are about 120 million of them, distributed mostly in the peripheral retina. They contain rhodopsin, are extremely sensitive (they respond even to single photons) but do not distinguish colors and saturate rapidly. They govern night vision and peripheral motion perception. Their peak sensitivity is at 507 nm, in the green-blue: this is why at dusk cold colors appear brighter than reds (the Purkinje effect). An environment illuminated at 50-100 lux is a "mesopic" condition, in which rods and cones work together inefficiently: it is the worst condition for prolonged reading.

Cones: photopic and chromatic vision

There are about 6 million of them, concentrated in the fovea (the 1.5 mm area in the center of the macula responsible for detail vision). They are divided into three types based on the photopigment: S cones (peak at 420-440 nm, blue), M cones (534-545 nm, green), and L cones (564-580 nm, red). The brain reconstructs color by comparing the relative responses of the three types.

Here lies the technical knot of color rendering: if the source spectrum has deep holes in some bands, the three channels receive an unnatural signal ratio and the visual cortex has to work to interpret the scene. It is not a subjective sensation: it is an additional processing load that translates into longer reaction times and a perception of fatigue.

Intrinsically photosensitive retinal ganglion cells (ipRGC)

They are less than 1% of retinal ganglion cells, contain melanopsin, and have a sensitivity peak around 480 nm (blue-cyan). They do not contribute to image formation: they project to the suprachiasmatic nucleus of the hypothalamus, the central biological clock, and regulate melatonin secretion, body temperature, vigilance, and mood tone.

This is the discovery that changed modern lighting design: light is not just for seeing, it is for regulating the organism. From this comes the concept of Human Centric Lighting, the melanopic metric (m-EDI, melanopic Equivalent Daylight Illuminance, defined by the CIE S 026 standard), and international recommendations suggesting at least 250 melanopic lux to the eye during the day and less than 10 melanopic lux in the three hours before sleeping.

Accommodation and adaptation: the two processes that get tired

There are two distinct regulation mechanisms, often confused with each other, and both are directly influenced by the quality of ambient lighting. Distinguishing them is useful because they require different countermeasures.

Accommodation is focusing: it depends on the ciliary muscle and concerns distance. It gets tired when the task is close and prolonged, and worsens with age (presbyopia, which typically starts around 42-45 years). Adequate illuminance reduces the pupillary diameter, increases depth of field, and lightens the accommodative work: this is the physiological reason why more light on the work plane reduces fatigue even for the same task.

Adaptation is the regulation of sensitivity: it involves the pupil, photopigments, and retinal circuits, and concerns luminance. Dark adaptation is slow (rods take up to 20-30 minutes for full sensitivity), light adaptation is rapid but not instantaneous. Every time the gaze moves from a 250 cd/m² screen to a 15 cd/m² shadowed wall, the entire system must readapt. In a working day, this can happen thousands of times.

Recommended luminance ratios

Ergonomic literature and lighting guidelines converge on precise ranges. They are simple numbers to remember and verify, and they apply to any visual workstation:

The single most effective intervention to reduce screen fatigue is to illuminate the wall behind the monitor. It costs little, it is done with one meter of LED strip in a profile, and it reduces the screen/background luminance ratio from typical values of 15:1 or 20:1 to values around 4:1.

Why the eye doesn't "get used" to bad light

There is a widespread belief that, after a few weeks, the eyes adapt to any condition. This is only partially true, and it is a dangerous half-truth. What adapts is the subjective perception: we stop consciously noticing the discomfort. The physiological mechanisms, however, continue to work exactly the same way.

The ciliary muscle doesn't get stronger because the room is dark, and the pupil doesn't stop oscillating because we got used to the flicker. Studies on workers exposed to lighting with high modulation show that symptoms (headaches, difficulty concentrating) persist even when subjects declare they do not perceive any flicker. Habituation concerns awareness, not the load.

This has an important practical consequence: the absence of complaints is not proof of lighting quality. The only way to know if an environment is visually healthy is to measure it, and the parameters to measure are those we will see in the next sections.

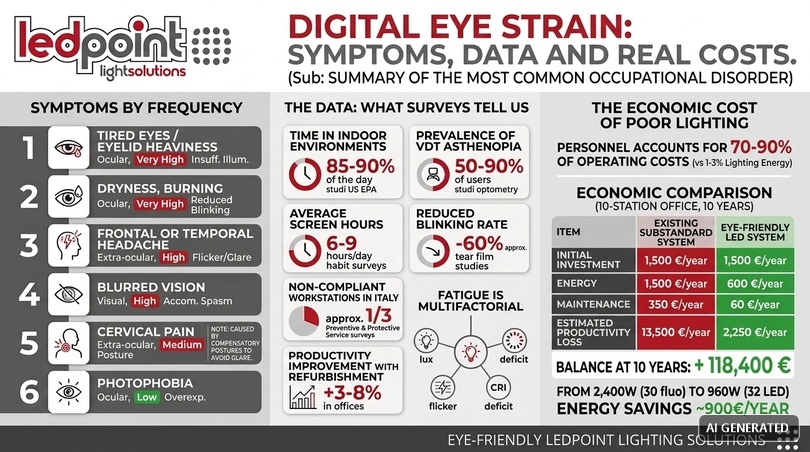

2. Digital eye strain: symptoms, data, and real costs

Computer Vision Syndrome (today more often called Digital Eye Strain or digital asthenopia) is the most widespread occupational disorder in the contemporary working world, and at the same time the most underestimated. It does not appear in accident statistics, it does not produce medical certificates, it does not have a specific and universally adopted ICD code. It exists only in the sum of millions of small daily renunciations.

In this section, we put together the available data: prevalence, symptoms in order of frequency, correlation with lighting parameters, and estimation of economic impact. These are the data needed by those who have to justify a lighting refurbishment budget, both in a company and in their own home.

Symptoms in order of frequency

Digital asthenopia presents with a cluster of symptoms that are divided into three categories: ocular, visual, and extra-ocular. The distinguishing feature is that they appear after a period of visual work and regress, at least partially, with rest or over the weekend. If a symptom is present even upon waking after a rest day, it most likely has a different origin and deserves an ophthalmologic visit.

Neck pain deserves a separate note because almost no one links it to light. When a reflection disturbs the view of the screen, the body unconsciously reacts by moving the head a few degrees to eliminate it. That position, maintained for hours, produces muscle tension. Eliminating the reflection — by rotating the screen, shielding the fixture, or switching to indirect lighting — often solves a problem that was being treated with anti-inflammatories.

The data: what surveys say

Scientific literature and industry surveys converge on a consistent picture, even if the percentages vary greatly depending on the case definition adopted and the population studied. We report here the most recurring values, with the caveat that these are ranges and not physical constants.

The most interesting data is not any of these taken individually, but their combination. A worker who spends eight hours in an office at 300 lux instead of 500, with fixtures flickering at 30% modulation and a CRI of 78, accumulates a comfort deficit that no single parameter would explain alone. Fatigue is multifactorial, and this is also the reason why partial interventions produce disappointing results.

The economic cost of wrong lighting

In an office budget, electricity for lighting typically weighs between 1% and 3% of total operating costs. Personnel weighs between 70% and 90%. This simple ratio makes it evident why saving on lighting at the expense of visual comfort is, from a purely economic point of view, an irrational choice.

The order of magnitude calculation

Let's consider an office with ten workstations. Let's assume an average company cost per employee of 45,000 euros a year, for a total of 450,000 euros. A 3% loss in productivity due to visual fatigue, unscheduled additional breaks, and a higher error rate is worth 13,500 euros a year. The complete lighting refurbishment of that same office, with quality LED linear fixtures, flicker-free drivers, glare control, and regulation, typically costs between 3,000 and 8,000 euros, with a useful life of ten years or more.

Let's add energy savings. Replacing 30 fluorescent fixtures of 4x18 W (about 80 W real each with ballast) with 32 W LED fixtures means going from 2,400 W to 960 W. Over 2,500 hours of annual use and with a cost of 0.25 €/kWh, the savings are about 900 euros a year in energy alone, to which are added the reduction in maintenance and the thermal load on the air conditioning.

The "productivity" item is by its nature an estimate and should be taken as an order of magnitude, not as an accounting forecast. But even zeroing it out completely, the intervention remains in the black by almost 6,000 euros on energy and maintenance savings alone. Visual comfort, in this scenario, comes for free.

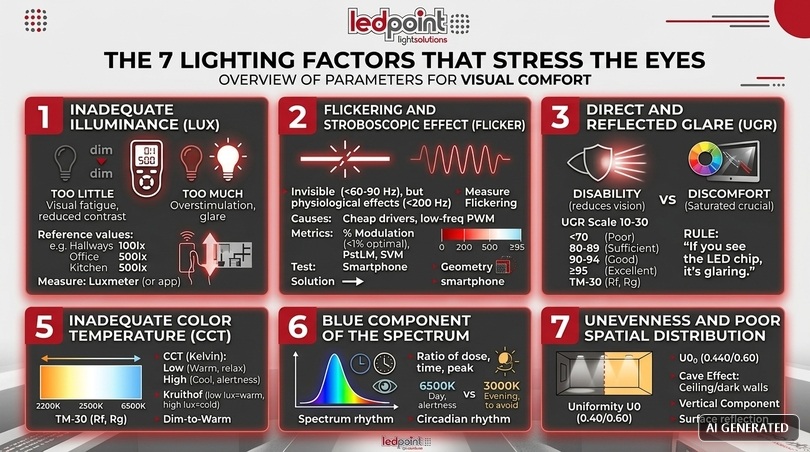

3. The 7 lighting factors that stress the eyes

There are seven measurable parameters that determine whether an environment is visually comfortable or tiring. All seven appear, in one form or another, in technical standards. All seven can be verified with accessible instrumentation or, as a first approximation, with a smartphone and a bit of method. We tackle them one by one, explaining the physiological mechanism, the reference value, how to measure it, and how to correct it.

Factor 1: inadequate illuminance (too little, or too much)

Illuminance is the amount of light that arrives on a surface, measured in lux (lumens per square meter). It is the most well-known parameter and, paradoxically, the one most often wrong by defect in domestic environments and by excess in shops.

Why little light causes fatigue

With low illuminance, the pupil dilates, depth of field is reduced, and accommodation must be more precise. At the same time, the perceived contrast of the task decreases and the spatial resolution of the visual system worsens. The result is that reading at 150 lux requires the visual system about twice the effort it requires at 500 lux, for the same text.

Why too much light causes fatigue

Above 1,500-2,000 lux indoors, without the correlate of a view of the outside, you enter a condition of overstimulation. The risk of glare, reflections on surfaces, and energy consumption increase, while the visual benefit is marginal. The comfort curve as a function of lux is not monotonically increasing: it has a plateau and then drops.

How to measure it

The correct method uses a lux meter with a sensor corrected for the photopic response (class B or higher), positioned on the work plane. The practical method uses a smartphone app: the typical error is 15-30%, enough to understand if you are at 200 lux instead of 500, insufficient for a regulatory compliance check. To correctly design the number of lumens needed you can follow the example of lux calculation of a specific installation available on our website.

Factor 2: flicker and stroboscopic effect

Flicker is the periodic variation of luminous flux over time. It is the most underestimated factor of all, because in most cases it is not visible to the naked eye and yet it produces documented physiological effects. The threshold of conscious perception is around 60-90 Hz, but the visual system continues to respond to modulations up to 200 Hz and beyond, and the visual cortex shows evoked responses even at much higher frequencies.

Where flicker in LEDs comes from

The LED responds to current almost instantaneously, without the thermal persistence that softened the flicker of incandescent lamps. If the current has a ripple, the light faithfully reproduces it. The typical causes are:

• Cheap power supplies with insufficient filtering: the 100 Hz ripple (double the 50 Hz mains frequency) passes directly into light.
• Low-frequency PWM dimming: below 1,000 Hz the modulation is 100% deep and becomes problematic especially at low dimming levels.
• Incompatibility between dimmer and driver: a phase-cut dimmer (triac) paired with a driver not designed for that control produces severe flicker and humming.
• Undersized driver: when the load is near or below the minimum operating threshold, the regulator becomes unstable.
•

The metrics: modulation percentage, SVM, and PstLM

There isn't just one number. The metrics that matter are those reported in the following table:

The limits PstLM ≤ 1.0 and SVM ≤ 0.9 entered the European regulatory framework with Regulation (EU) 2019/2020 on the ecodesign of light sources, applicable from September 2021. They are minimum legal limits, not quality objectives: for a prolonged work environment or a kids' room, aim for modulation under 1%.

The camera test: how to verify it in ten seconds

Open your smartphone camera in video or slow motion mode, frame the lit source, and look at the screen. If dark horizontal bands appear scrolling, there is significant flicker. It is a qualitative test, not quantitative: it does not detect modulations under 5-8% and can give false positives with some cameras. But if the bands are evident and high contrast, the source should be replaced. A second empirical test is the "pencil test": quickly wave a pencil under the light; if you see multiple sharp images instead of a continuous trail, there is a stroboscopic effect.

How to solve it

The solution is always upstream, in the power supply. A flicker-free LED driver with direct current regulation eliminates the problem at the root; for low-voltage systems, the correct choice falls on quality constant voltage power supplies with declared ripple. No profile, diffuser, or shielding can correct a flicker generated by the driver: flickering light remains flickering light, even if diffused.

Factor 3: direct and reflected glare (UGR)

Glare is the condition in which excessive luminance in the visual field compromises vision or creates discomfort. It is distinguished into two forms that have different causes and remedies.

Disability glare objectively reduces the ability to see: it is the light scattered inside the eye that reduces the contrast of the retinal image. Discomfort glare does not prevent seeing but generates annoyance, tension, and, over time, headaches. It is the latter that the standard quantifies with the UGR, Unified Glare Rating.

How to read the UGR

The UGR is a dimensionless index calculated from the luminance of the fixtures, the background luminance, the solid angle, and the position in the visual field. The scale typically ranges from 10 (imperceptible) to 30 (intolerable), with steps of 3 units.

The most useful practical rule is this: if you can see the single lit LED chip, the fixture is glaring. The luminance of a bare LED chip can exceed 10 million cd/m²; a comfortable surface in the visual field should stay below 3,000 cd/m² for fixtures in view above 65° from the vertical. The difference is three orders of magnitude, and a diffuser bridges it.

Reflected glare: the invisible enemy of the desk

The reflection of a fixture on a screen or a glossy surface produces "veiling": the contrast of the text collapses and reading becomes tiring without the user identifying the cause. The most effective countermeasure is geometric: no high-luminance source should be in the "reflection triangle" of the screen, i.e., in the ceiling area that the screen "sees" by reflecting. In practice: fixtures lateral to the direction of the gaze, never frontal above the head, and screens never facing a window nor with their back to it.

Factor 4: insufficient color rendering (CRI and R9)

The Color Rendering Index (CRI, Ra) measures how faithfully a source reproduces colors compared to a reference illuminant. It is calculated by comparing the rendering of eight pastel color samples (R1-R8) and averaging the results on a scale that goes up to 100.

The problem with the average value

The CRI Ra is an average of eight muted samples, and averages hide exceptions. There is a ninth sample, R9, which corresponds to saturated red, and it does not enter the calculation of Ra: it is possible to have a source with Ra 85 and R9 equal to zero or even negative. That source renders skin tones, wood, food, and warm fabrics poorly, and produces that sensation of a "dull" environment that no nameplate data explains.

For living and prolonged work environments, the rational choice is an LED strip with CRI ≥ 90, while where the regulatory minimum is sufficient, solutions with CRI ≥ 80 remain valid. The surcharge between CRI 80 and CRI 95 is typically 10-20% on the cost of the strip, which on a domestic system means a few tens of euros: it is probably the best ratio between expenditure and perceived benefit of the entire lighting project.

Beyond CRI: TM-30, Rf, and Rg

The CRI is a 1965 metric based on eight samples. The TM-30-20 method of the Illuminating Engineering Society uses 99 real color samples and provides two indices: Rf (fidelity, how colors are faithful, scale 0-100) and Rg (gamut, how saturated they are, with 100 as a neutral reference). A source with Rf 90 and Rg 105 renders colors faithfully and slightly more vividly: it is often the preferred combination in preference tests. If a manufacturer declares TM-30 data, it is an excellent indicator of technical seriousness.

Factor 5: color temperature inadequate to the time and task

The Correlated Color Temperature (CCT), expressed in kelvin, describes the hue of white light: low (2,200-3,000 K) means warm and amber, high (5,000-6,500 K) means cold and bluish. Contrary to intuition, "warm" temperatures correspond to low numbers.

The question "is warm or cold light better?" does not have a single answer, but it has a precise answer if the time of day and task are specified. The criterion is twofold: visual performance and circadian alignment.

The Kruithof curve and why it still matters

In 1941, the Dutch researcher Arie Andries Kruithof described an empirical relationship between illuminance and color temperature perceived as pleasant: at low illuminance levels, warm hues are preferred, at high levels cooler hues. Subsequent studies have downsized its scientific rigor, but the qualitative trend remains valid and useful: a 6,000 K light dimmed to 10% appears unnatural and unpleasant, while the same intensity at 2,200 K appears welcoming. This is why adjustable color temperature CCT LED strips solve a problem that no fixed-temperature source can solve.

Dim-to-warm: imitating fire

Traditional incandescent sources, when dimmed, warm the color: at full power 2,700 K, at 10% about 2,000 K. This behavior is deeply rooted in our perception because it imitates fire as evening falls. "Dim-to-warm" LED strips replicate this curve and are the optimal choice for bedrooms, living rooms, and catering, because the user automatically gets the correct CCT simply by lowering the light, without having to manage a second command.

Factor 6: the blue component of the spectrum

Blue light is the most discussed and most misunderstood argument in the field. We dedicate the entire section 4 to separating facts from commercial exaggerations; here it suffices to anticipate the operational concept: the problem is not the presence of blue in the spectrum, which is essential to have white light, but the relationship between dose, time, and spectral peak.

A 6,500 K source contains about twice the energy in the 440-490 nm band compared to a 3,000 K one, for the same lumens. If that source illuminates an office at 10 in the morning, it is an advantage: it sustains vigilance and anchors the circadian rhythm. If it illuminates a bedroom at 11 PM, it is a problem.

Factor 7: non-uniformity and poor spatial distribution

The last factor is geometric. Two environments can have the same average illuminance and behave completely differently, because what matters is how the light is distributed.

Uniformity U0

Uniformity is the ratio between minimum illuminance and average illuminance on the considered area. The standard requires U0 ≥ 0.60 on the task area and U0 ≥ 0.40 on the immediate surrounding area. A value of 0.25 means that in the worst point there is a quarter of the average light: the eye will have to readapt every time the gaze moves.

The vertical component and the "cave effect"

A system composed only of narrow-beam fixtures pointing downwards produces well-lit horizontal planes and dark walls and ceiling. The room appears gloomy, oppressive, and smaller: it is the so-called cave effect. The UNI EN 12464-1 standard in the 2021 revision has strengthened precisely this aspect, introducing explicit requirements for cylindrical illuminance and on vertical planes (typically 50-150 lux depending on the environment). Illuminating the walls is not aesthetics: it is a reduction of luminance ratios and therefore comfort.

The role of reflection coefficients

Surfaces participate in the lighting balance. The recommended values are: ceiling 0.70-0.90, walls 0.50-0.80, floor 0.20-0.40, work planes 0.20-0.60. A dark wall absorbs up to 85% of the light it receives: changing the color of the walls can be worth as much as adding a fixture. It is also the reason why indirect lighting only works if the bounce surfaces are light.

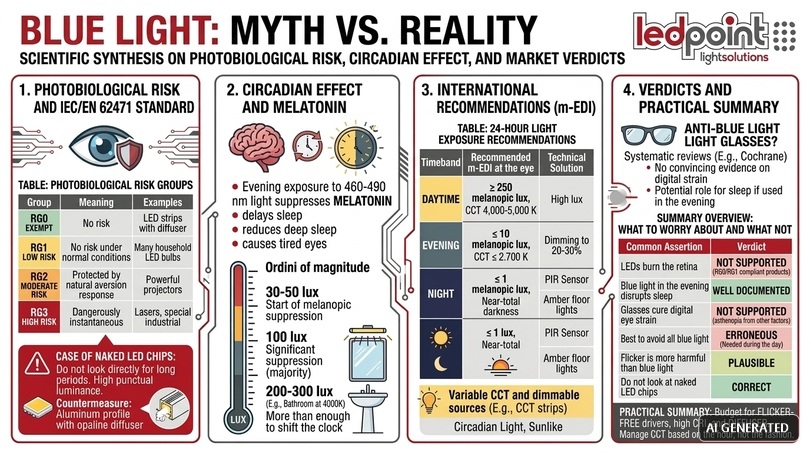

4. Blue light: between myth and reality

No lighting topic has generated more marketing and more confusion than blue light. On the one hand, there are alarmist claims about irreversible retinal damage caused by screens; on the other, there are those who dismiss it all as a commercial hoax. The scientific reality is in a precise and well-documented position, which is useful to know because it radically changes purchasing choices.

In this section, we distinguish two completely different phenomena that common language confuses: photobiological risk, which concerns possible tissue damage, and the circadian effect, which concerns sleep regulation. The first is practically irrelevant in domestic and office lighting. The second is real, measurable, and has daily consequences.

Photobiological risk: the IEC/EN 62471 standard

There is an international standard, IEC 62471 / EN 62471, that classifies light sources based on photobiological risk, considering ultraviolet, blue light (blue light hazard, 400-500 nm band), and infrared. The classification provides four groups:

The vast majority of fixtures for indoor use sold in the European Union belongs to RG0 or RG1. For RG2 or higher fixtures, marking is mandatory. In practice, for a domestic or office installation with compliant products, the risk of phototoxic retinal damage from LED lighting is considered negligible by European technical bodies, provided you do not stare directly and for a long time at an unshielded high-luminance source.

The case of bare LED chips

However, there is a precise recommendation: do not look directly and for prolonged periods at high-power lit LED chips. Not because they are intrinsically toxic, but because their punctual luminance is extremely high and concentrates energy on a small retinal area. It is the same logic as not staring at the sun. The countermeasure is trivial and coincides with that for glare: aluminum profile with opal diffuser. A diffuser reduces the peak luminance by one or two orders of magnitude by distributing the same flux over a much larger surface.

The circadian effect: here the problem is real

The second phenomenon is much better documented and is the one that has measurable daily effects. Exposure to light rich in the 460-490 nm band in the evening hours suppresses melatonin secretion, delays falling asleep, reduces the quota of deep sleep, and produces, the next day, tired eyes and lower concentration capacity.

The orders of magnitude are instructive. Melanopic suppression starts at surprisingly low levels: already 30-50 lux of cool white light on the eye can produce measurable effects in sensitive subjects, and 100 lux produces significant suppression in most people. A 4,000 K ceiling light turned on at 11 PM in the bathroom can produce 200-300 lux on the eye: more than enough to shift the biological clock.

The operational recommendations of the international consensus

A group of researchers in the field published recommendations in 2022 based on the melanopic metric m-EDI, which have become the most cited practical reference:

Applying these recommendations does not require exotic technologies. It requires two things: sources with variable color temperature and the ability to adjust intensity. Both are available at ordinary costs with CCT LED strips paired with programmable controllers, or with dedicated lines like Circadian Light and Sunlike, developed specifically to reproduce a spectral trend close to that of the sun.

Do "anti-blue light" glasses work?

The question always comes up, and it deserves an honest answer. The most recent systematic reviews, including Cochrane ones, have not found convincing evidence that blue-light filtering lenses reduce digital visual fatigue compared to neutral lenses. The reason is consistent with what we have seen so far: digital asthenopia depends on reduced blinking, sustained accommodation, excessive contrasts, and flicker, not on the blue component of the spectrum.

Filtering lenses, however, have a potential, different role: if worn in the evening hours, they reduce melanopic exposure and can help sleep. It is a chronobiological use, not an ergonomic one. Put practically: do not buy yellow glasses to stop having tired eyes at five in the afternoon; fix the office light. Consider them eventually for the two hours before going to sleep.

The summary picture: what to worry about and what not to

The practical summary: dedicate the budget to the flicker-free driver, high CRI, and diffuser, not to anti-blue filters. And manage the color temperature as a function of the time, not of fashion.

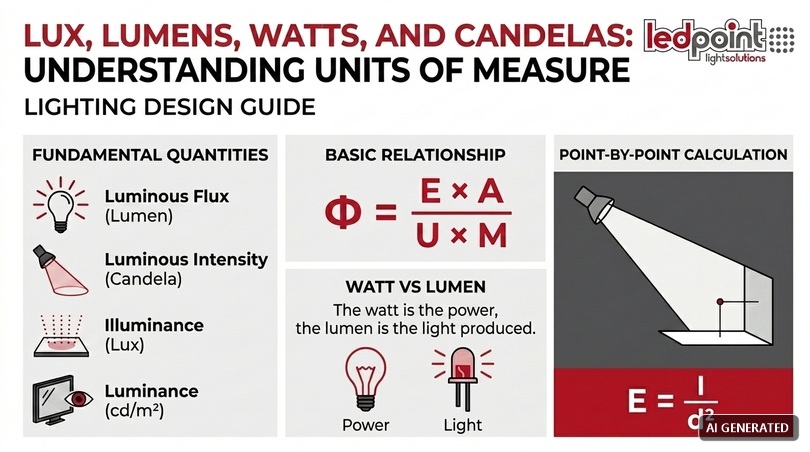

5. Lux, lumen, watt, and candela: understanding the units of measure

You cannot design, nor buy consciously, without mastering four quantities. They are often used as synonyms in commercial descriptions, and this confusion is at the origin of a huge share of wrong purchases. The difference between lumen and lux, in particular, is the single notion that separates those who design light from those who buy it at random.

Let's see the definitions, the mathematical relations, the practical conversions, and the calculations that really matter, with complete numerical examples.

The four fundamental quantities

The quantity the eye actually perceives is luminance, not illuminance. A white sheet and a black sheet in the same environment receive the same lux but have very different luminances, because they reflect different fractions of the received light. This is why visual comfort depends as much on the colors of the surfaces as on the fixtures.

From lumen to lux: the fundamental relationship

The basic relationship is simple: E (lux) = Φ (lumen) / A (m²), where A is the illuminated area. But this formula, applied directly, always overestimates the real result, because it does not take losses into account. The correct formula for design is the total flux method:

Φ_total = (E × A) / (U × M)

where:

• E = desired maintained illuminance in lux
• A = area of the work plane in m²
• U = utilization factor (typically 0.40-0.70 depending on room geometry, reflectances, and fixture distribution)
• M = maintenance factor (typically 0.80 for clean environments, 0.70 for normal environments, 0.60 for dusty environments)

Complete numerical example: 12 m² home office

Objective: 500 lux on the desk plane. Room area: 4 m × 3 m = 12 m². Light walls and white ceiling, so U = 0.55. Clean domestic environment, M = 0.80.

Φ = (500 × 12) / (0.55 × 0.80) = 6,000 / 0.44 = 13,636 lumens.

With a 1,400 lm/m LED strip, about 9.7 linear meters are needed; with a 2,000 lm/m one, 6.8 are enough. If you had used the naive formula E = Φ/A you would have calculated 6,000 lumens, i.e., less than half of what is needed, obtaining about 220 real lux: the most common mistake of all.

Lumens per square meter: the quick table

For those who want a quick estimate without calculations, here are the values of installed flux per square meter that, under typical conditions (average room, light surfaces, fixtures with good efficiency), produce the indicated illuminance.

Watt and lumen: the conversion that is still needed

The watt measures the absorbed power, not the light produced. Continuing to buy light "by watt" is a habit inherited from incandescence, when the ratio was almost constant at about 12-14 lm/W. With LEDs, the same watt can produce from 60 to over 200 lumens, depending on the quality of the chip, the working temperature, the CRI, and the efficiency of the driver.

Beware of an important commercial detail: the declared efficiency of an LED strip must always be verified on the real flux in lm/m and not on the "chip" value. A correct manufacturer declares the flux of the complete strip at the nominal voltage and at operating temperature, not the sum of the nameplate values of the single LEDs measured at 25 °C in impulse.

The calculation of punctual illuminance (inverse square law)

For a point source, the illuminance on a surface perpendicular at distance d is:

E = I / d², where I is the intensity in candelas and d the distance in meters.

If the surface is inclined at an angle θ with respect to the perpendicular, the cosine law applies: E = (I × cosθ) / d².

Example: a spotlight with an intensity of 1,200 cd on the axis, mounted 2.5 m above a work plane, produces E = 1,200 / 6.25 = 192 lux in the point under the axis. Moving laterally, the illuminance drops rapidly. This is why a system with only spotlights almost always produces insufficient uniformity: coverage requires many closely spaced light points, while a linear source solves the problem by construction.

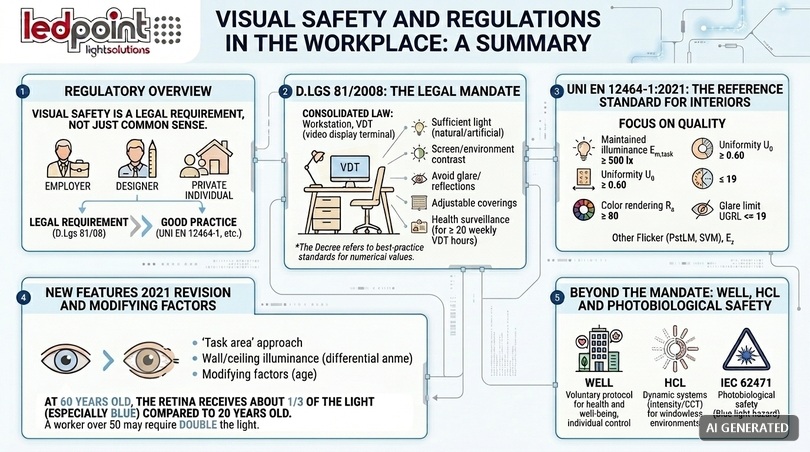

6. Regulations: UNI EN 12464-1, D.Lgs 81/08, IEC 62471

The protection of eyesight in work environments is not a matter of common sense: it is the subject of legal obligations and cogent or reference technical standards. Knowing them serves three categories of people: employers, who are responsible for them; designers, who must demonstrate compliance; and private individuals, who can use them as a quality benchmark even in their own homes.

This section reconstructs the Italian and European regulatory framework in an orderly manner, distinguishing what is a legal obligation from what is voluntary good practice.

D.Lgs 81/2008: the legal obligation

The Consolidated Law on health and safety at work addresses lighting in several points. Annex IV, point 1.10, establishes that workplaces must have sufficient natural light and, in any case, be equipped with devices that allow adequate artificial lighting to safeguard the safety, health, and well-being of workers.

Title VII and Annex XXXIV specifically regulate equipment equipped with display screens, and are the part most directly linked to the theme of this article. In summary, they prescribe that:

• general and specific lighting must guarantee an appropriate illuminance and adequate contrast between screen and environment;
• glare and reflections on the screen must be avoided, correctly positioning workstations and light sources;
• windows must be equipped with adjustable covering devices to attenuate daylight;
• health surveillance is provided with a medical visit including an examination of the eyes and eyesight for those who use the display screen for at least 20 hours a week.
•

The crucial regulatory point is that D.Lgs 81/08 does not directly set the numerical values of lux: it refers to the standards of good technique, and the standard of good technique for lighting is UNI EN 12464-1. In inspection and jurisprudential practice, compliance with 12464-1 is the documentary evidence with which compliance with the obligation is demonstrated. You can consult a table of lighting requirements for different work environments for an immediate check.

UNI EN 12464-1: the reference standard for indoors

The standard UNI EN 12464-1 "Light and lighting – Lighting of work places – Part 1: Indoor work places", in the 2021 revision, is the central technical document. It is not limited to prescribing quantities: it defines a coordinated set of qualitative requirements.

The prescribed parameters

The news of the 2021 revision

The 2021 version introduced three changes that have a direct impact on visual comfort and that many older systems do not satisfy:

• Flexible "task area" approach: the task area can be defined more punctually, favoring solutions with local task lighting instead of uniformly and uselessly illuminating the whole room.
• Strengthened requirements on vertical surfaces and ceiling: minimum illuminance values on walls and ceiling are indicated to counteract the cave effect.
• Modification factors: the standard allows increasing the prescribed levels in the presence of specific conditions, for example, workers over 50, critical visual tasks, or high precision needs. A 60-year-old worker may require up to double the light of a 20-year-old for the same visual performance.

This last point is probably the most underestimated of all: the luminous transmission of the lens progressively decreases with age, and at 60 years the retina receives about a third of the light it received at 20, with a particularly marked loss in the blue band. An office designed "to standard" for a young population may be insufficient for half of its occupants.

The other standards in the framework

Beyond obligation: WELL, Human Centric Lighting, and integrated design

Compliance with UNI EN 12464-1 guarantees a compliant environment. It does not guarantee an optimal environment. The difference between "compliant" and "healthy" is exactly the space in which advanced protocols operate.

The WELL Building Standard, in its Feature dedicated to light, requires: minimum melanopic levels measured at eye height, glare control with criteria more stringent than the standard, high CRI, access to natural light, and the possibility of individual control. This last element (the possibility for the occupant to adjust their own light) is consistently one of the strongest predictors of satisfaction in post-occupancy studies, regardless of the absolute values measured.

Human Centric Lighting translates these principles into dynamic systems that vary intensity and color temperature over the course of the day, reproducing the trend of natural light. It is not a whim: in environments without windows or with poor access to daylight, it is the only way to provide the circadian system with the signal it needs. The realization requires sources with daylight-type spectrum, CCT control, and time programming, today achievable with DALI DT8, ZigBee, or 0/1-10V protocols.

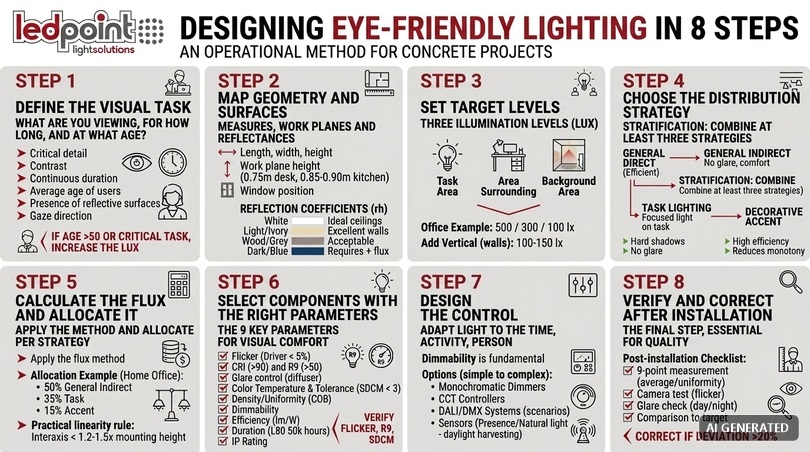

7. Designing eye-friendly lighting in 8 steps

This section is an operational method, applicable to both an entire office and a single room in the house, which leads to the realization of a concrete project with a shopping list.

The method is sequential and every step depends on the previous one. The most common mistake of those who improvise is to start from step 6, i.e., choosing the product, before having defined the task, geometry, and levels. The result is almost always a system that costs the right amount and works badly.

Step 1: define the visual task and who performs it

Before any number, answer three questions: what is being looked at, for how long, and at what age. Reading a text printed in small characters, soldering electronic components, watching a movie, and putting on makeup in front of a mirror are four visual tasks with radically different requirements.

The variables to note are: size of the critical detail, contrast of the detail against the background, continuous duration of the activity, average age of the users, presence of glossy or reflective surfaces, predominant direction of the gaze. If the user is over 50 years old or the task is critical, apply a magnification factor: go up one step in the lux scale (from 300 to 500, from 500 to 750).

Step 2: survey the geometry and surfaces

Measure the length, width, and height of the room, the height of the work plane (conventionally 0.75 m for desks, 0.85-0.90 m for kitchen planes), and the position of the windows. Note the colors and materials of the ceiling, walls, and floor, estimating the reflectances.

Step 3: set the target levels

Define three values, not one: illuminance of the task area, the surrounding area, and the background area. The typical progression is 500 / 300 / 100 lux for an office; 500 / 200 / 100 for a kitchen; 300 / 150 / 75 for a living room with a reading area. Add the target for vertical illuminance (100-150 lux on the walls) if you want to avoid the cave effect.

Step 4: choose the distribution strategy

There are four strategies, and in practice a good project combines at least three. The key concept is stratification: a single type of light cannot satisfy contradictory requirements.

Step 5: calculate the flux and distribute it

Apply the total flux method seen in section 5, then distribute the result among the chosen strategies. A typical and effective distribution for a home office is: 50% general indirect, 35% task, 15% accent. For a kitchen: 45% general, 45% under-cabinet, 10% accent. For a bedroom: 40% dimmable general, 30% reading, 30% night courtesy at a very low level.

In the geometric distribution, a practical rule applies for linear fixtures: the spacing between two rows should not exceed 1.2-1.5 times the mounting height above the work plane, otherwise the uniformity drops below 0.60.

Step 6: select the components with the right parameters

Only now do you look at the catalog. The parameters to verify, in order of importance for visual comfort, are nine:

1. Flicker: modulation percentage < 5%, ideally < 1%. Depends on the driver, not the strip.
2. CRI and R9: Ra ≥ 90 and R9 ≥ 50 for living and work environments.
3. Glare control: opal diffuser mandatory if the source is in the visual field.
4. Color temperature and tolerance: binning within 3 SDCM (MacAdam steps) to avoid visible differences from one meter to the next.
5. Density and uniformity of the source: high density of LEDs or COB technology to eliminate the dotted effect.
6. Dimmability: verify driver-dimmer compatibility and minimum regulation depth (ideally 0.1%).
7. Efficiency (lm/W): important for consumption, but to be evaluated after qualitative parameters.
8. Duration L70/L80 and color maintenance: look for at least L80 at 50,000 hours.
9. IP rating: IP20 for dry indoors, IP65 or higher for bathrooms, kitchens, and outdoors.

If the supplier does not publish data on flicker, R9, and SDCM, those data are almost certainly not good. It is the quickest test to distinguish a professional product from a generic one.

Step 7: design the control

A system without regulation is a system designed for a single condition. The ability to vary intensity and color temperature transforms a good system into an excellent one, because it allows adapting the light to the time, the activity, and the person.

The options, in increasing order of complexity: monochromatic dimmers for simple intensity regulation, CCT controllers for dynamic white, DALI and DMX systems for structured systems and programmable scenarios, sensors of presence and luminosity for daylight harvesting that automatically regulates the artificial light based on the available natural light.

Step 8: verify and correct after installation

The last step is the one that is always skipped. Measure the illuminance in at least nine points of the work area grid, calculate the average and uniformity, perform the camera test for flicker, sit in the user's position and verify that no high-luminance source is in the visual field. Then repeat after sunset: many glare problems are invisible during the day because natural light masks them.

Note the values and compare them with the targets from step 3. If the deviation exceeds 20%, something in the calculation or installation needs to be corrected. The verification takes half an hour and transforms an installation into a qualified project.

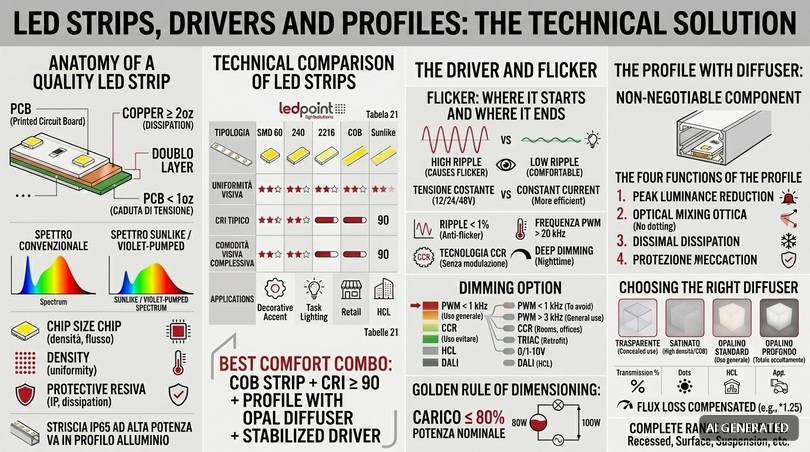

8. LED strips, drivers, and profiles: the technical solution

LED strips have gone, in the span of fifteen years, from a decorative accessory for shop windows to a primary source of professional lighting. The reason is strictly linked to the theme of this article: the linear source distributes the same flux over a much larger surface than a point light, and the lower luminance is exactly what is needed to eliminate glare.

But the LED strip is an enormously heterogeneous category, ranging from the three-euro-per-meter product without technical data to the certified source with documented spectrum. In this section, we see exactly what distinguishes an eye-friendly strip, how to choose the driver, and why the profile is not an accessory.

Anatomy of a quality LED strip

An LED strip is composed of five elements, and each one influences the final visual comfort.

The printed circuit board (PCB)

The thickness of the copper (measured in ounces, oz) determines the ability to dissipate heat and the voltage drop along the strip. A PCB with 2 oz copper or higher keeps the LEDs cooler, and a cooler LED better maintains flux and color over time. The width of the PCB (8, 10, 12 mm) and the presence of a double layer further affect this. In cheap strips, the copper is 1 oz or less: after three meters, the voltage drop produces a visible difference in brightness between the beginning and the end.

The LED chips

The format (SMD 2835, 3014, 2216, 5050, COB) determines possible density, flux per chip, and distribution. Small high-density formats like 2216 allow up to 384 LEDs/m and beyond, creating an almost continuous line.

The phosphor and the spectrum

The white LED is actually a blue LED covered with phosphors that convert part of the radiation into yellow-red. The quality and composition of the phosphors determine the entire spectrum and therefore the CRI, the R9, and the "blue peak". The most advanced technologies, such as the violet-pumped LEDs of the Sunlike family, use a 405-420 nm chip instead of a 450 nm one, obtaining a much more continuous spectrum and free of the marked blue peak typical of conventional LEDs.

Density and protective resin

The density (LED/m) determines the uniformity of the line; the resin or sheath determines the IP rating. Beware: siliconization reduces heat dissipation, so an IP65 high-power strip heats up more than the corresponding IP20 one and must always be housed in an aluminum profile.

Technical comparison: which strip for which comfort need

For the lighting of environments where you stay for a long time, the combination that offers the best visual comfort per euro spent is a COB strip with CRI ≥ 90 in a profile with an opal diffuser, powered by a stabilized direct current driver. It is a configuration that simultaneously eliminates dotting, glare, and flicker.

The driver: where flicker is born and dies

It is the component on which people save the most often and on which they should never save. The driver determines the flicker, the stability of the flux over time, compatibility with regulation systems, electrical safety, and, to a large extent, the useful life of the entire system.

Constant voltage or constant current?

Traditional 12V, 24V, or 48V LED strips require a constant voltage power supply: the strip integrates the limiting resistors. Constant current sources instead require a constant current power supply, more efficient and with less drift. There are also strips with an integrated constant current control system, which maintain constant flux along the entire length eliminating the brightness drop at the end of the run.

The driver parameters that matter for the eyes

For systems where you want to eliminate the problem at the root, the correct choice falls on a 230V anti-flicker driver or, in low voltage, on power supplies with declared and certified ripple. Golden rule of sizing: if your installation absorbs 80 W, choose a power supply of at least 100 W. The 20% margin translates into a lower working temperature, less ripple, and years of extra life.

Dimming: which technology to choose

The profile with diffuser: the non-negotiable component

If we had to choose a single accessory to impose in every installation intended for inhabited spaces, it would be the aluminum profile with diffuser. It is not an aesthetic finish: it is the device that transforms a high-punctual-luminance source into a comfortable luminous surface.

The four functions of the profile

1. Reduction of peak luminance: a bare LED chip can exceed 1,000,000 cd/m². The same flux distributed on a 10 mm wide opal diffuser typically drops below 10,000 cd/m². It is the difference between glaring and comfortable.
2. Optical mixing: the diffuser eliminates dotting, merging the individual points into a continuous line. The eye perceives a surface instead of a series of sources, and this reduces micro-pupillary oscillations.
3. Heat dissipation: aluminum is a heat sink: it keeps the LED junction at a lower temperature, which means more stable flux, less chromatic drift, and a significantly longer useful life.
4. Mechanical protection: it preserves the strip from impacts, dust, and stress on the contacts.

Choosing the right diffuser

The flux loss introduced by the diffuser must be compensated for in the design phase, not suffered. If the diffuser transmits 80%, multiply the required flux by 1.25. It is a marginal cost that buys a huge gain in comfort. The complete range of profiles, diffusers, and profile and accessory kits allows you to configure the solution for every geometry: recessed, surface, suspended, corner, baseboard, plasterboard.

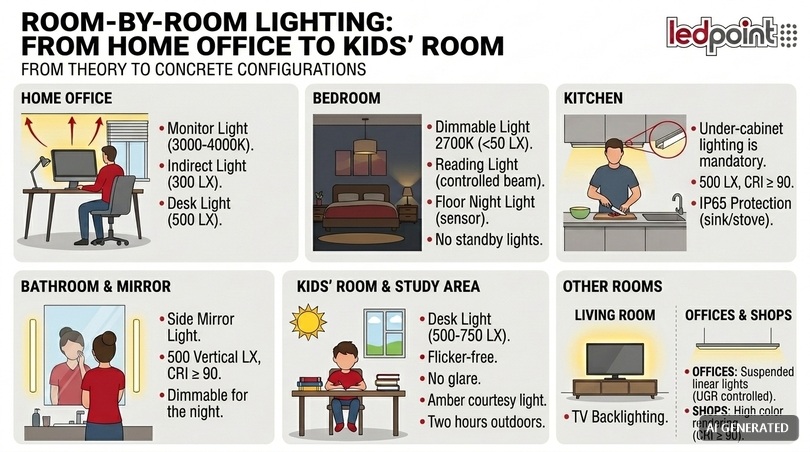

9. Room-by-room solutions: from home office to kids' bedroom

Theory becomes useful when translated into concrete configurations. This section is a recipe book: for each environment you find the typical visual problem, the numerical targets, the recommended configuration, and the components. These are field-tested schemes, not abstract exercises.

Home office and VDT workstation

It is the environment with the highest visual load and, statistically, the worst lit in Italian homes. The dominant problem is not the quantity of light but the luminance ratio between screen and background: a 200-300 cd/m² screen in front of a 15 cd/m² wall produces a ratio of 15-20:1 against the recommended 10:1.

The three-layer configuration

Layer 1 – Bias lighting behind the monitor. An LED strip of 700-1,000 lm/m in a profile, mounted behind the screen or on the rear wall, which illuminates the bounce wall. Target: bring the luminance of the wall to about a third of that of the screen. CCT 4,000 K during the day, 3,000 K in the evening. It is the intervention with the best cost/benefit ratio of the entire guide: one meter of strip, a profile, a power supply.

Layer 2 – General indirect lighting. High-density or COB strip with CRI ≥ 90 in a ceiling profile or perimeter cornice, oriented towards the ceiling. It provides the diffuse base without shadows and without sources in the visual field. Target 300 lux on the environment.

Layer 3 – Task light on the desk. Linear profile under the cabinet or adjustable desk lamp, positioned on the side opposite to the writing hand (on the left for right-handers) to avoid the shadow of the hand. Target 500 lux on the plane, brought to 750 for reading printed documents or for users over 50.

Geometric rules to respect

• The screen perpendicular to the window, never facing it nor with its back to it.
• No high-luminance fixture in the "reflection triangle" above and in front of the screen.
• Eye-screen distance of 50-70 cm, top edge of the screen at eye level or slightly below.
• 20-20-20 rule: every 20 minutes, look for 20 seconds at an object about 6 meters (20 feet) away. It relaxes accommodation and reactivates blinking.

Bedroom: the priority is darkness

In the bedroom, the objective is reversed: not to maximize visual performance but to minimize the circadian signal. The bedroom is the only environment where the best light is the one that isn't there.

Recommended configuration: dimmable general at 2,700 K with the possibility of dropping below 50 lux; reading in bed with a controlled beam at 200-300 lux on the book and no diffused light towards the partner; night courtesy with a 2,200 K or amber strip on the floor (under the bed or on the baseboard), activated by a motion sensor and limited to 5-10 lux. This last detail has enormous practical value: it allows getting up at night without waking up the circadian system and without risking falls, which in the elderly population represent a concrete risk.

Warm light 2200-2700K LED strips are the mandatory choice for this environment. Categorically avoid any source above 3,000 K in the bedroom, including the stand-by lights of electronic devices: a blue LED from a charger 30 cm from the face can produce a non-negligible melanopic exposure.

Kitchen: safety first

In the kitchen, the visual task is critical for safety: you handle blades and hot surfaces. The typical problem is the cast shadow: the user's body, illuminated by a ceiling fixture behind them, projects their own shadow exactly on the work plane.

Solution: mandatory under-cabinet lighting, with a strip in a profile equipped with a diffuser, positioned towards the front edge of the cabinet and not against the wall, so that the beam hits the plane in front of the user. Target 500 lux on the plane, CRI ≥ 90 to correctly evaluate the cooking of food, CCT 3,500-4,000 K. IP65 rating in areas near the sink or hob, or in any case a profile with a closed diffuser that is easy to clean.

Bathroom and mirror: the case of "grooming light"

The mirror is the only point in the house where the visual task is on a vertical plane: the face. This completely changes the required geometry.

The universal mistake is the ceiling spotlight above the mirror, which produces marked shadows on eye bags, nose, and chin: the worst possible lighting for shaving, putting on makeup, or observing your skin. The correct solution is lateral lighting: two vertical strips in profiles on the sides of the mirror, at face height, with a deep opal diffuser. Alternatively, complete perimeter lighting. Target 500 vertical lux on the face, CRI ≥ 90 with high R9 (fundamental for evaluating the complexion), CCT 3,000-4,000 K. A dimmer for the mirror allows reducing the intensity for night use.

Kids' room and study area

It is the environment where the requirements are most stringent, and for two reasons. First: the crystalline lens of children is much more transparent than that of adults and lets a greater quota of blue light pass. Second: the increase in the prevalence of myopia in youth cohorts is correlated, in epidemiological studies, to reduced exposure to outdoor natural light and excessive near-work activities.

Requirements: 500-750 lux on the desk, CRI ≥ 90, non-negotiable flicker-free, no sources in the visual field, CCT 4,000 K for studying and 2,700 K for the evening. Add an amber courtesy light for the night. And remember the non-lighting but most effective advice of all: two hours outdoors a day have, on the visual health of a child, an impact superior to any system.

Living room and TV area

The living room has contradictory requirements: it must support reading, conversation, TV viewing, and relaxation. The solution is stratification with scenarios. For the TV area, the same principle as the monitor applies: a strip behind the television that illuminates the wall reduces the luminance ratio and fatigue during prolonged viewing, with a target wall luminance of about 10% of that of the screen and a CCT close to the 6,500 K white point of the television so as not to alter color perception.

Tertiary and commercial work environments

In open-plan offices, the dominant theme is reflected glare combined with the need for uniformity over large surfaces. The typical solution is the suspended linear fixture with direct/indirect emission (typically 60/40 or 50/50), which illuminates the ceiling reducing luminance ratios and distributes a controlled UGR direct component on the plane. In retail, the decisive variable is color rendering: a CRI ≥ 90 with high R9 can radically change the perception of the product, particularly on fresh food, fabrics, and cosmetics.

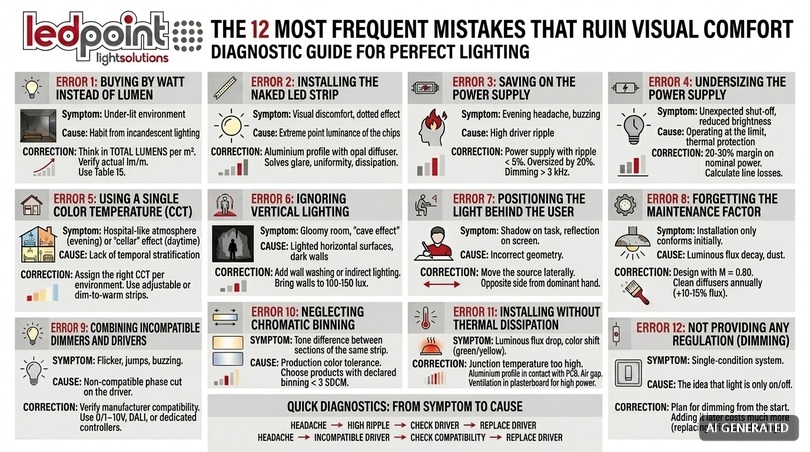

10. The 12 most frequent mistakes that ruin visual comfort

In our experience of technical assistance to installers, designers, and private individuals, the same mistakes repeat themselves with surprising regularity. We have collected and ordered them by frequency. Recognizing even just three in your situation means already having a concrete improvement plan in hand.

For each mistake, we indicate the symptom with which it manifests, the technical cause, and the correction, so that the section functions as a diagnostic tool.

Mistake 1: buying by watt instead of by lumen

The symptom is the systematically under-lit environment. The cause is the habit inherited from incandescence. The correction is to reason in total installed lumens per square meter, using Table 15 as a quick reference, and always verifying the real flux of the strip in lm/m and not the power in W/m.

Mistake 2: installing the bare LED strip, without a profile

The symptom is the annoyance when the strip enters the visual field, combined with the dotted effect on surfaces. The cause is the extreme punctual luminance of the chips. The correction is always the same: aluminum profile with opal diffuser, which simultaneously solves glare, uniformity, dissipation, and duration.

Mistake 3: saving on the power supply

The symptom is the evening headache without apparent cause, often accompanied by a slight hum. The cause is the high ripple of the driver. The correction is a power supply with ripple declared under 5%, oversized by 20% compared to the load, and in case of regulation, a driver with current dimming or PWM above 3 kHz.

Mistake 4: undersizing the power supply

The symptom is the sudden shutdown after a few minutes, or the progressive drop in brightness. The cause is operation at the limit with thermal protection intervening cyclically. The correction is the 20-30% margin on the nominal power, calculated including all line losses.

Mistake 5: using a single color temperature for the whole house

The symptom is the "hospital" environment in the evening or the "tavern" environment during the day. The cause is the absence of temporal stratification. The correction is to assign the right CCT to each environment and, where you stay for a long time, to adopt adjustable CCT or dim-to-warm strips.

Mistake 6: ignoring vertical lighting

The symptom is the room that appears gloomy despite the measured lux being correct. The cause is the cave effect: illuminated horizontal planes and vertical surfaces in the dark. The correction is to add wall washing or an indirect component, bringing the walls to 100-150 lux.

Mistake 7: positioning the light behind the user

The symptom is the shadow of your own head or hand on the task, or the reflection on the screen. The cause is purely geometric. The correction is to move the source laterally with respect to the direction of the gaze and, for writing, on the side opposite to the dominant hand.

Mistake 8: forgetting the maintenance factor

The symptom is the system that meets the targets on the first day and no longer meets them after three years. The cause is the decay of the flux combined with the accumulation of dust on the diffusers. The correction is to design with M = 0.80 and clean the diffusers at least once a year: a cleaning can restore 10-15% of the flux.

Mistake 9: pairing incompatible dimmer and driver

The symptom is flickering at low levels, the snap at ignition, humming, or the impossibility of going below 30%. The cause is the pairing of a phase-cut dimmer with a driver not designed for that control. The correction is to verify the compatibility declared by the manufacturer and to prefer, where possible, 0/1-10V, DALI, or dedicated controller systems.

Mistake 10: neglecting chromatic binning

The symptom is the visible difference in hue between two sections of the same reference strip, or between one order and the next. The cause is the chromatic tolerance in production. The correction is to choose products with binning declared within 3 SDCM and, for extensive installations, to buy all the material in a single batch.

Mistake 11: installing without thermal dissipation

The symptom is the drop in flux and the sliding of the color towards green or yellow over the course of months. The cause is the junction temperature being too high. The correction is the aluminum profile in full contact with the strip, air space around the profile, and attention not to embed high-power strips in plasterboard without ventilation.

Mistake 12: not providing any regulation

The symptom is the system that works well in only one condition and badly in all others. The cause is the idea that light is an on/off switch. The correction is to provide dimming from the beginning: adding it later costs much more, because it often implies replacing drivers and wiring.

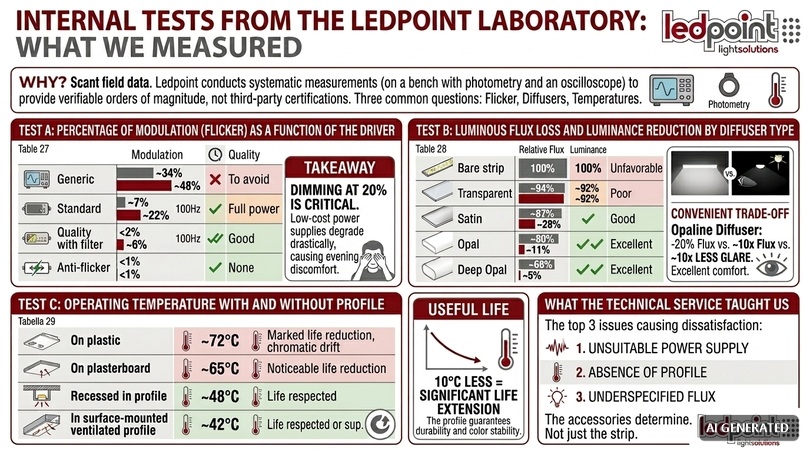

11. Ledpoint lab's internal tests: what we measured

Regulatory theory is public; field data is much less so. For this reason, the Ledpoint technical team conducts systematic measurements on catalog products and market samples, and in this section, we share the most useful aggregated results for the reader. These are internal laboratory data, obtained on a bench with photometric instrumentation and an oscilloscope, and they serve to give verifiable orders of magnitude, not to replace a third-party certification.

We chose to publish three series of measurements, because they correspond to the three questions we receive most often from the technical service: how much the driver really counts on flicker, how much flux a diffuser loses, and how much a strip heats up with and without a profile.

Test A: modulation percentage as a function of the driver

We powered the same 24V 14.4 W/m LED strip with four different power sources, measuring the modulation of the luminous flux with a photodiode and oscilloscope, at full power and at 20% dimming.

The most significant data is the column for dimming at 20%: it is the condition in which most domestic systems work in the evening, and it is precisely the one in which cheap power supplies worsen drastically. A product that appears acceptable at full power can become strongly modulated when lowered. This explains why many users report annoyance especially in the evening, attributing it to accumulated fatigue.

 Test B: flux loss and luminance reduction by diffuser type

On the same COB CRI 90 strip, we measured flux and peak luminance with four cover configurations, keeping the power supply constant.

The correct reading of this table is the following: the opal diffuser costs 20% of the flux and returns a reduction in peak luminance of almost a factor of ten. From the point of view of visual comfort, it is one of the most convenient trades available in lighting design: you compensate for the 20% by adding one more meter of strip, and you get a source that does not glare.

Test C: operating temperature with and without profile

We measured the surface temperature of the PCB of a 24V 19.2 W/m strip after 60 minutes of continuous operation at 25 °C ambient, in three mounting configurations.

Every 10 °C less on the junction translates, as an empirical rule widely used in electronics, into a sensible lengthening of the useful life of the components. The aluminum profile is therefore not just an optical device: it is also the insurance on the duration of the investment and on the stability of the color over time, which is in turn a factor of visual comfort, because a strip that shifts in hue compared to the others breaks the harmony of the environment.

What the technical service taught us

In addition to bench data, Ledpoint technical assistance collects hundreds of reports every year. The three most frequent causes of declared dissatisfaction do not concern the LED strip, but the surroundings: unsuitable power supply, absence of a profile, and undersizing of the flux. It is a statistic that says a lot: the component on which buyers focus their attention is rarely the one that determines the result.

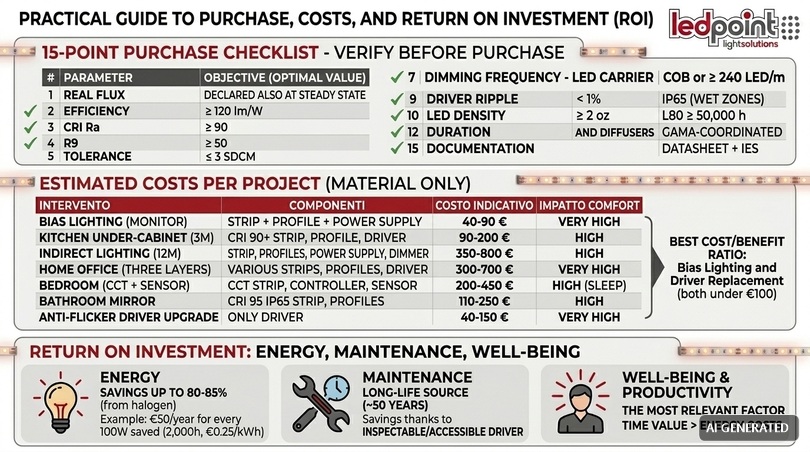

12. Purchasing checklist, costs, and return on investment

We close the operational part with the practical tools: a checklist to use in front of the technical data sheet, a realistic estimate of costs by type of intervention, and a reasoning on the economic return that also takes into account what does not appear on the bill.

The 15-point checklist

Print it, or keep it open while you compare products. If a supplier is not able to answer at least ten of these fifteen points, the product is not suitable for an environment where you stay for a long time.

What an eye-friendly system really costs

The following figures are indicative orders of magnitude for materials, excluding installation and masonry works, and serve to give a realistic scale of the investment.

The two items with the best ratio between expenditure and benefit are bias lighting and driver replacement: both under 100 euros, both with an immediately perceptible effect. If the budget is limited, start from there.

The return on investment: energy, maintenance, and well-being

The calculation of the return on a lighting system is composed of three items, of which only the first appears on the bill.

Energy: savings depend on the replaced technology. Switching from halogen to LED typically saves 80-85% of energy; from fluorescent to LED, 40-55%; from a first-generation LED to a current one, 20-30%. At 0.25 €/kWh, every 100 W eliminated for 2,000 hours a year is worth 50 euros annually.

Maintenance: an L80 source at 50,000 hours, in domestic use of 1,000 hours a year, theoretically lasts fifty years. In practice, what breaks is almost always the driver: hence the importance of choosing it well and making it accessible for replacement. A system designed with an inspectable driver has maintenance costs a fraction of one with a driver embedded in the false ceiling.

Well-being and productivity: it is the most difficult item to quantify and the largest. Even a prudent estimate, like the one in Table 5, shows that it dominates the other two by one or two orders of magnitude. It is not a marketing argument: it is simply the reflection of the fact that the cost of people's time is much higher than the cost of the energy that illuminates them.

13. Glossary of visual comfort

Technical terms recur in all product data sheets and in all standards. This glossary collects those useful for evaluating lighting from the point of view of eye health, with brief and operational definitions.

14. Frequently asked questions

We collect here the questions we receive most often from the technical service and customers, with synthetic and verifiable answers. Click on each question to read the answer.

Light is a medical device that no one calls that

At the end of this journey, the message is reduced to a few lines. Eyes are not ruined because of a lightbulb: they get tired every day, in a cumulative and silent way, when the lighting environment forces them to compensate. Compensating for an excessive contrast, an invisible oscillation, an incomplete spectrum, a shadow in the wrong place.

The good news is that all these factors are measurable and all are correctable, often with interventions of just a few tens of euros. One meter of LED strip behind a monitor changes the day of those who work on it. An anti-flicker driver instead of a generic power supply eliminates a headache that was attributed to stress. A profile with a diffuser transforms a technical source into a light that you can look at.

The question to ask in front of any system is not "how much does it consume" nor "how much does it cost", but "is this light working for or against my eyes?". If the answer is not immediate, you now have the tools to measure it: a lux meter or an app, your smartphone camera, Table 26 of quick diagnostics, and the fifteen-point checklist.

Choosing components with declared technical data (real flux, CRI and R9, modulation, SDCM, driver ripple, diffuser transmission) is the only way to know in advance what will enter your eyes for the next fifty thousand hours.

The information contained in this article is for technical and informational purposes and does not replace the advice of an ophthalmologist or optometrist. In the presence of persistent visual disturbances, it is advisable to consult a specialist.

This article was developed with the support of artificial intelligence and subsequently revised, corrected, and validated by the Ledpoint.it technical team, which guarantees its reliability and compliance with official sources.
