Led strip built with Honglitronic leds, version HL-AF-5060H271BU46FU79GC-S1-T1 . For further information please consult LED datasheet.

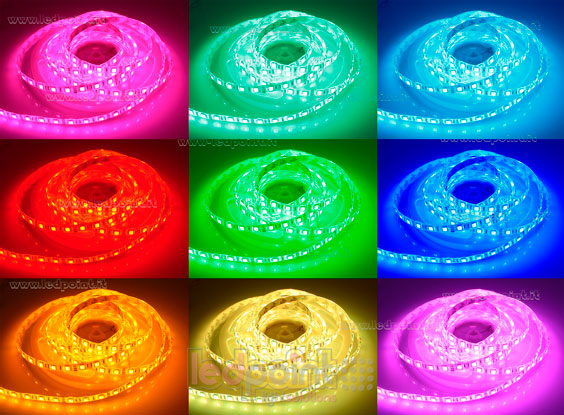

D52-RGB-60522 is a flexible waterproof led strip with 3M self-adhesive on its back side for quick installation even on curve surfaces.
Tech specs:
- 5050 LED
- Lumens (white): 350 lm/m
- Efficiency (white): 25 lm/W
- Strip LED colour temperature: RGB
- Power consumption 14,4 W/m (72W), 24V (+0%, -15%)
- Dimmable LED strip with 300 leds (60 leds/m)
- Led colour temperature: RGB
- Led strip cuttable every 6 leds (every 10cm). Length 5 m, width 10 mm, height 3 mm
- Water protection: IP53 (known as IP65 in the commercial field)
- PCB colour: White
- Double sided adhesive tape type: 3M 9472LE
- 10 cm power input cables on both sides of the strip
- Working temperature: -10°C ~ +50°C
- Removable protection of the waterproof coating (see below)
These LED strips featuring epoxy coating against water are not recommended in case of prolonged use.
Led strip power consumption depends on how it is powered. For example, if we connect a 5 meter strip powered only on one side, its power consumption decreases by about 15%. The quantity of light generated by strips may slightly vary depending on the power supply tension, how they are powered and the temperature.
ATTENTION: it is highly recommended to use LED strips with metal heatsinks in order to dissipate the amount of heat generated. It would be much better to use anodized aluminium heatsinks. Do not use electrically conductive heatsinks to avoid short circuits that can damage the LED strip.
Strip's protecion: all our waterproof
led strips with white or black PCB have a removable protective film which is very important during the installation process. In fact, in new strips the silicone coating is a bit sticky. In normal strips this could gets the protection dirty during the installation, especially in dusty environments. After the installation it is possible to remove the film. The silicone coating will dry fully in a couple of weeks.
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
