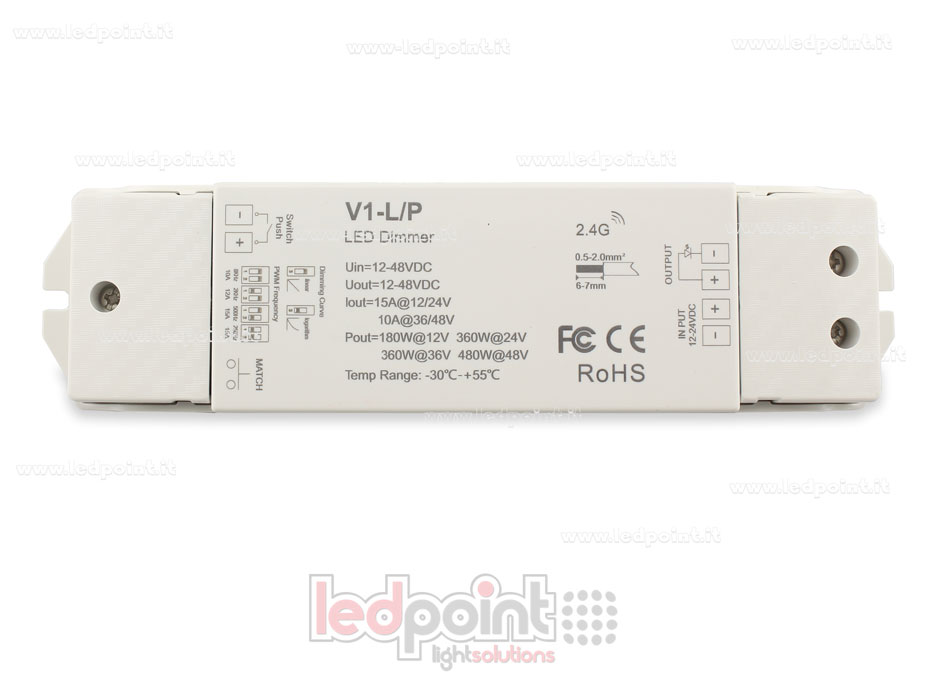

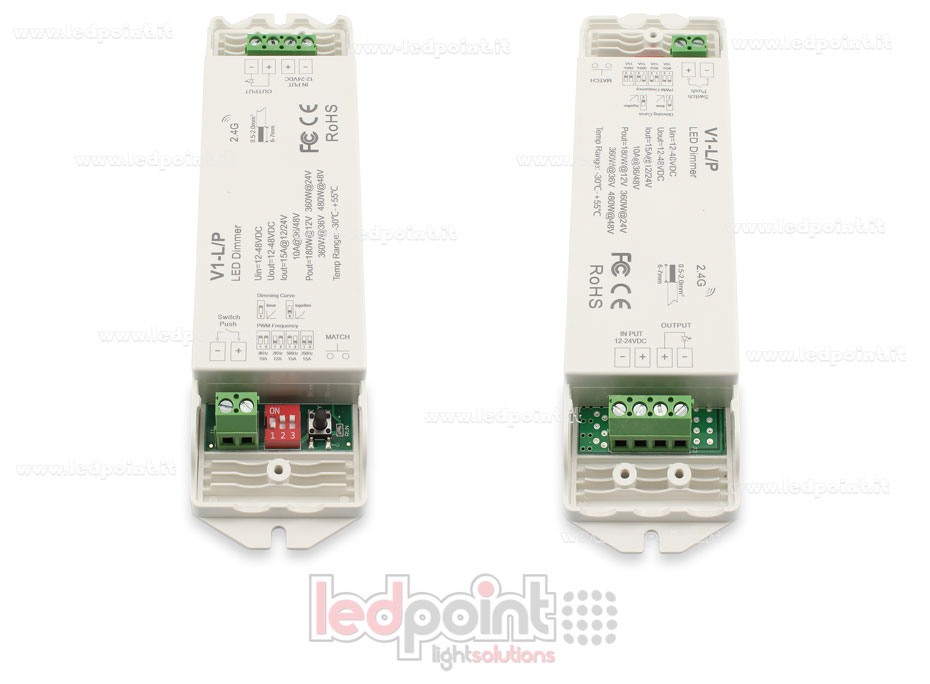

SKYDANCE SYSTEMS CATALOGUE FAQ RF 1 channel single-colour dimmer receiver. It can be matched to all RF single-colour remote controls (up to 10 remote controls). It is possible to connect an external push switch to turn on/off and dim the light. It is possible to select the logarithmic or linear dimming curve and the PWM frequency between 500Hz, 2kHz, 8KHz or 16kHz.
For more information, please log in to the website and consult the manual, if available.
Technical parameters:
- Input voltage: 12-48V
- Load current: 10/15A
- Channels: 1
- Max power: 180-480W
- Max total output: 15A
- Input signal: RF 2.4GHz + Push Dim
- Output signal: CV PWM
- Connector: terminal block
- Working temperature: -30°C ~ +55°C
- Dimensions: 175x45x27 mm
ATTENTION: Wi-Fi connection can cause interference with the controller and, as a consequence, significantly reduce its range.
The use of shielded cables is recommended when installed near to cables plugged into the mains.
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
