Led strip built with Honglitronic leds, version HL-AF-5060H271BU46FU79GC-S1-T1 . For further information please consult LED datasheet.

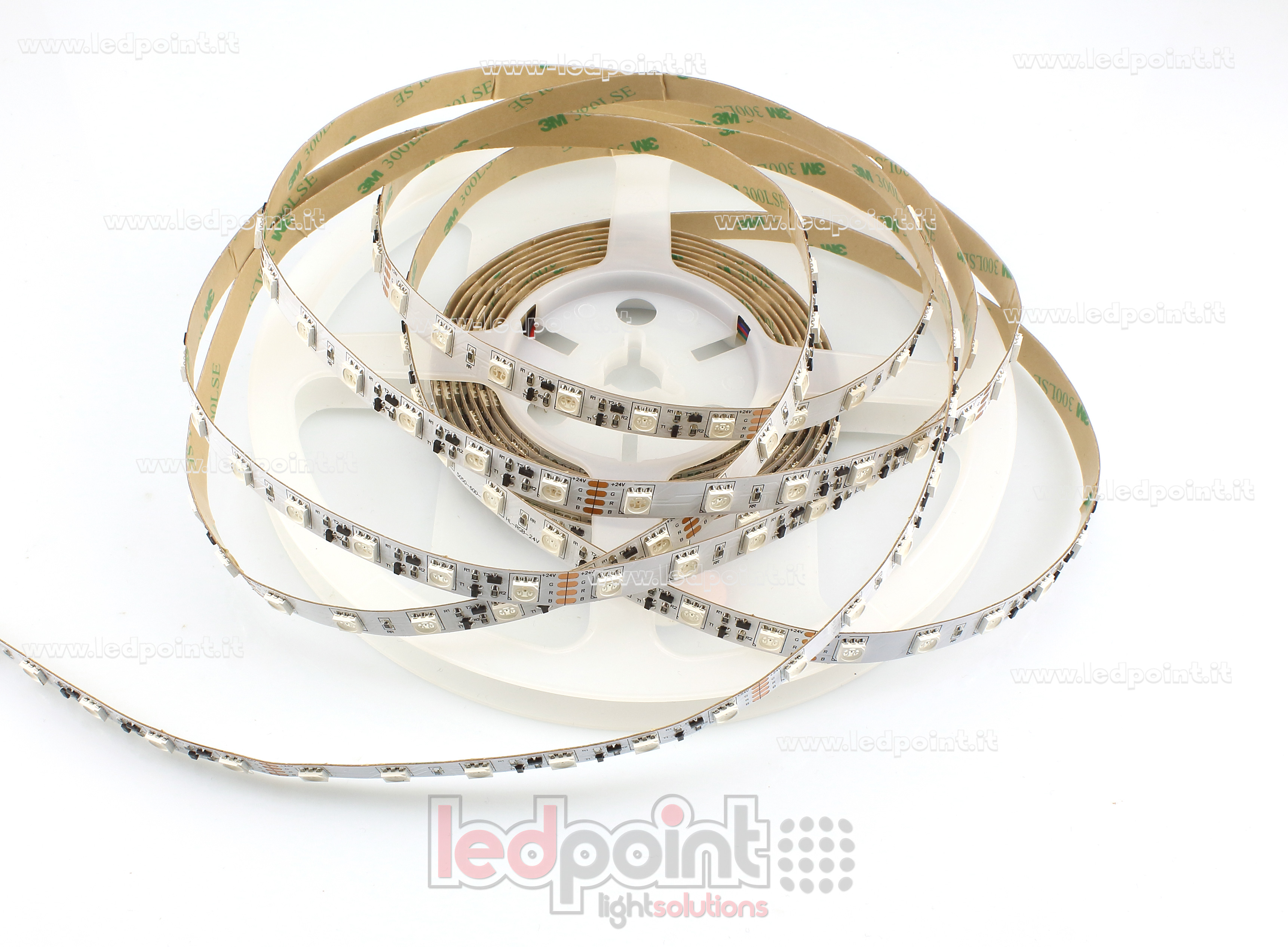

The led strip F52-RGB-060522A is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces. Features:
- 5050 LED
- Lumens per meter: 360 lm
- Strip LED colour temperature: RGB
- Dimmable LED strip with 300 led (60 led/m)
- Input voltage 24V (+0%, -15%), power consumption 72W (14,4 W/m)
- Led strip cuttable every 6 leds (every 10cm). Length 5 m, width 10 mm, height 2,5 mm
- PCB colour: White
- Double sided adhesive tape type: 3M 9495LE
- 10 cm power input cables on both sides of the strip
Product code: F52-RGB-060522A
Led strip power consumption depends on how it is powered. For example, if we connect a 5 meter strip powered only on one side, its power consumption decreases by about 15%. The quantity of light generated by strips may slightly vary depending on the power supply tension, how they are powered and the temperature.
ATTENTION: it is highly recommended to use LED strips with metal heatsinks in order to dissipate the amount of heat generated. It would be much better to use anodized aluminium heatsinks. Do not use electrically conductive heatsinks to avoid short circuits that can damage the LED strip.

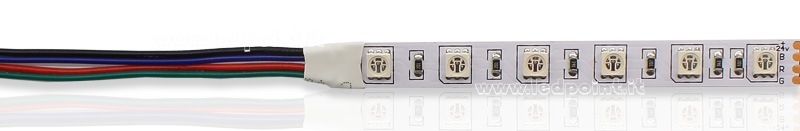

The image is just an example and has the aim to show cables of LED strips F52-RGB-060522A.
