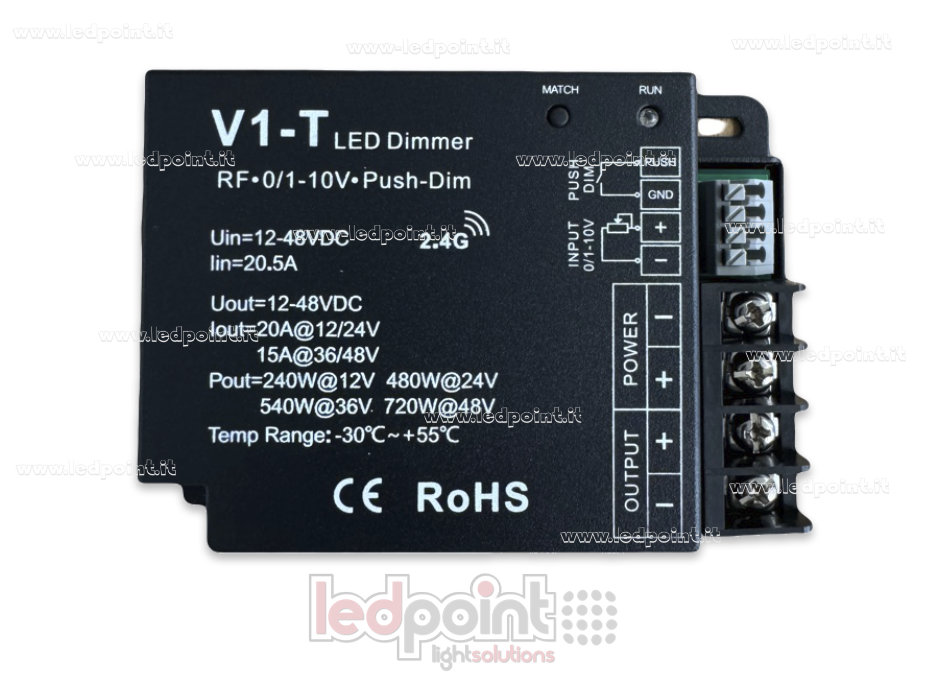

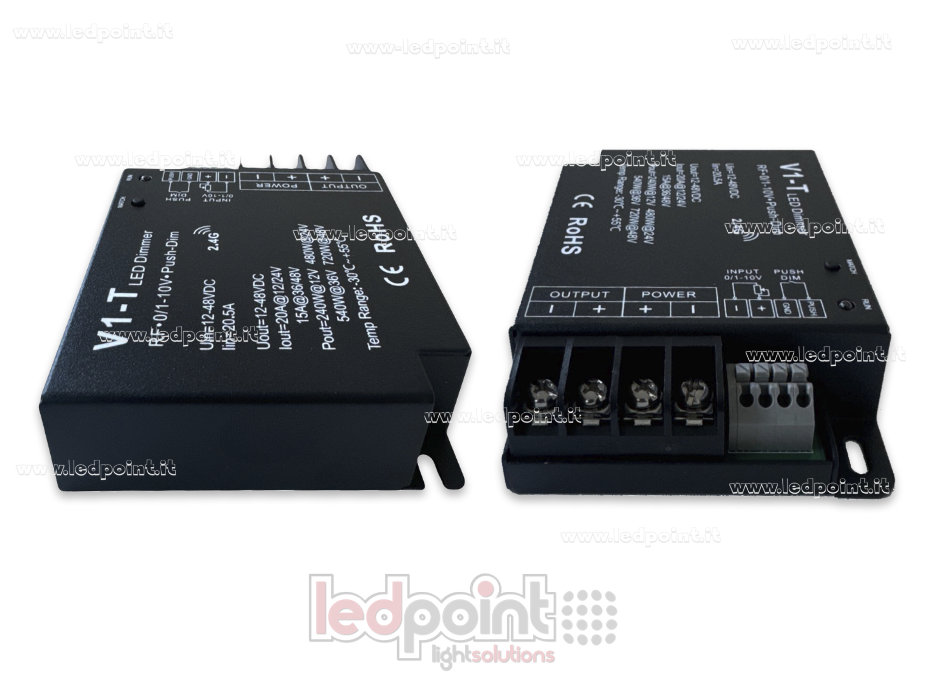

SKYDANCE SYSTEMS CATALOGUE FAQ RF, 0/1-10V 3 in 1 single-colour push-dim dimmer receiver. 1 channel of 20A at 12-24V. It can be matched with all RF single-colour remote controls. One receiver can be matched up to 10 remote controls. It is possible to connect to an external push switch to turn on/off and dim the light.
For more information, please log in to the website and consult the manual, if available.
Technical parameters:
- Input voltage: 12-24V
- Load current: 20A
- Channels: 1
- Max power: 240-480W
- Max total output: 20A
- Input signal: RF 2.4GHz + 0/1-10V + Push Dim
- Output signal: CV PWM
- Connector: terminal block
- Working temperature: -30°C ~ +55°C
- Dimensions: 107x75x24,5 mm
By restoring the power supply after a power failure affecting the controller, the LED strip (even if turned off) will turn on.
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
