PCB TYPE IP GRADE DOUBLE SIDED TAPE SHADES OF WHITE TECHNICAL DETAILS CATALOGUE SMD FAQ
The innovation of LED technology has allowed to produce diodes emitting a light that imitates natural light. This leads to a reduction in the emission of blue light that is common in traditional LEDs and, as a consequence, to lighting solutions that enhance our wellbeing. The light emitted by these LEDs reduces eye fatigue, supports a favorable circadian rhythm and improves the sharpness of the colors.
Tech specs:
- 2835 LED
- Lumens: 1550 lm/m
- Efficiency: 100 lm/W
- Strip LED colour temperature: 3000K 3step
- Power consumption 17 W/m (85W), 24V (±1%),
- Dimmable LED strip with 640 leds (128 leds/m)
- Led strip cuttable every 8 leds (every 6,25cm). Length 5 m, width 8 mm, height 1,5 mm
- PCB colour: White
- Double sided adhesive tape type: 3M 9495LE
- 10 cm power input cables on both sides of the strip
- Working temperature: -10°C ~ +45°C

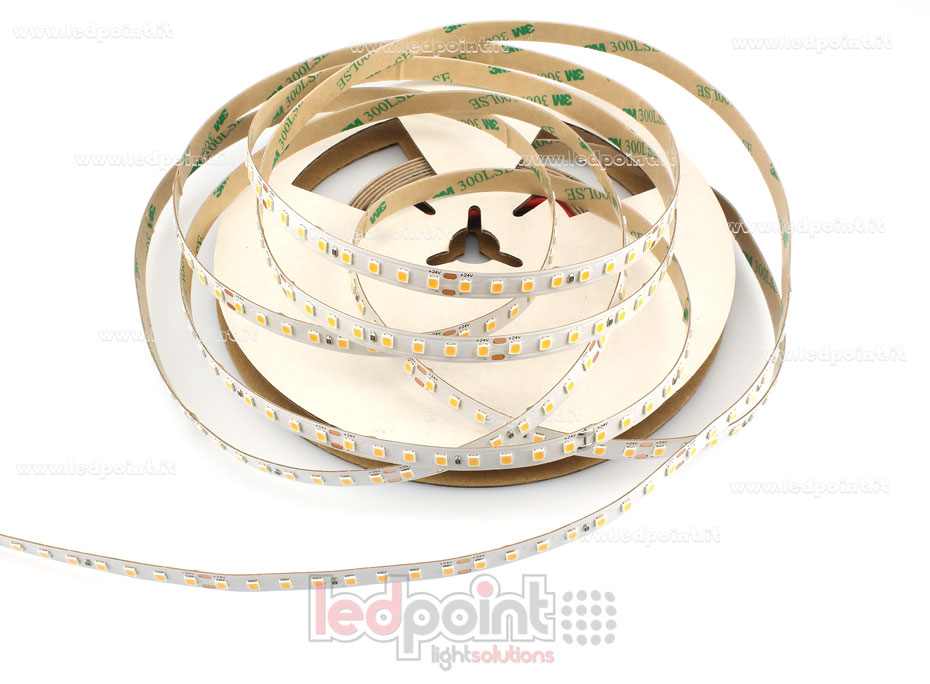

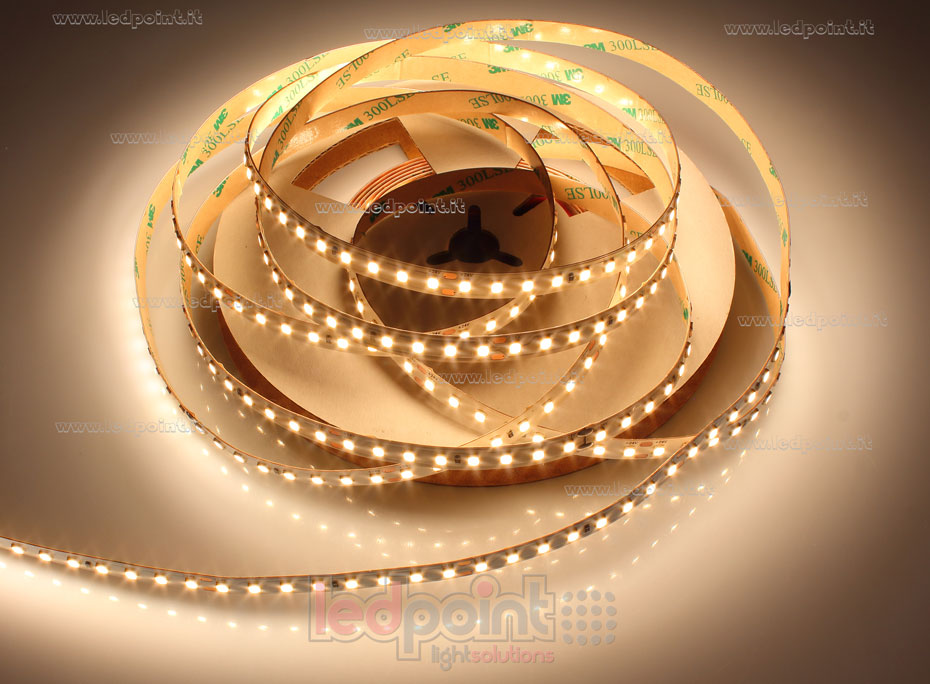

LED STRIP TURNED OFF'S ZOOM LED STRIP TURNED ON'S ZOOM
Led strip power consumption depends on how it is powered. For example, if we connect a 5 meter strip powered only on one side, its power consumption decreases by about 15%. The quantity of light generated by strips may slightly vary depending on the power supply tension, how they are powered and the temperature.
ATTENTION: it is highly recommended to use LED strips with metal heatsinks in order to dissipate the amount of heat generated. It would be much better to use anodized aluminium heatsinks. Do not use electrically conductive heatsinks to avoid short circuits that can damage the LED strip.

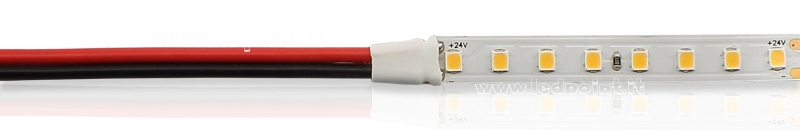

Purely indicative image to show the wiring of F52-30s-x1288U2/17 strips.
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
