PCB TYPE IP GRADE DOUBLE SIDED TAPE SHADES OF WHITE TECHNICAL DETAILS CATALOGUE SMD FAQ
This led strip is flexible with an adhesive on its back side for quick installation even on curved surfaces. Not suitable for painted surfaces
Tech specs:
- Lumens: 480 lm/m
- Efficiency: 110 lm/W
- Strip LED colour temperature: 4000-4500K
- Power consumption 4,8 W/m (24W), 12V (+0%, -15%)
- Dimmable LED strip with 300 leds (60 leds/m)
- Led strip cuttable every 3 leds (every 5cm). Length 5 m, width 8 mm, height 2 mm
- PCB colour: White
- Double sided adhesive tape type: 3M 9080HL
- Working temperature: -10°C ~ +45°C

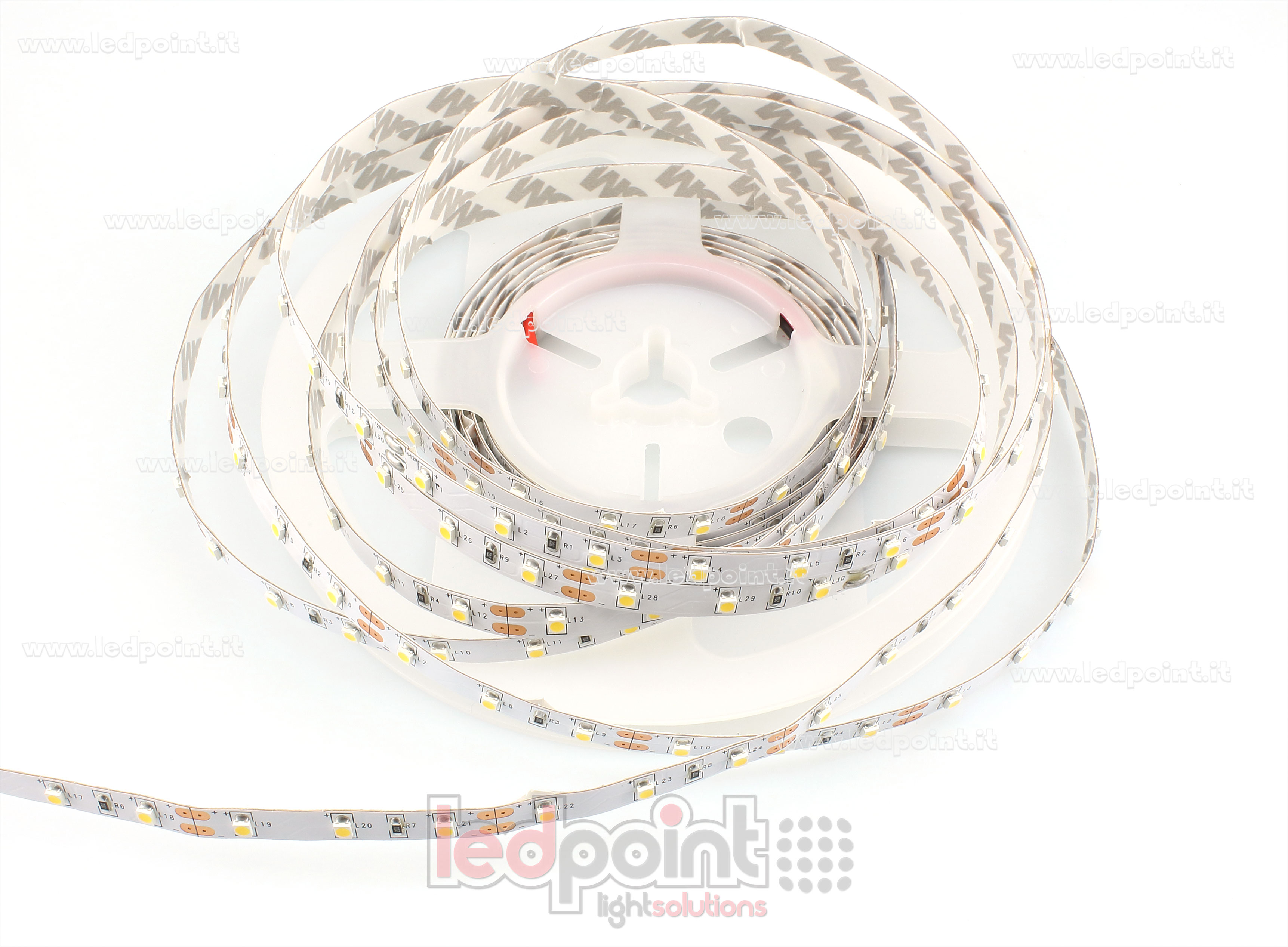

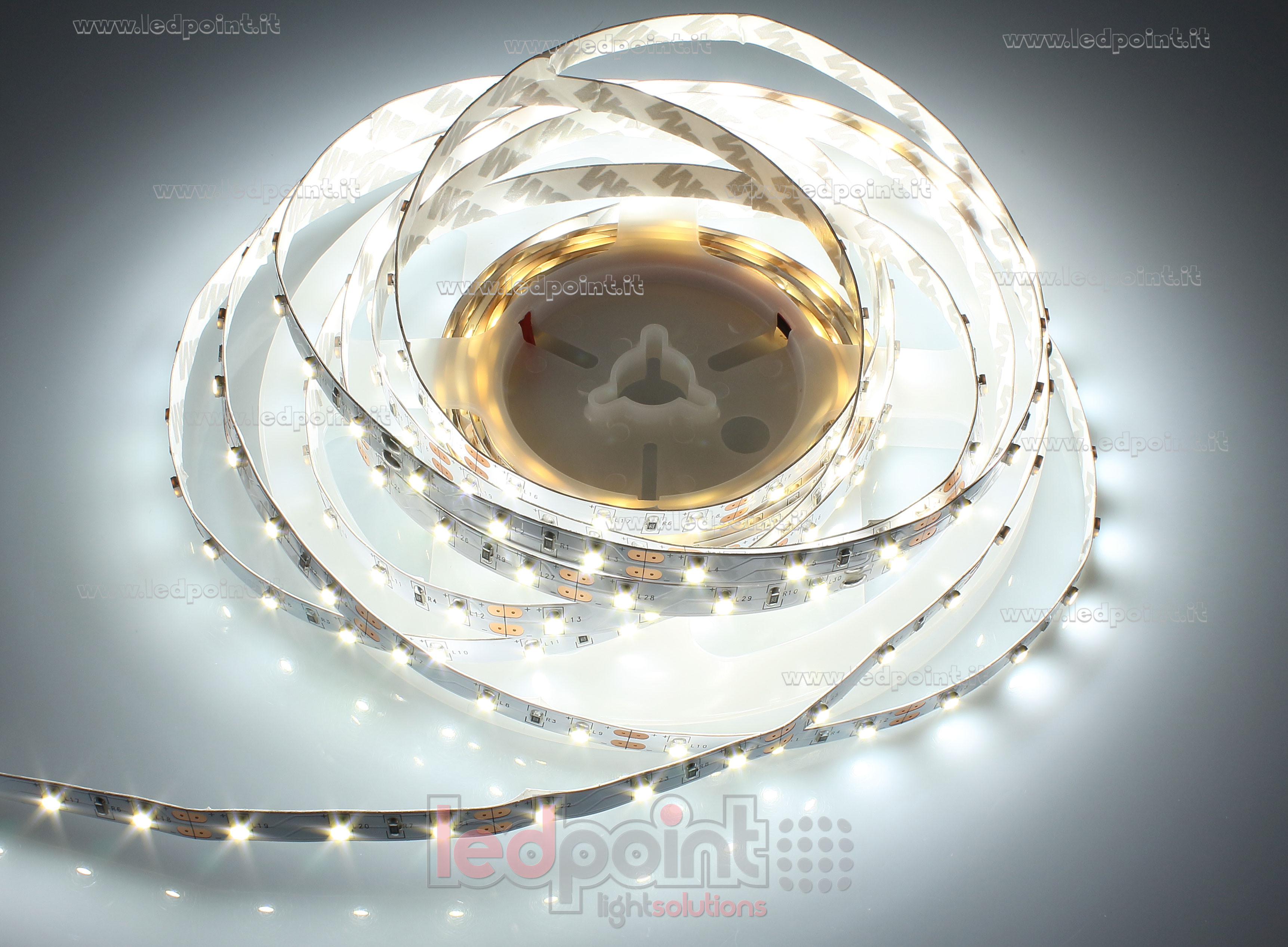

LED STRIP TURNED OFF'S ZOOM LED STRIP TURNED ON'S ZOOM
Led strip power consumption depends on how it is powered. For example, if we connect a 5 meter strip powered only on one side, its power consumption decreases by about 15%. The quantity of light generated by strips may slightly vary depending on the power supply tension, how they are powered and the temperature.
ATTENTION: it is highly recommended to use LED strips with metal heatsinks in order to dissipate the amount of heat generated. It would be much better to use anodized aluminium heatsinks. Do not use electrically conductive heatsinks to avoid short circuits that can damage the LED strip.
Purely indicative image to show the wiring of F52-400-060321b1 strips.
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
