The led strip L252-RGBT-07251H is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.
Tech specs:
- 5050 LED
- Lumens: 400 lm/m (estimated value)
- Efficiency: 35 lm/W
- Strip LED colour temperature: RGB
- Power consumption 12 W/m (300W), 230V (+0%, -15%)
- LED strip with 1800 led (72 led/m)

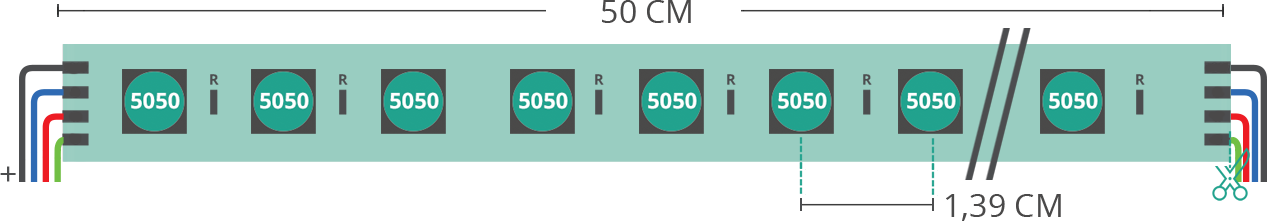

- Led strip cuttable every 36 leds (every 50cm). Length 25 m, width 12 mm, height 4,5 mm
- PCB colour: Transparent
- Double sided adhesive tape type: 3M 9495LE
- Working temperature: -10°C ~ +50°C
For a perfect adhesion of the double-sided tape the temperature both of the LED strip and the surface where it is installed should be between 21 and 38°C. The LED strip will be totally fixed after 72 hours approximately. The double-sided adhesive does not guarantee a seal on painted surfaces.
WARNING: STRIP FOR OUTDOOR USE. 230V strips are subject to flickering as they are powered directly from the network voltage.
Led strip power consumption depends on how it is powered. For example, if we connect a 5 meter strip powered only on one side, its power consumption decreases by about 15%. The quantity of light generated by strips may slightly vary depending on the power supply tension, how they are powered and the temperature.

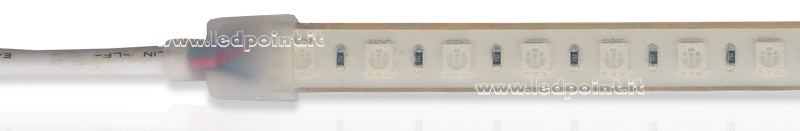

Purely indicative image to show the wiring of L252-RGBT-07251H strips.
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
