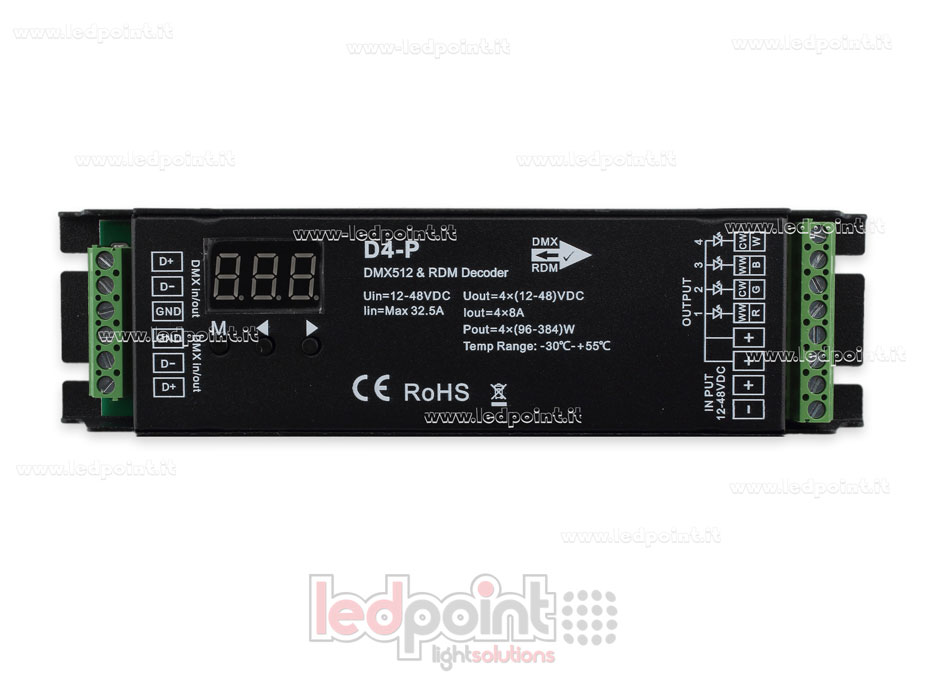

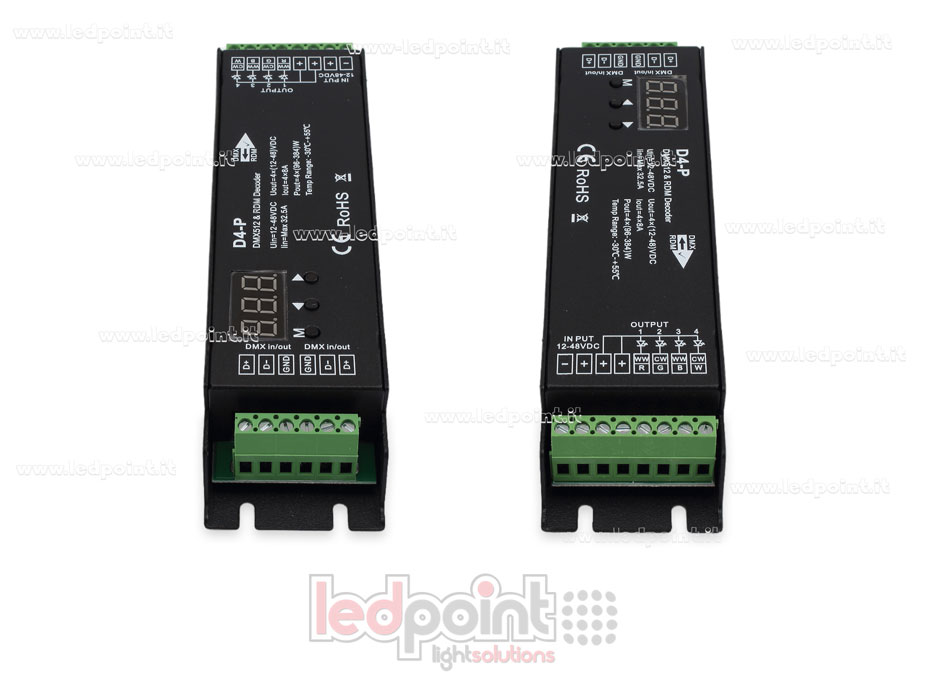

SKYDANCE SYSTEMS CATALOGUE FAQ 12-36V constant voltage DMX decoder with 4 channels of 8A each one. Equipped with digital display and keys to set the decoding starting address. Terminal block signal port.
For more information, please log in to the website and consult the manual, if available.
Technical parameters:
- Input voltage: 12-48V
- Load current: 8A
- Channels: 4
- Max power: 384-1536W
- Max total output: 32A
- Input signal: DMX512
- Output signal: CV PWM
- Connector: terminal block
- Working temperature: -30°C ~ +55°C
- Dimensions: 175x46x32 mm
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
Documentation/Compliance
WEEE Information (Legislative Decree 49/2014) – professional use (Art. 26)
End-of-life disposal (WEEE – B2B).
This product is Electrical and Electronic Equipment intended for professional users and must not be disposed of with municipal waste. The crossed-out wheeled bin symbol indicates the obligation of separate collection. Improper handling (abandonment or unauthorized dismantling) may pose risks to the environment and human health.
For the collection of professional WEEE, please contact the WEEE Producer in Italy or the Consortium indicated below. Users are required to facilitate reuse, recycling, and recovery by delivering the product through the indicated channels.
WEEE Producer in Italy:
Ledpoint s.r.l. – Via Ettore Majorana, 15 – 48018 Faenza (RA) – Italy
WEEE Register No. IT16030000009247 – Consortium ECOLIGHT, Via Giotto 36 – 20145 Milan (MI)
