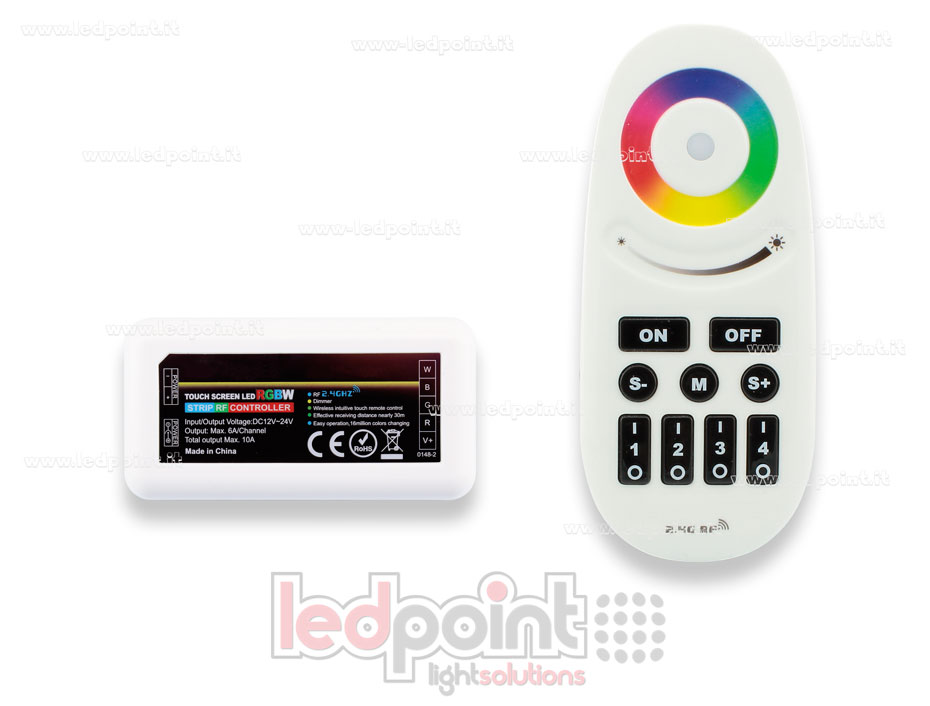

RGBW LED strip controller, 4 zones,12/24V, max. 10A
Memory function: as you switch it on, it restores the last setting selected before the switching off; various effects like stroboscopic light, colour fading, brightness control and colour selection by 'touch' ring. The remote allows to control 4 different zones. White light and RGB are controlled separately.
- Max. power supply voltage: 24V
- Channels: 4
- Channel output current: 5AA
- Max.Load at 12V: 120W
- Max.Load at 24V: 240W

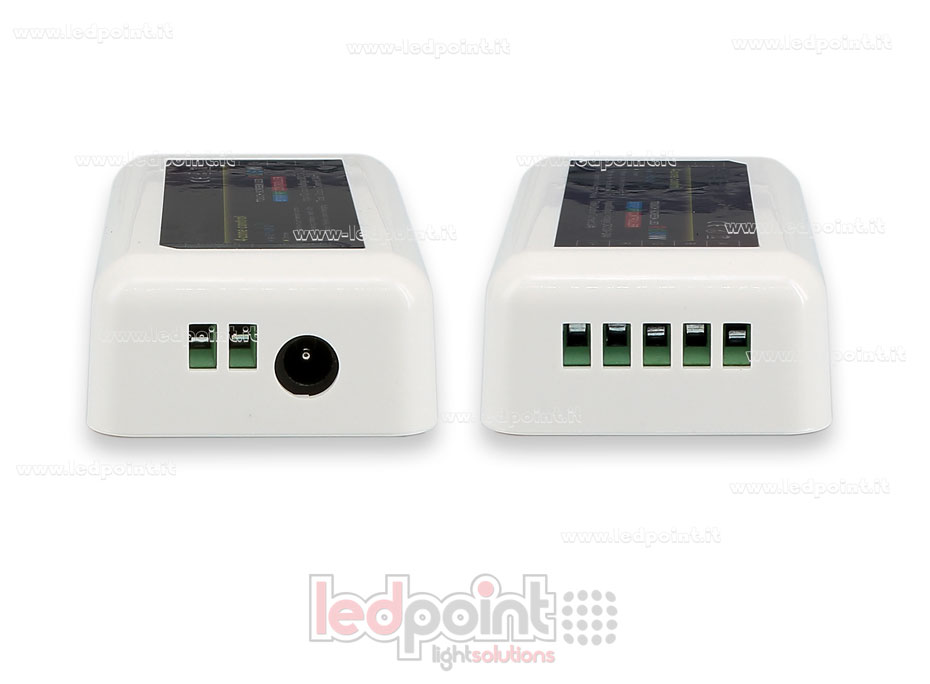

- Receiver sizes: 85x45x23 mm
ATTENTION! The kit (controller-remote) needs to be synchronized. To do it:
- Choose a zone to which You want to assign the light
- Switch off the power supply for the selected zone
- Restore power and press three times the key ‘Zone on’ of the zone you want to associate within three seconds. LEDs will flash three times and will turn off after synchronization
By restoring the power supply after a power failure affecting the controller, the LED strip (even if turned off) will turn on according to the last dimming mode.
ATTENTION: Wi-Fi connection can cause interference with the controller and, as a consequence, significantly reduce its range.
The use of shielded cables is recommended when installed near to cables plugged into the mains.
