LED STRIPS RANGE PCB TYPE IP GRADE DOUBLE SIDED TAPE SHADES OF WHITE TECHNICAL DETAILS CATALOGUE FAQ
Flexible LED strip with double sided tape for a fast installation even on curved surfaces. Thanks to the coating that covers the LEDs, the COB strip allows to create a dot free light with a wide beam angle of 180°.
- Lumens per meter: 345 lm
- Strip LED colour temperature: Blue
- Dimmable LED strip with 2560 led (512 led/m)
- Input voltage 24V (+0%, -15%), power consumption 80W (16 W/m)

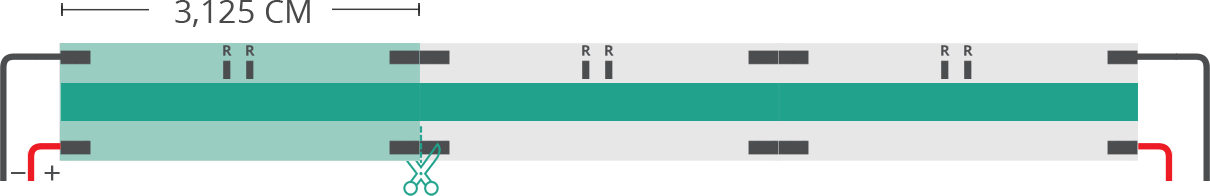

- Led strip cuttable every 16 leds (every 3,125cm). Length 5 m, width 10 mm, height 2 mm
- PCB colour: White
- Double sided adhesive tape type: TESA 4965 Original
- Power input cables on both sides of the strip
Product code: F52-BLU-512O12/16

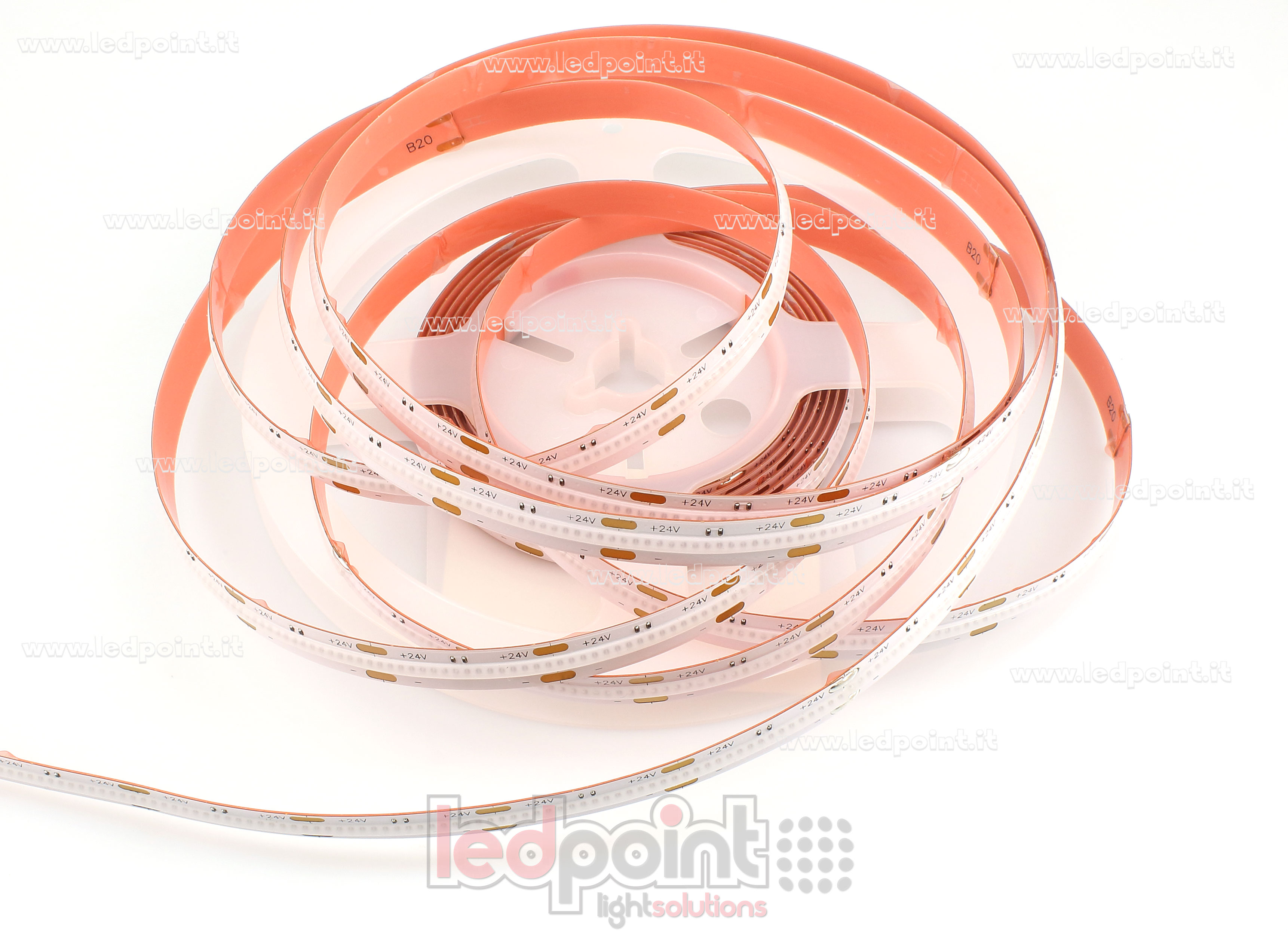

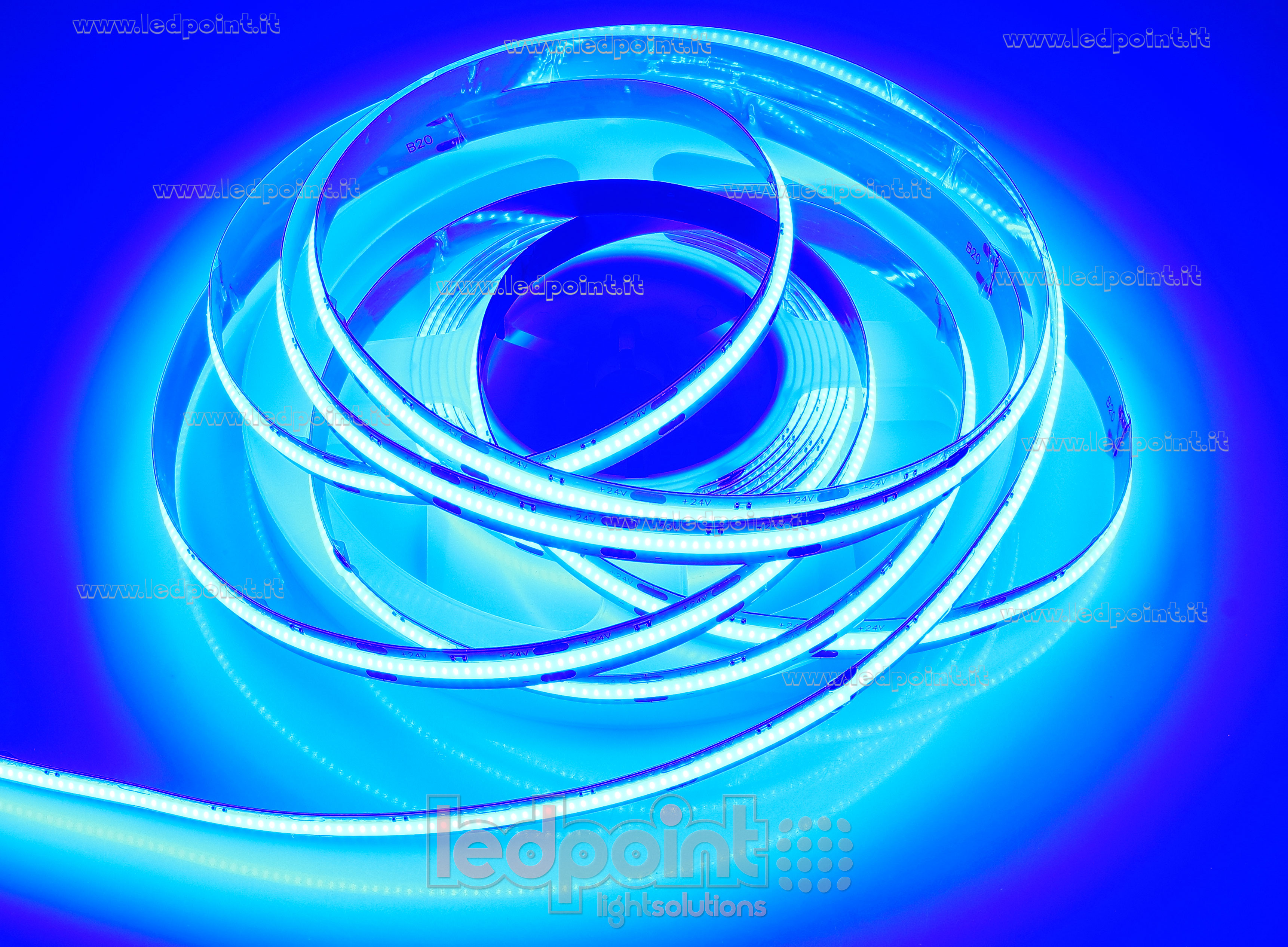

LED STRIP TURNED OFF'S ZOOM LED STRIP TURNED ON'S ZOOM
Led strip power consumption depends on how it is powered. For example, if we connect a 5 meter strip powered only on one side, its power consumption decreases by about 15%. The quantity of light generated by strips may slightly vary depending on the power supply tension, how they are powered and the temperature.
ATTENTION: it is highly recommended to use LED strips with metal heatsinks in order to dissipate the amount of heat generated. It would be much better to use anodized aluminium heatsinks. Do not use electrically conductive heatsinks to avoid short circuits that can damage the LED strip.

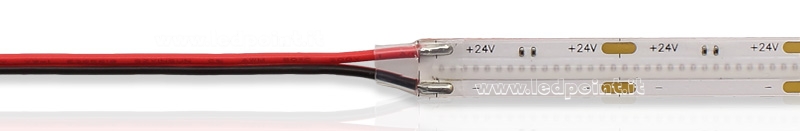

The image is just an example and has the aim to show cables of LED strips F52-BLU-512O12/16.
