The led strip F52-RGB-576OR0 is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.
Tech specs:
- COB LED
- Lumens (white): 195 lm/m
- Efficiency (white): 35 lm/W
- Strip LED colour temperature: RGB
- Power consumption 6 W/m (30W), 5V (+0%, -15%)
- Dimmable LED strip with 2880 chips (576 chips/m)

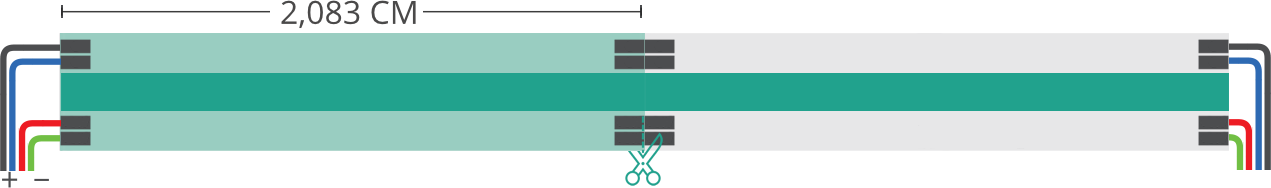

- Led strip cuttable every 12 chips (every 2,083cm). Length 5 m, width 8 mm, height 3 mm
- PCB colour: White
- Double sided adhesive tape type: 3M 9495LE
- 10 cm power input cables on both sides of the strip
- Working temperature: -10°C ~ +45°C
Led strip power consumption depends on how it is powered. For example, if we connect a 5 meter strip powered only on one side, its power consumption decreases by about 15%. The quantity of light generated by strips may slightly vary depending on the power supply tension, how they are powered and the temperature.
ATTENTION: it is highly recommended to use LED strips with metal heatsinks in order to dissipate the amount of heat generated. It would be much better to use anodized aluminium heatsinks. Do not use electrically conductive heatsinks to avoid short circuits that can damage the LED strip.

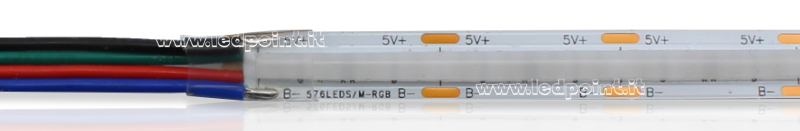

Purely indicative image to show the wiring of F52-RGB-576OR0 strips.
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
