    Manufacturer: Lighting Line

    3-Meters Opal LED Bar – PR-RE16-00 Profile with COB Strip – 7W/m 384LED/m 24V – 1m Single-Ended Power Cable

    Create an account or log in to display prices
    COB LED strip LED strip per meter power consumption: 7 W/m LED strip voltage: 24V
    SKU: CBRE16-00
    Manufacturer part number: ORCBRE16-00
    *
    Availability: In stock

    LUX CALCULATION PROFILES RANGE CATALOGUE FAQ

    View the photometric test


    3-Meters Opal LED Bar – PR-RE16-00 Profile with COB Strip – 7W/m 384LED/m 24V – 1m Single-Ended Power Cable.

    • Led COB
    • Power consumption 7 W/m (21W), 24V (+0%, -15%)
    • Lumens warm white 2700K: 600 lm/m
    • Lumens warm white 3000K: 570 lm/m
    • Lumens white 4000K: 700 lm/m
    • Length 3000 mm, width 5,1 mm, height 8,7 mm
    • Power cables on one side of the bar

    ATTENTION: led strips, end caps, mounting clips and accessories are not included in the price and it is possible to purchase them separately. The length of the profiles and diffusers has a tolerance of +/- 2 mm.

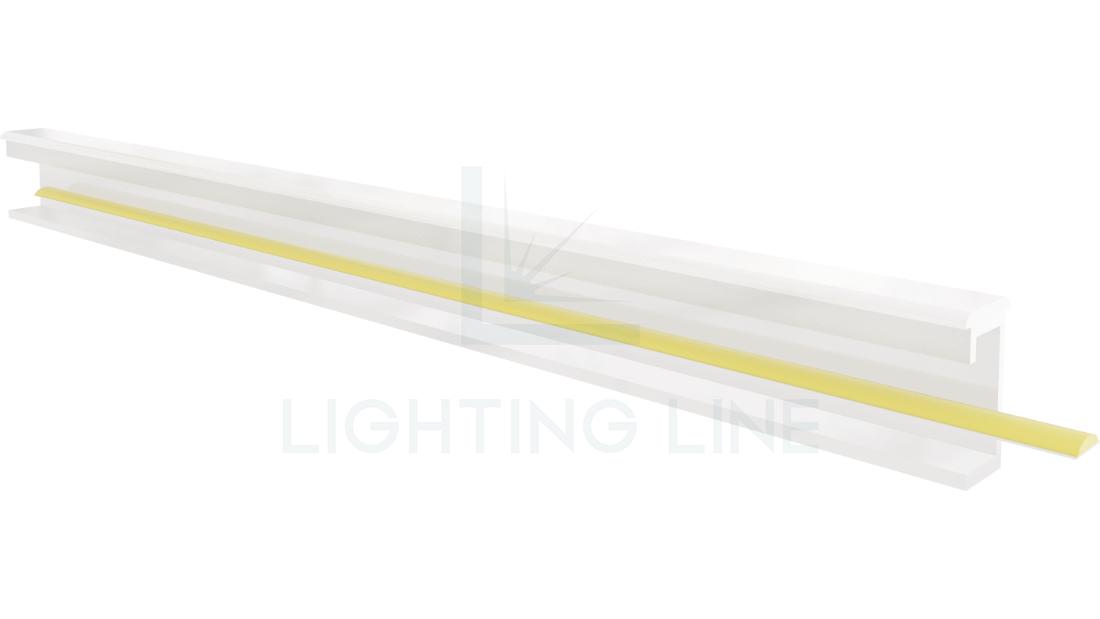

    Led strips profile


    Photometric test


    Photometric test Led strips profile
    Opal diffuser: -77%

    Installation


    Installation led strips profile




    Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.

    Products specifications
    Length3 m
    FloorNo
    WaterproofNo
    RecessedYes
    Suitable PCBUp to 3 mm
    Profile typologyRecessed
