LED strip featuring one warm white circadian violet LED chip and one high CRI cool white LED with light spectrum similar to sun. The colour temperature range is 2700-5000K to ensure the same colour even in different batches of production.
The led strip F52-CCT-2568U4A is flexible and features a double-sided tape on its back side for quick installation even on curved surfaces.
Tech specs:
- 2835 LED
- Lumens warm white 2700K: 2400 lm/m
- Lumens cool white 5000K: 3000 lm/m
- Efficiency warm white 2700K: 100 lm/W
- Efficiency cool white 5000K: 130 lm/W
- Strip LED colour temperature: 2700-5000K
- Power consumption 26 W/m (130W). Real power without CCT controller 52 W/m (260W). Input voltage 48 volt (+0%, -15%)
- Dimmable LED strip with 1280 leds (128+128 leds/m)

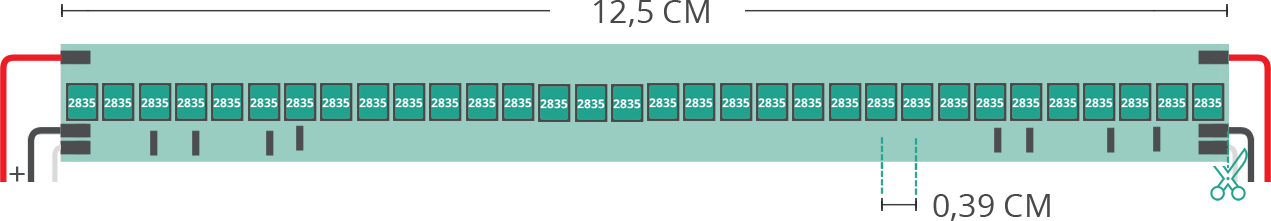

- Led strip cuttable every 32 leds (every 12,5cm). Length 5 m, width 12 mm, height 1,5 mm
- PCB colour: White
- Double sided adhesive tape type: 3M 9495LE
- 10 cm power input cables on both sides of the strip
- IEC/TR 62778:2014 photobiological risk certificate: risk Group 1 when used as light source.
- Working temperature: -10°C ~ +45°C

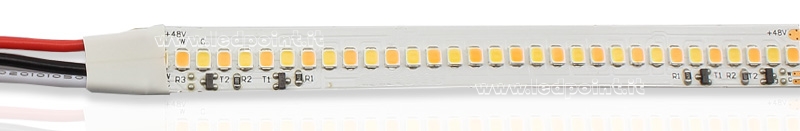

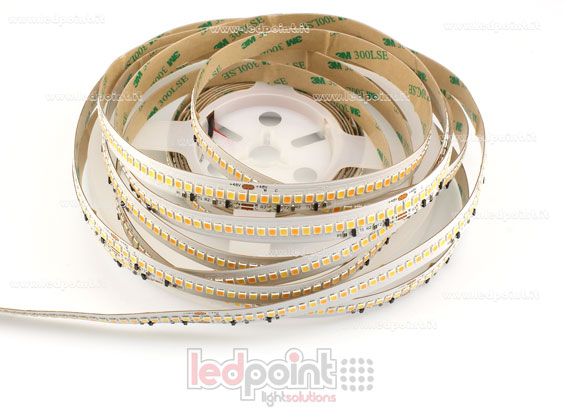

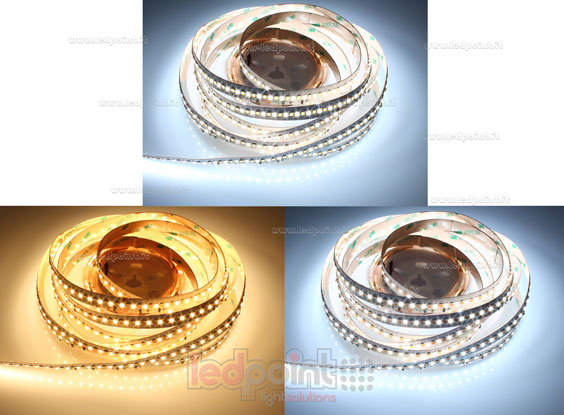

LED STRIP TURNED OFF'S ZOOM LED STRIP TURNED ON'S ZOOM
Led strip power consumption depends on how it is powered. For example, if we connect a 5 meter strip powered only on one side, its power consumption decreases by about 15%. The quantity of light generated by strips may slightly vary depending on the power supply tension, how they are powered and the temperature.
ATTENTION: it is highly recommended to use LED strips with metal heatsinks in order to dissipate the amount of heat generated. It would be much better to use anodized aluminium heatsinks. Do not use electrically conductive heatsinks to avoid short circuits that can damage the LED strip.
Purely indicative image to show the wiring of F52-CCT-2568U4A strips.
Note: Images are for illustrative purposes only. Product specifications, packaging, or aesthetic features may change without prior notice due to batch updates or supply variations.
